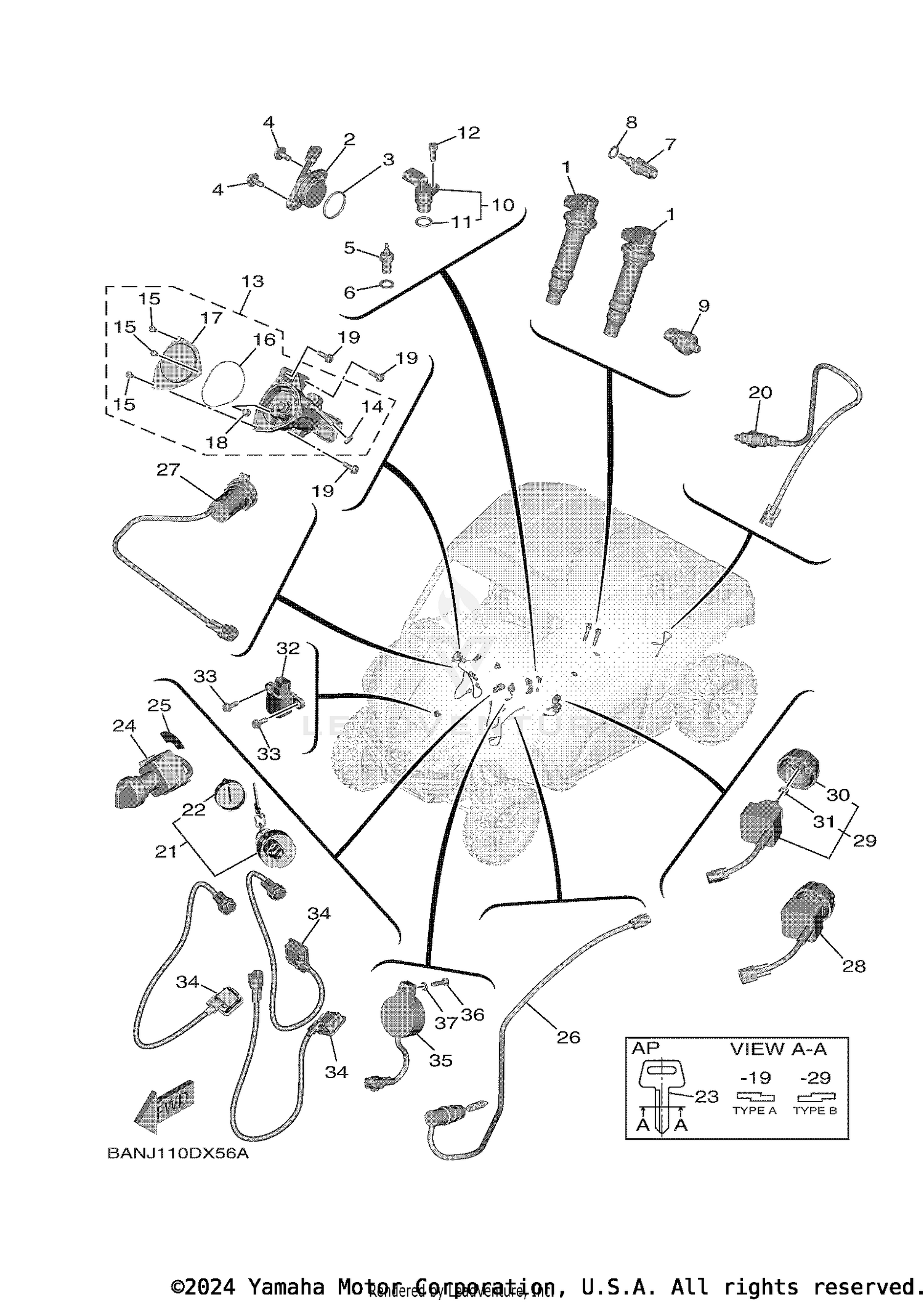

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSY
1WS-82310-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NEUTRAL SWITCH ASS
BG4-82540-00-00
Superseded by BG4-82540-02-00
|
$70.99 | ||
|
Unavailable |
|||
|
#3
O-RING
93210-29196-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, WITH WASHER
90119-06137-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
THERMO UNIT
54P-H3591-00-00
Superseded by 52B-H3591-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-10004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL PRESSURE SWITCH ASSY
8FP-82504-00-00
Superseded by 8FP-82504-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR, SPEED
1TP-83755-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
4D9-81168-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SENSOR UNIT
BG4-8A410-01-00
|
$412.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CABLE ADJUSTING
1S3-14161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98502-04006-00
Superseded by 98517-04006-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
5LP-14147-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER 1
5UG-14293-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, CABLE END
1UY-14155-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, SPECIAL
JW1-F3394-00-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
SENSOR, OXYGEN
1WS-8592A-10-00
|
$242.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
MAIN SWITCH ASSY
1XD-H2510-10-00
Superseded by 1XD-H2510-11-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, KEY
1XD-H2579-10-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
KEY, MAIN SWITCH
1XD-H2511-19-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY, MAIN SWITCH
1XD-H2511-29-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
KEY ASSY
BG4-8250A-00-00
|
$338.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
LABEL
B4J-H2108-00-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
STOP SWITCH ASSY
B90-82530-00-00
Superseded by B90-82530-01-00
|
$57.99 | ||
|
Unavailable |
|||
|
#27
TERMINAL COMP.
B4J-H254B-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SWITCH, LAMP
BG4-82526-02-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SWITCH, SELECT
1XD-87280-01-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
KNOB, SELECT SWITCH
1XD-87285-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING
1XD-87288-00-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
SENSOR, LEAN ANGLE
3B4-82576-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, SPECIAL
JW1-F3394-00-00
|
$1.05 | ||
|
Unavailable |
|||
|
#34
AUXILIARY LIGHT AS
B4J-H5460-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BUZZER
2MB-83383-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
97002-05020-00
Superseded by 97027-05020-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
