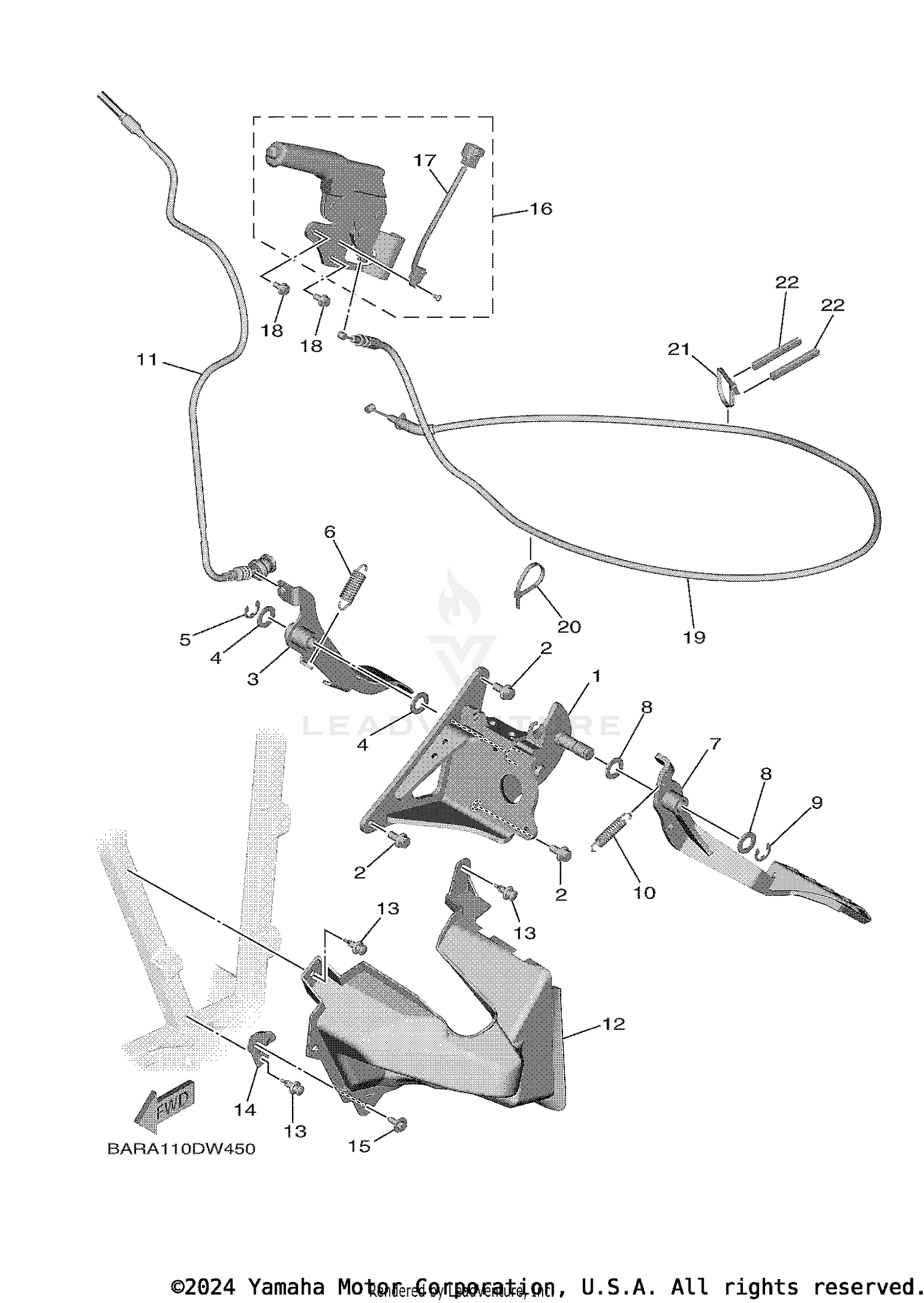

Pedal Wire Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, PEDAL SUPPORT
1XD-F2548-10-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95812-08020-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
ACCEL PEDAL ASSY
B4J-F7801-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-15018-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP, E-TYPE
93430-12008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-23023-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PEDAL, BRAKE
B4J-F7200-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-15018-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
CIRCLIP, E-TYPE
93430-12008-00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
SPRING, TENSION
90506-20192-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CABLE, THROTTLE 1
BG4-26311-02-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
MUD GUARD COMP.
B4J-F1620-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RIVET
90269-07805-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GUSSET 3
BAR-F112A-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
PARKING LEVER ASSY
1XD-F5690-01-00
Superseded by BDW-F5690-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#17
SWITCH COMP.
5UG-H251S-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95812-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WIRE, BRAKE 1
BAR-26341-00-00
Superseded by BAR-26341-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#20
CLAMP
90464-40825-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-48800-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
MOLD, FUEL TANK
31A-24188-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
