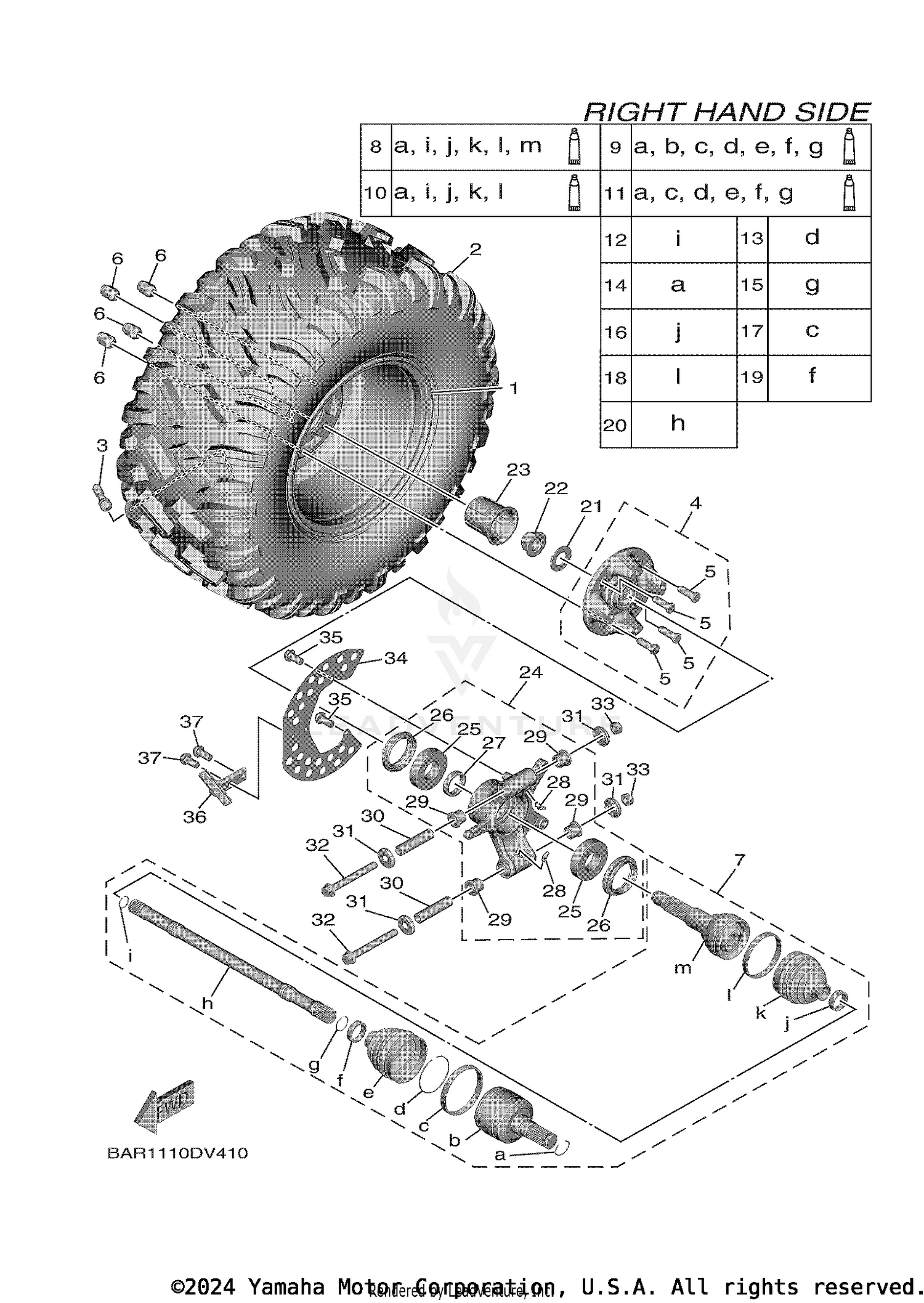

Rear Wheel 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
BG4-F5307-10-00
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (27X11.00R12
94111-12814-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM
93900-00838-00
|
$99,999.99 | ||
|
Unavailable |
|||
|
#4
HUB ASSY 2
2MB-F510D-03-00
Superseded by 2MB-F510D-04-00
|
$100.99 | ||
|
Unavailable |
|||
|
#5
BOLT, SERRATION
90114-12005-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT, CROWN
90176-12801-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
REAR DRIVE SHAFT ASSY
BAR-2531H-01-00
|
$269.99 | ||
|
Unavailable |
|||
|
#8
. .BALL JOINT SET
BG4-2530T-01-00
|
$475.99 | ||
|
Unavailable |
|||
|
#9
. .DOUBLE OFF SET JOINT
BG4-2530V-01-00
|
$542.99 | ||
|
Unavailable |
|||
|
#10
. .BOOT SET (BALL JOINT)
BG4-2530X-01-00
|
$58.99 | ||
|
Unavailable |
|||
|
#11
. .BOOT SET(DOUBLE OFFSET JOINT
2HC-2530Y-01-00
|
$58.99 | ||
|
Unavailable |
|||
|
#12
CIRCLIP
BG4-25185-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, SPRING
2HC-2536E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, SPRING
16B-2536E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SNAP RING
2HC-2512J-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND
BG4-26397-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND
2HC-26293-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BAND
BG4-2639A-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND
2HC-25719-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SHAFT
BAR-259A2-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-25023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-24801-00
Superseded by 90179-24006-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, WHEEL
2MB-F512A-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
REAR KNUCKLE ASSY.
1XD-F532F-21-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93306-20725-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93106-50002-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-35007-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NIPPLE, GREASE
93700-06009-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH, SOLID
90381-18005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-12N54-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, THRUST 1
1XD-23517-00-00
Superseded by 1XD-23517-01-00
|
$10.99 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE
90105-12089-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, SELF-LOCKING
90185-12010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
RING, WHEEL 1
1XD-F514A-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, BUTTON HEAD
92012-06012-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLATE, GUIDE 2
1XD-F2342-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, BUTTON HEAD
92012-06012-00
|
$4.70 | ||
|
Unavailable |
|||
