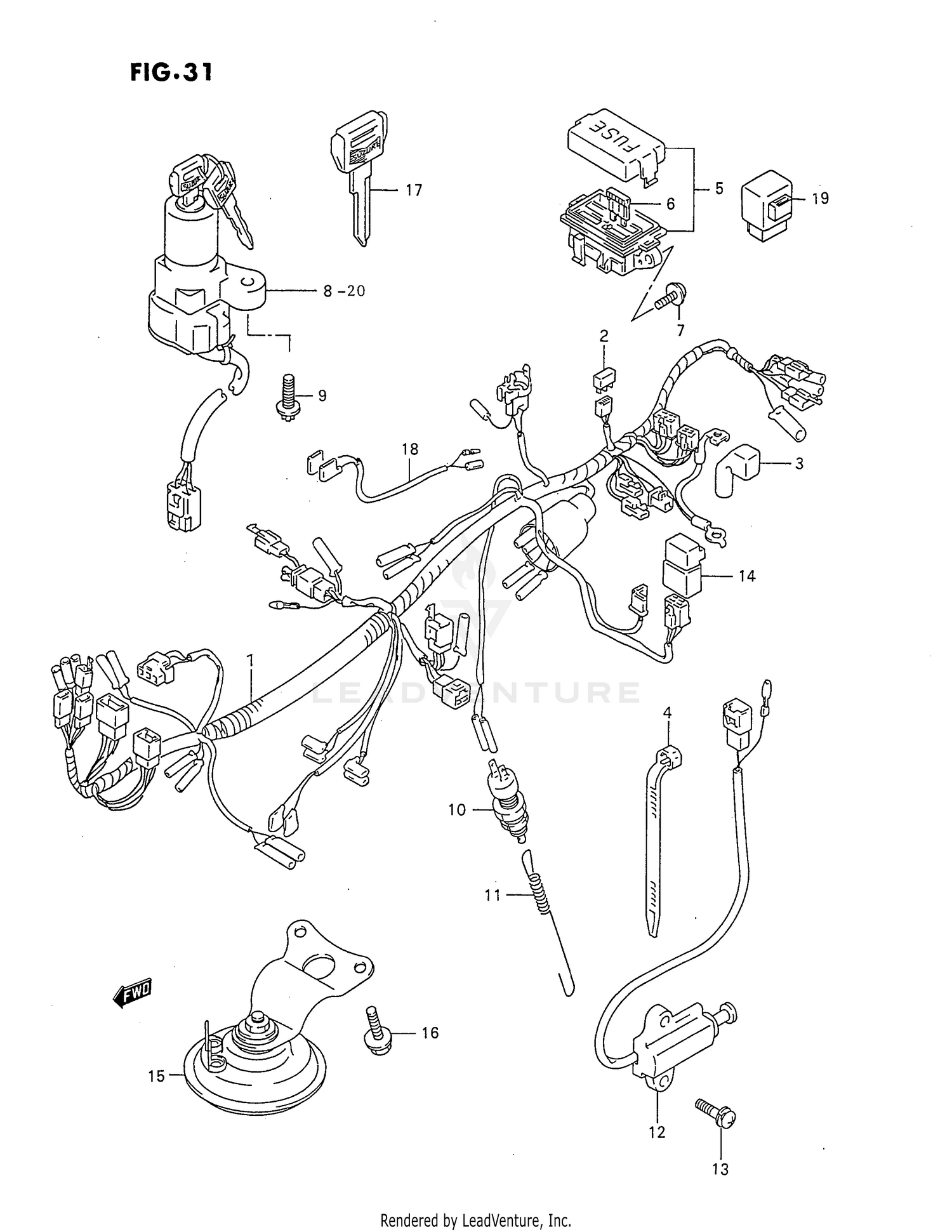

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-20C60
|
$203.34 | ||
|
Unavailable |
|||
|
#1
HARNESS, WIRING
36610-20C50
|
$211.95 | ||
|
Unavailable |
|||
|
#2
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, BATTERY PLUS TERMINAL
33624-43500
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
09407-18403
Superseded by 09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUSE BOX ASSY
36740-10D10
|
$49.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE (10A)
09481-10101
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
.FUSE (25A)
09481-25101
Superseded by 09481-25103
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
LOCK ASSY,STEER
37100-26D02
Superseded by 37100-26D04
|
$171.18 | ||
|
Unavailable |
|||
|
#9
BOLT
09139-06026
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY, STOP LAMP
37740-24A00
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
09443-06005
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH ASSY,SID
37840-44X50
Superseded by 37840-44X52
|
$75.69 | ||
|
Unavailable |
|||
|
#13
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY ASSY, SIDE STAND
38740-24X50
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
HORN ASSY
38500-19C01
|
$62.52 | ||
|
Unavailable |
|||
|
#16
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
KEY, BLANK
37146-26D10
|
$56.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE, CLUTCH SWITCH
36852-19D00
|
$14.00 | ||
|
Unavailable |
|||
|
#19
CONTROLLER ASSY, FAN MOTOR
38870-48B00
|
$210.82 | ||
|
Available to order. Add to View Price |
|||
