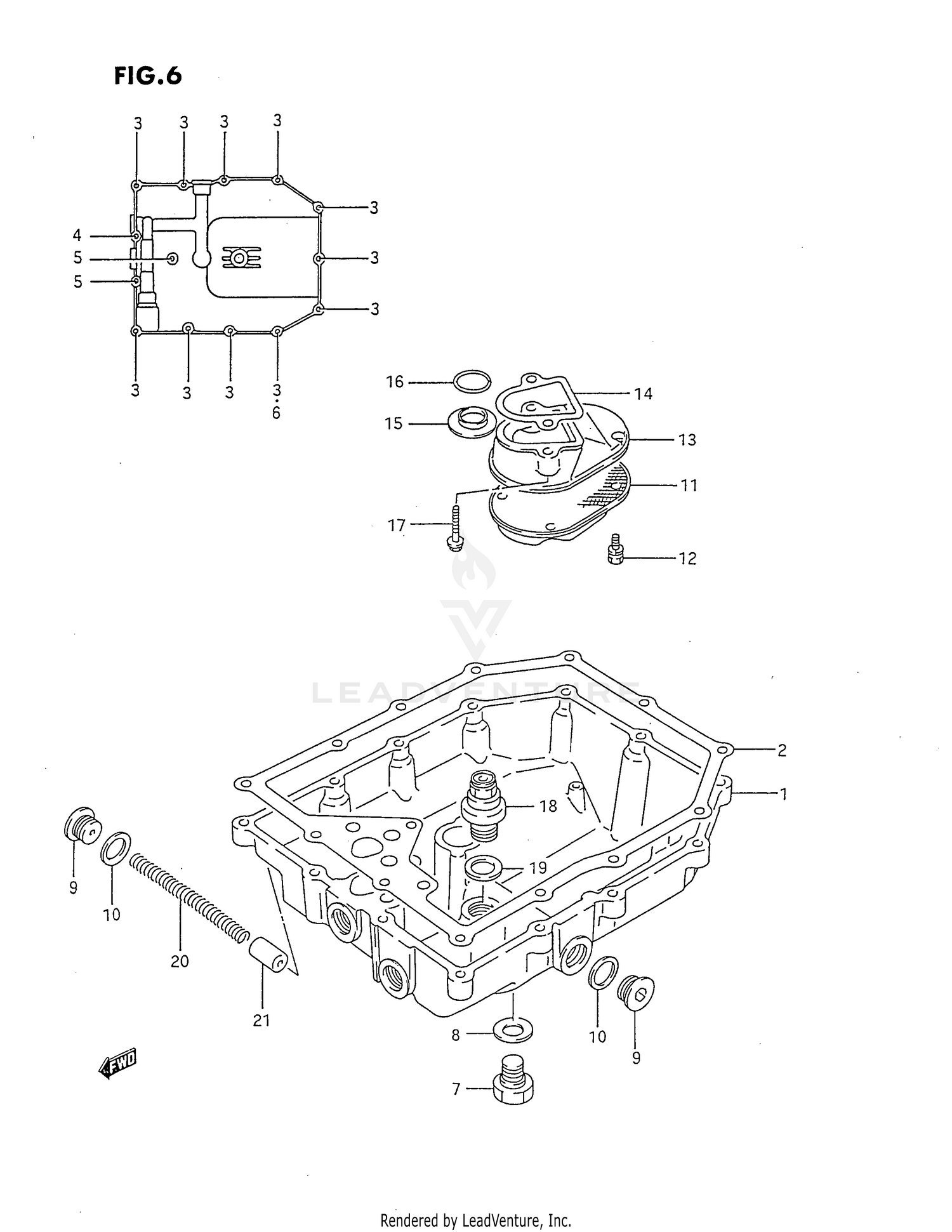

Oil Pan Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN, OIL
11511-20C00
|
$197.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
O RING, OIL PAN
11489-27A20
Superseded by 11489-27A21
|
$21.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-06253
Superseded by 01547-0625B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-06503
Superseded by 01547-0650B
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-06453
Superseded by 01547-0645B
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
09168-06024
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG (MAGNETO)
09247-14001
Superseded by 09247-14002
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#9
PLUG, OIL DRAIN
09248-16010
Superseded by 09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
09168-16002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
STRAINER, ENGINE OIL
16520-17C00
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01570-06123
Superseded by 01570-0612A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR, STRAINER
16525-17C00
|
$23.61 | ||
|
Unavailable |
|||
|
#14
GASKET, OIL STR PROTECTOR
16528-27A20
Superseded by 16528-27A21
|
$8.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, OUTLET
16529-27A01
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING (D:3.2,ID:17.8)
09280-18009
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01550-06253
Superseded by 01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE ASSY, OIL RELIEF
16440-17C01
Superseded by 16440-17C10
|
$75.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
09168-16002
|
$2.37 | ||
|
Unavailable |
|||
|
#20
SPRING
09440-09027
|
$4.53 | ||
|
Unavailable |
|||
|
#21
PLUNGER, OIL CONTROL
16442-34301
|
$32.40 | ||
|
Available to order. Add to View Price |
|||
