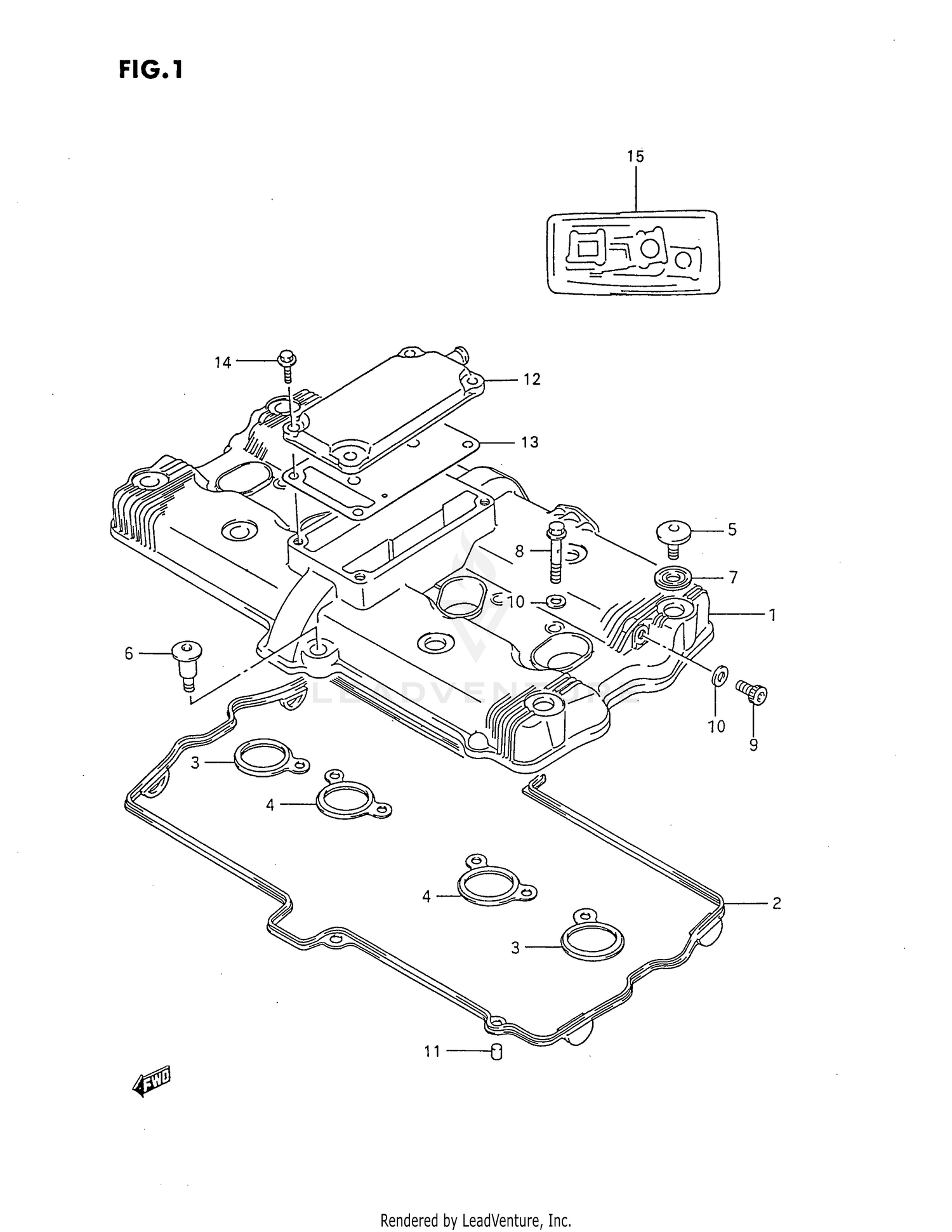

Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CYLINDER HEAD
11171-48B03
|
$400.33 | ||
|
Unavailable |
|||
|
#2
GASKET,CYLINDER
11173-06B02
Superseded by 11173-06B03
|
$34.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET,HEAD COV
11178-27A01
Superseded by 11178-27A02
|
$8.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,HEAD COV
11179-27A02
Superseded by 11179-27A03
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (7X17.5)
09106-07009
Superseded by 09106-07021
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (L:19)
09106-07010
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09161-11008
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT AND GASKET
09360-08009
Superseded by 11180-27820
|
$23.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
07130-08123
Superseded by 07130-0812A
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET (8.2X14X1)
09168-08008
Superseded by 09168-08016
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
04221-08129
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, BREATHER
11176-31301
|
$35.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, BREATHER COVER
11177-48B00-H17
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET SET
11401-17830
Superseded by 11401-17836
|
$444.81 | ||
|
Available to order. Add to View Price |
|||
