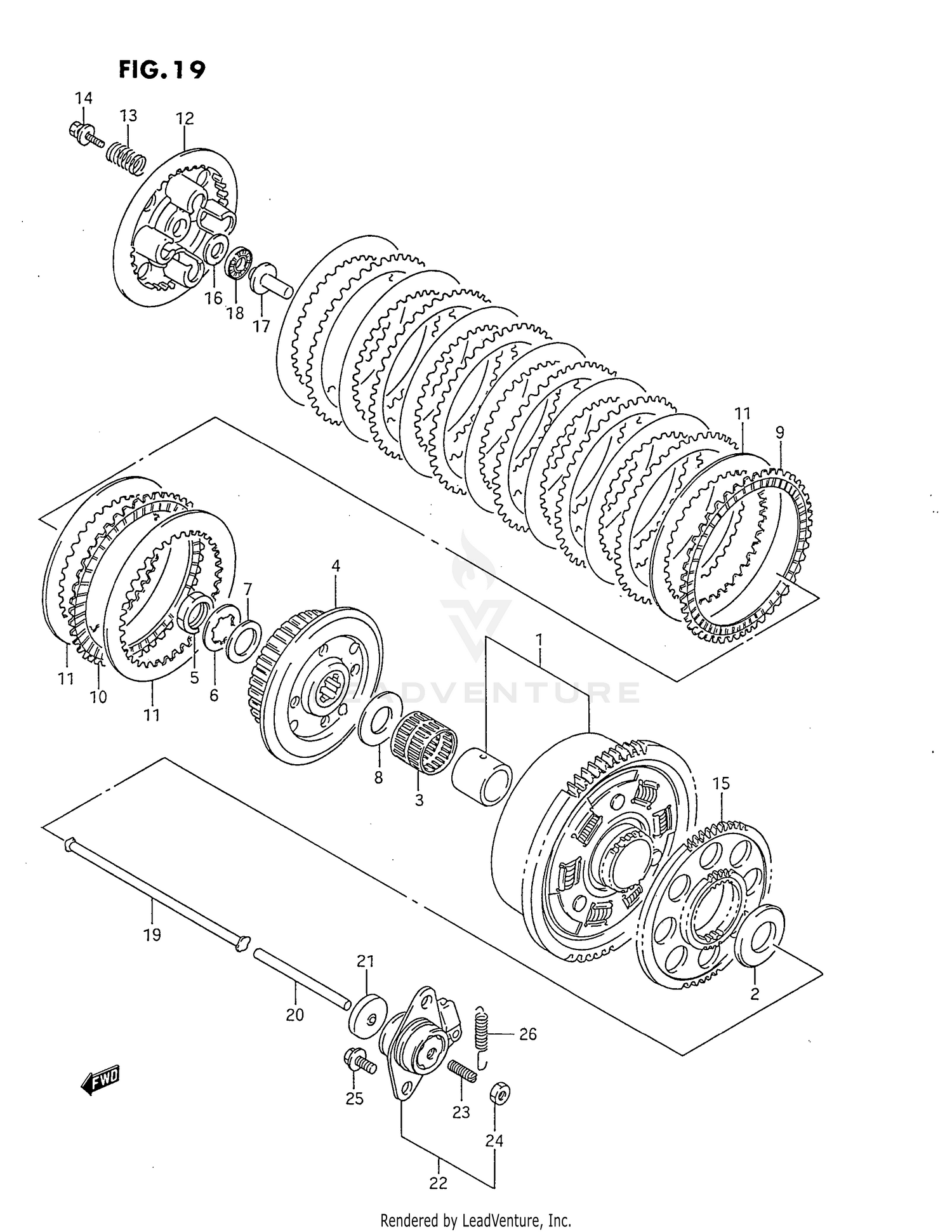

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
21200-17834
Superseded by 21200-17835
|
$310.93 | ||
|
Unavailable |
|||
|
#2
WASHER
09160-25037
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
09263-35017
|
$51.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, SLEEVE
21410-07D00
|
$128.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09140-24012
|
$4.18 | ||
|
Unavailable |
|||
|
#6
WASHER
09167-25007
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER (24.2X35X2)
09164-24006
|
$4.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (25X50X2.5)
09160-25056
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, DRIVE (T:2.2)
21441-20C00
|
$39.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DRIVE,NO.2
21442-17C00
|
$34.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, DRIVEN (T:1.6)
21451-17C00
|
$15.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
DISC, PRESSURE
21462-17C01
|
$65.84 | ||
|
Unavailable |
|||
|
#13
SPRING
09440-20018
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X16)
09116-06168
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
NO DESCRIPTION AVAILABLE
22721-17C01
Superseded by 22721-17C02
|
$167.21 | ||
|
Unavailable |
|||
|
#16
WASHER (15.5X28X1)
09160-15045
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIECE, PUSH
23121-07A00
Superseded by 23121-31E00
|
$31.77 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING (15X28X2)
09263-15003
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, CLUTCH PUSH RH
23110-20C00
|
$27.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD
23111-31301
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (6X34X5.5)
09285-06015
|
$10.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, CLUTCH RELEASE
23200-20C00
|
$69.34 | ||
|
Available to order. Add to View Price |
|||
|
#23
.SCREW (6X25)
09134-06010
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#24
.NUT
08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING
09443-07038
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
