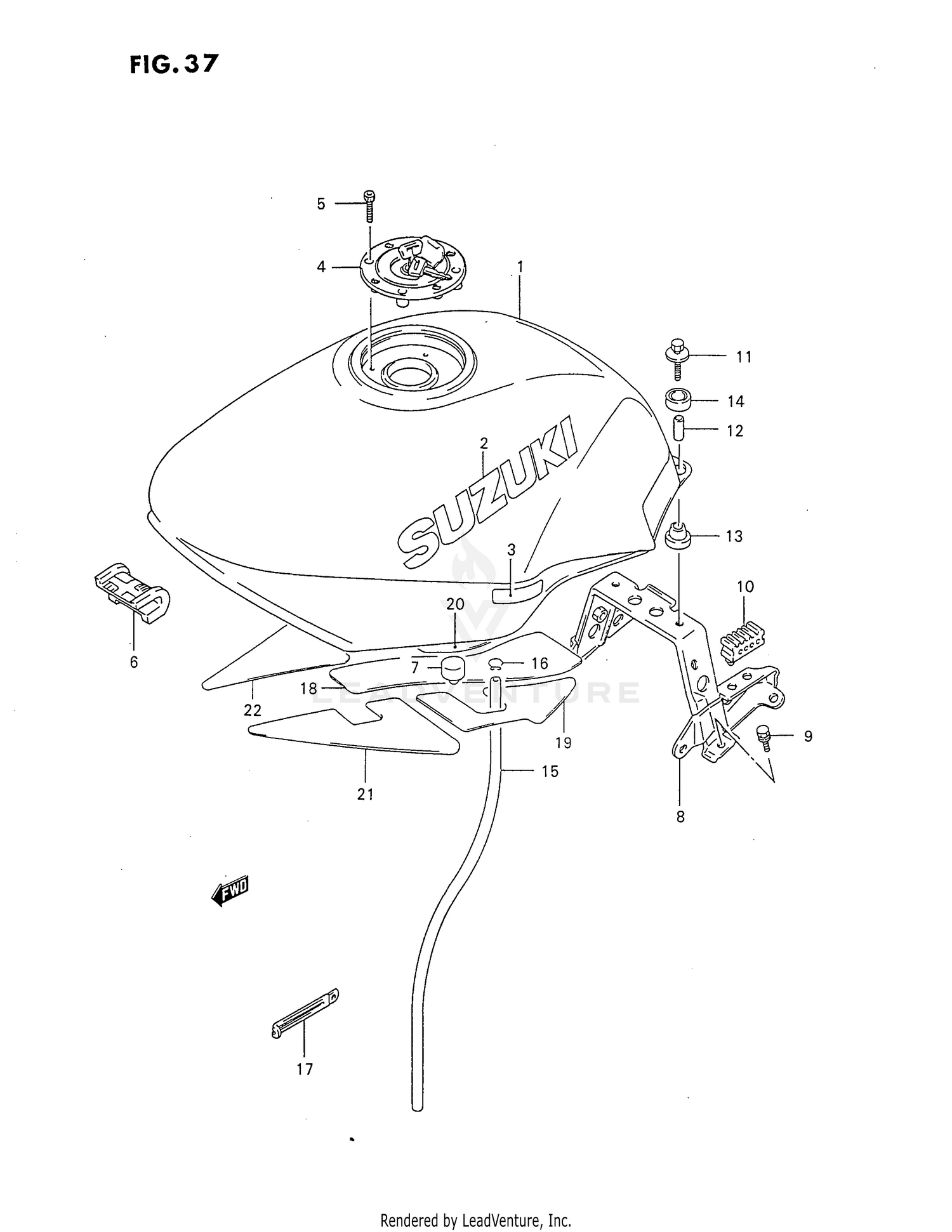

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL
44100-43C30-22U
Superseded by 44100-43C31-22U
|
$812.82 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
44100-43C30-33J
Superseded by 44100-43C31-33J
|
$758.89 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
44100-43C60-22U
Superseded by 44110-19C11-YD8
|
$790.79 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
44100-43C60-33J
Superseded by 44110-19C11-YD8
|
$790.79 | ||
|
Unavailable |
|||
|
#2
EMBLEM
68111-12C00-17U
Superseded by 68111-12C30-17U
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, FUEL TANK
32851-10D00
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP SET,FUEL TA
44201-01832
Superseded by 44201-01833
|
$194.93 | ||
|
Unavailable |
|||
|
#4
CAP SET, FUEL TANK
44201-01842
|
$223.66 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (5X20)
09106-05017
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION, FUEL TANK FRONT
44511-19C00
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION, FUEL TANK SIDE
09321-10011
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, REAR
44550-19C00
|
$53.51 | ||
|
Unavailable |
|||
|
#9
BOLT
09137-06017
Superseded by 01570-0620A
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CUSHION, FUEL TANK SIDE REAR
45149-31300
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, REAR
09116-06172
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
09180-06271
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CUSHION, REAR LOWER
09320-10038
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CUSHION, REAR UPPER
09320-14017
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HOSE, WATER DRAIN
44423-19C00
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
09401-08401
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09404-08420
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
HEAT SHIELD, CENTER
49131-20C00
|
$24.87 | ||
|
Unavailable |
|||
|
#19
HEAT SHIELD, REAR LH
49132-20C00
|
$19.82 | ||
|
Unavailable |
|||
|
#20
HEAT SHIELD, REAR RH
49133-20C00
|
$14.44 | ||
|
Unavailable |
|||
|
#21
HEAT SHIELD, FRONT LH
49134-20C00
|
$15.28 | ||
|
Unavailable |
|||
|
#22
HEAT SHIELD, FRONT RH
49135-20C00
|
$14.30 | ||
|
Unavailable |
|||
