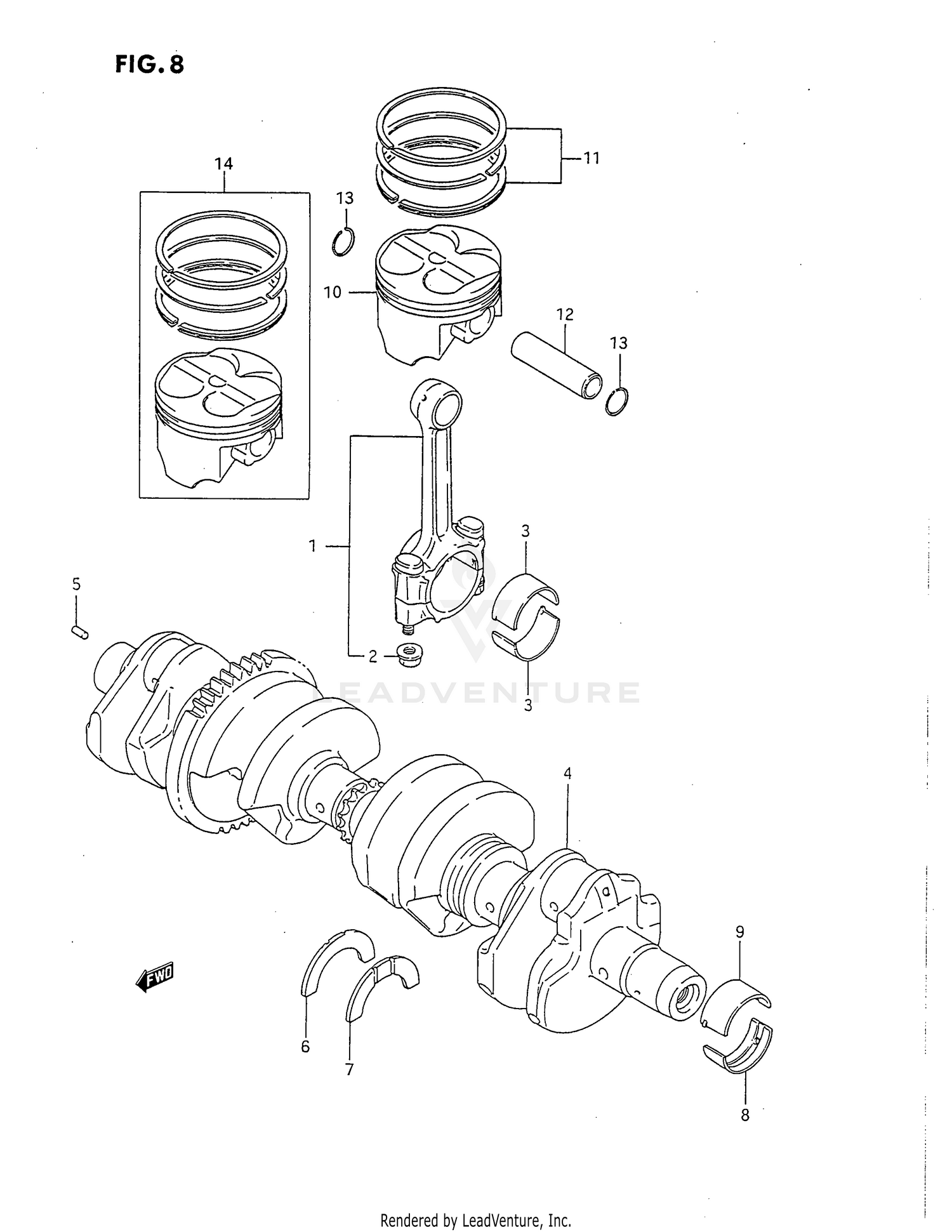

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD ASSY, CONNECTING
12160-17C00
|
$128.06 | ||
|
Unavailable |
|||
|
#2
NUT
09159-09001
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN (GREEN)
12164-31E00-0A0
|
$25.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN (BLACK)
12164-31E00-0B0
|
$25.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN (BROWN)
12164-31E00-0C0
|
$25.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN (YELLOW)
12164-31E00-0D0
|
$25.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
CRANKSHAFT SET
12000-17840
|
$800.85 | ||
|
Unavailable |
|||
|
#5
.PIN
04221-04089
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BEARING, CRANK THRUST
12228-48B00-0E0
|
$12.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0C0
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0E0
|
$12.41 | ||
|
Unavailable |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0H0
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (GREEN)
12229-06B00-0A0
|
$13.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BLACK)
12229-06B00-0B0
|
$13.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BROWN)
12229-06B00-0C0
|
$13.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (YELLOW)
12229-06B00-0D0
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (GREEN)
12229-06B10-0A0
|
$13.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (BLACK)
12229-06B10-0B0
|
$13.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (BROWN)
12229-06B10-0C0
|
$13.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (YELLOW)
12229-06B10-0D0
|
$14.06 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON
12111-20C01-0F0
Superseded by 12111-20C11-0F0
|
$72.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON
12111-20C11-0F0
|
$72.70 | ||
|
Unavailable |
|||
|
#11
RING SET, PISTON
12140-17C12
|
$67.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING SET, PISTON
12140-20C10
Superseded by 12140-17C12
|
$67.07 | ||
|
Unavailable |
|||
|
#12
PIN, PISTON
12151-17C00
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING,SNAP
09381-19001
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON SET (OS:0.5)
12100-20C00-050
|
$136.86 | ||
|
Unavailable |
|||
|
#14
PISTON SET (OS:1.0)
12100-20C00-100
|
$84.22 | ||
|
Unavailable |
|||
|
#14
PISTON SET (OS:0.5)
12100-20C11-050
|
$94.81 | ||
|
Unavailable |
|||
|
#14
PISTON SET (OS:1.0)
12100-20C11-100
|
$72.80 | ||
|
Unavailable |
|||
