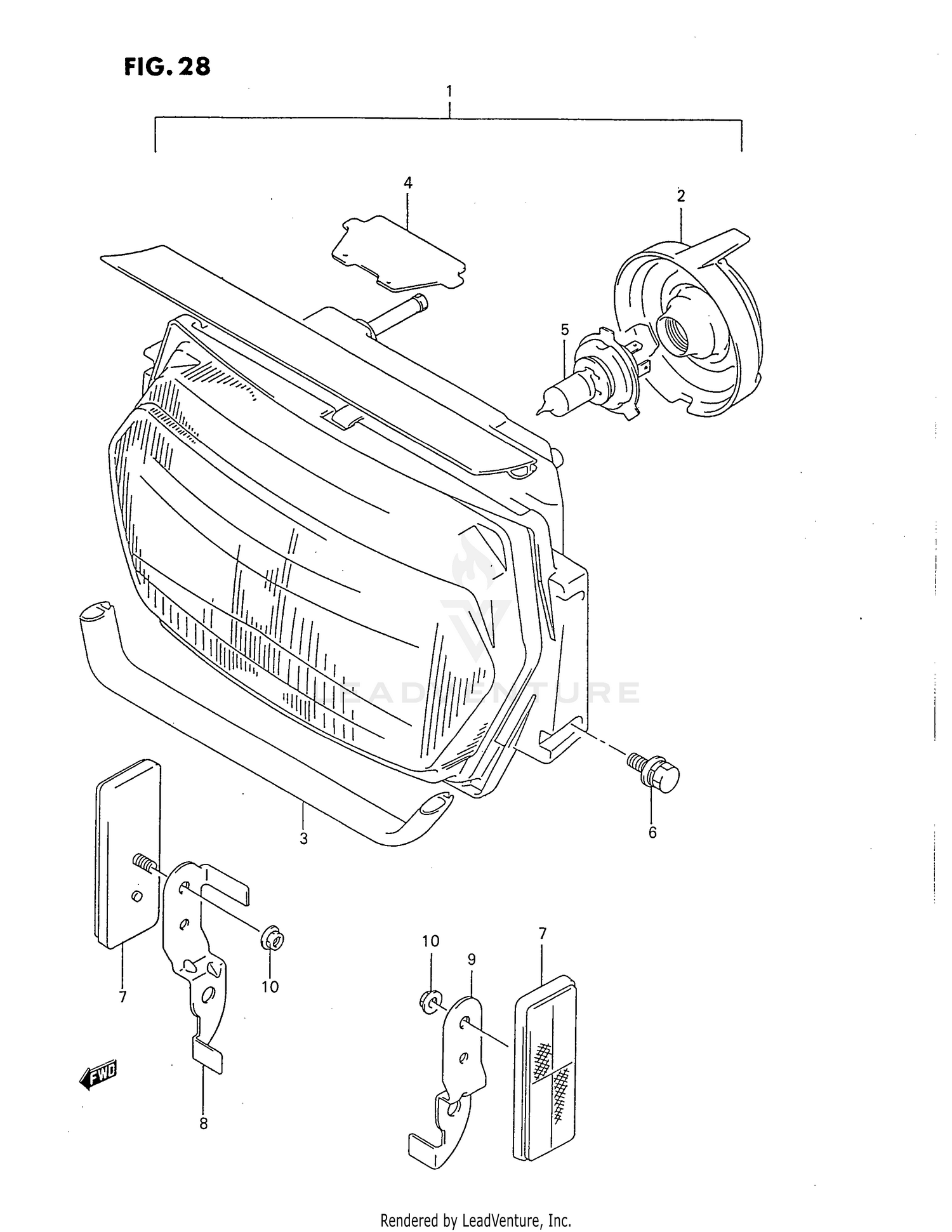

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-20C10-999
|
$221.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SOCKET
35173-48B00
|
$13.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35243-19C00
|
$8.37 | ||
|
Unavailable |
|||
|
#4
GASKET
35244-19C00
|
$3.92 | ||
|
Unavailable |
|||
|
#5
BULB (12V60/55W,H4)
09471-12060
|
$31.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, REAR
01580-06203
Superseded by 01580-0620B
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
REFLEX REFLECTOR, FRONT SIDE
35950-43431
|
$20.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, RH
35956-19C00
|
$4.19 | ||
|
Unavailable |
|||
|
#9
BRACKET, LH
35957-19C00
|
$4.82 | ||
|
Unavailable |
|||
|
#10
.NUT
08310-00053
Superseded by 08310-0005A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
