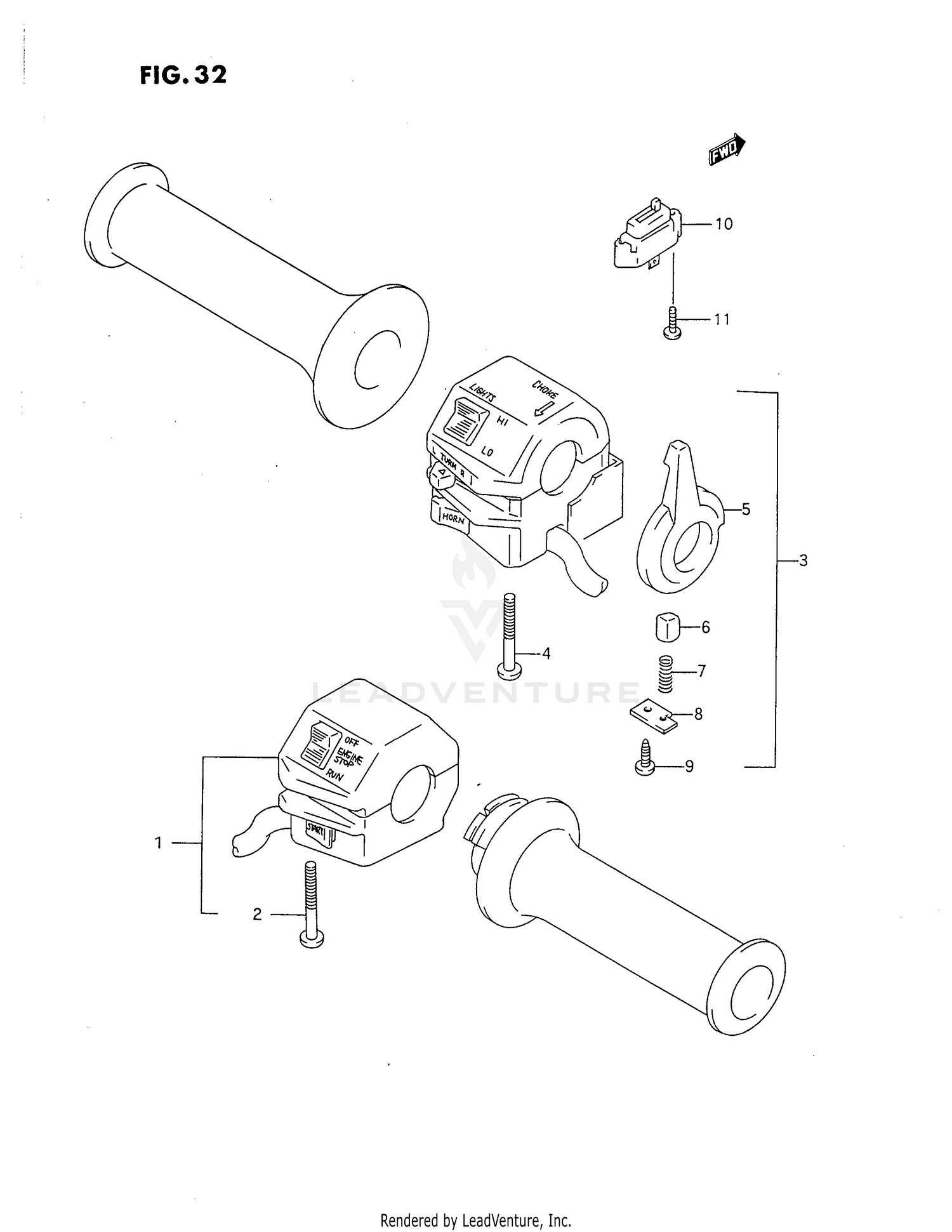

Handle Switch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
37200-17C33
Superseded by 37200-17C34
|
$101.18 | ||
|
Unavailable |
|||
|
#2
.SCREW
02112-05455
Superseded by 02112-0545B
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
NO DESCRIPTION AVAILABLE
37400-47B31
Superseded by 37400-47B32
|
$118.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SCREW
02112-05455
Superseded by 02112-0545B
|
$2.81 | ||
|
Unavailable |
|||
|
#5
LEVER, CHOCK
37481-30B01
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIECE, SLIDE
37482-30B00
|
$2.35 | ||
|
Unavailable |
|||
|
#7
SPRING
37483-30B00
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
37486-30B00
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03511-04123
Superseded by 03511-0412A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY, CLUTCH
37560-38A00
|
$23.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, CLUTCH SWITCH
37564-26E00
Superseded by 09132-03017
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
