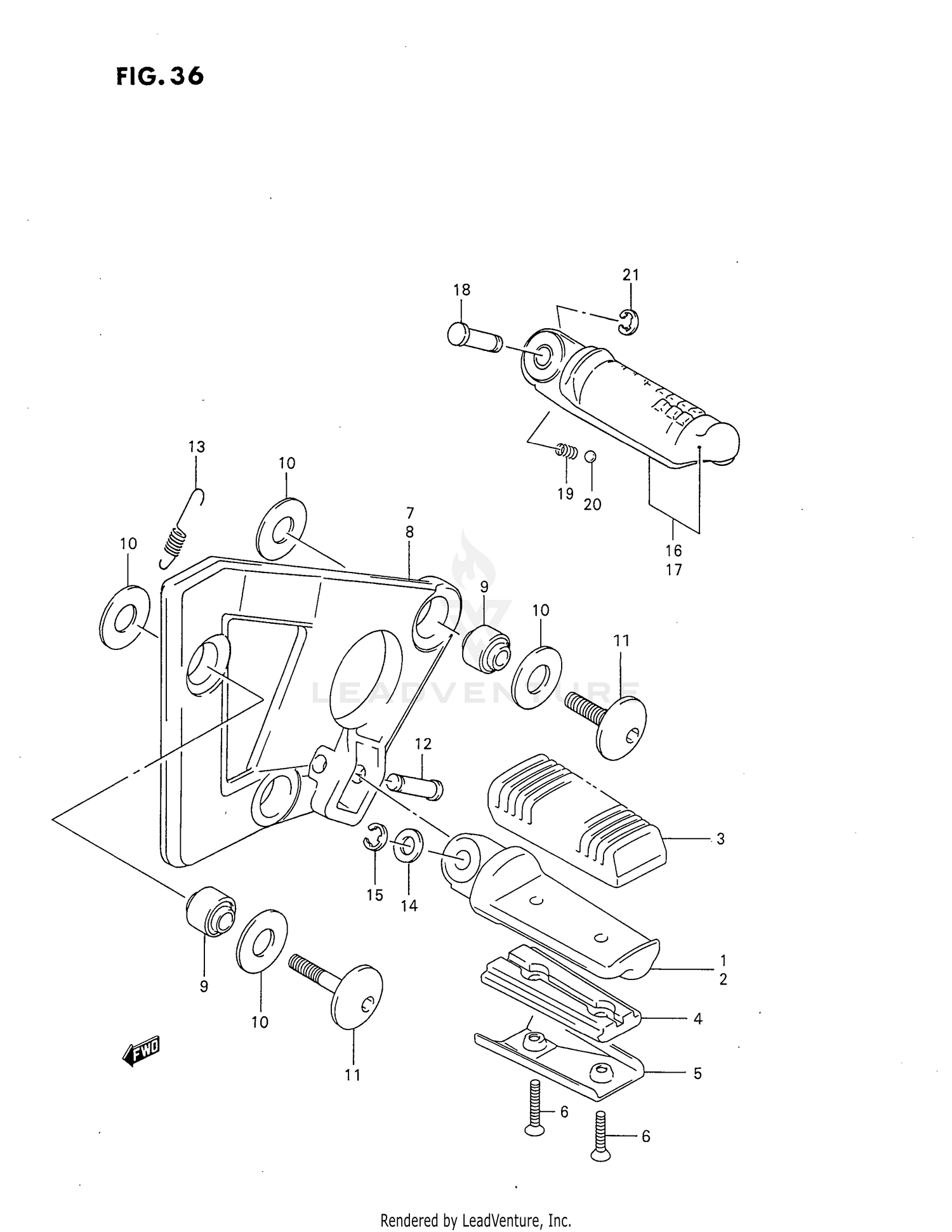

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FRONT FOOTREST RH
43510-20C00
|
$96.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR, FRONT FOOTREST LH
43520-20C00
|
$120.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, FOOTREST
43550-48B10
|
$30.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, FOOTREST
43533-20C00
|
$40.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, FOOTREST
43534-20C00
|
$11.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02122-05253
Superseded by 02122-0525B
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, FRONT FOOTREST RH
43517-20C01
|
$99.05 | ||
|
Unavailable |
|||
|
#8
HOLDER, FRONT FOOTREST LH
43527-20C01
|
$106.12 | ||
|
Unavailable |
|||
|
#9
BUSH, HOLDER
09319-08036
|
$27.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, HOLDER
09161-12009
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, MUFFLER SUPPORT FRONT
09106-08080
Superseded by 09106-08147
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
09208-08010
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPRING
09443-10037
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,LOCK
08322-01083
Superseded by 08322-0108A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAR, PILLION FOOTREST RH
43610-20C00
Superseded by 43610-20C01
|
$83.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAR, PILLION FOOTREST LH
43710-20C00
Superseded by 43710-20C01
|
$83.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN
09208-08011
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
09440-05005
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
Unavailable |
|||
