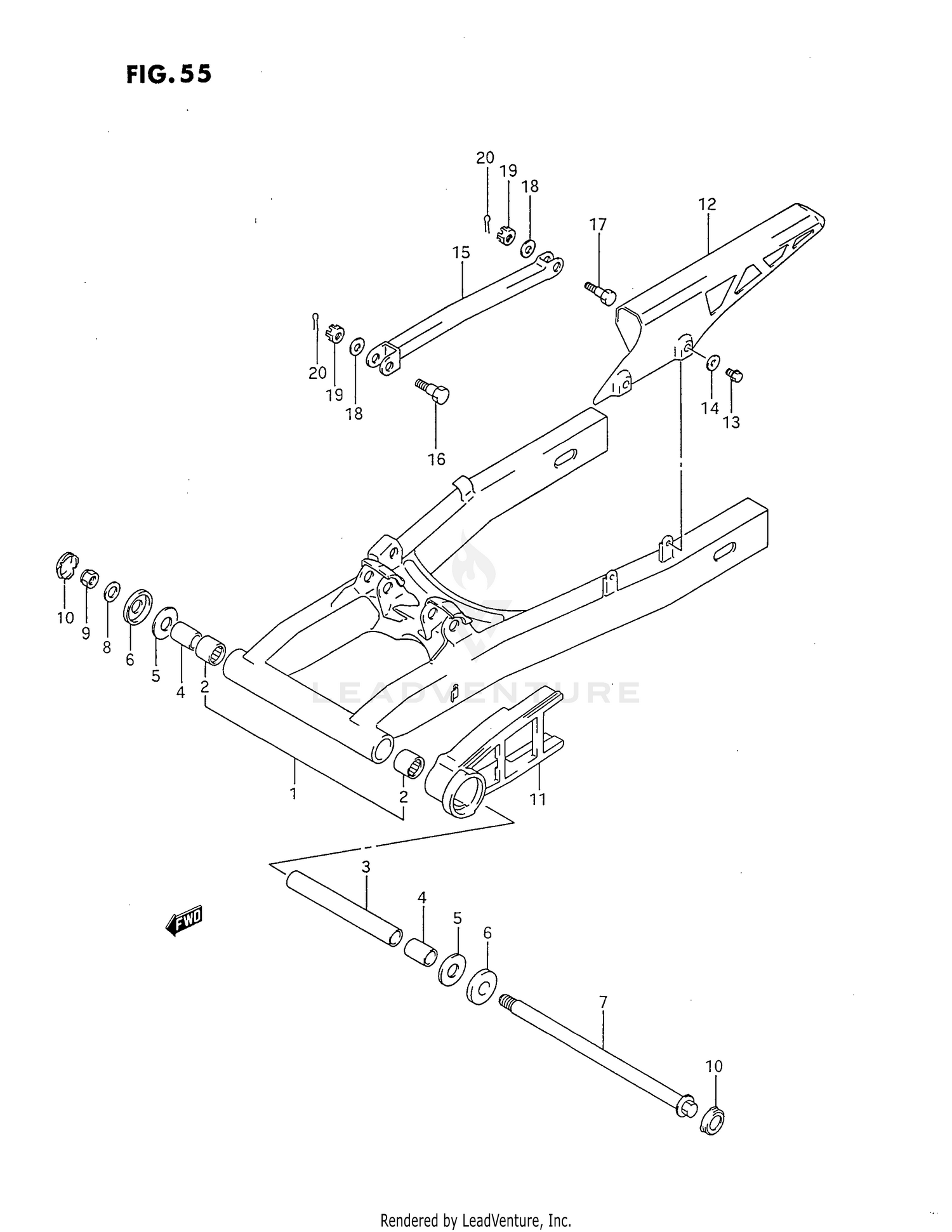

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR
61000-20C02-13L
|
$551.00 | ||
|
Unavailable |
|||
|
#2
.BEARING (22X29X30)
09263-22017
|
$28.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, CENTER
61282-20C00
|
$11.94 | ||
|
Unavailable |
|||
|
#4
SPACER, PIVOT BEARING
61251-38B00
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
08211-16341
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER DUST SEAL
61262-32410
Superseded by 61262-32411
|
$10.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, SWINGING ARM PIVOT
61211-20C00
|
$40.05 | ||
|
Unavailable |
|||
|
#8
WASHER
09160-14015
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-14019
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, SWINGING ARM PIVOT
61222-43400
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUFFER,CHAIN TO
61273-20C00
Superseded by 61273-20C01
|
$45.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, CHAIN
61310-27A01
|
$91.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09169-06026
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
TORQUE LINK, REAR (BLACK)
64310-20C00-019
|
$22.55 | ||
|
Unavailable |
|||
|
#16
BOLT, FRONT (10X41)
09111-10016
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, REAR (10X35)
09101-10036
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (10.5X20X3.2)
09160-10069
Superseded by 09160-10005
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08314-40103
Superseded by 08314-4010B
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
04111-20208
Superseded by 04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
