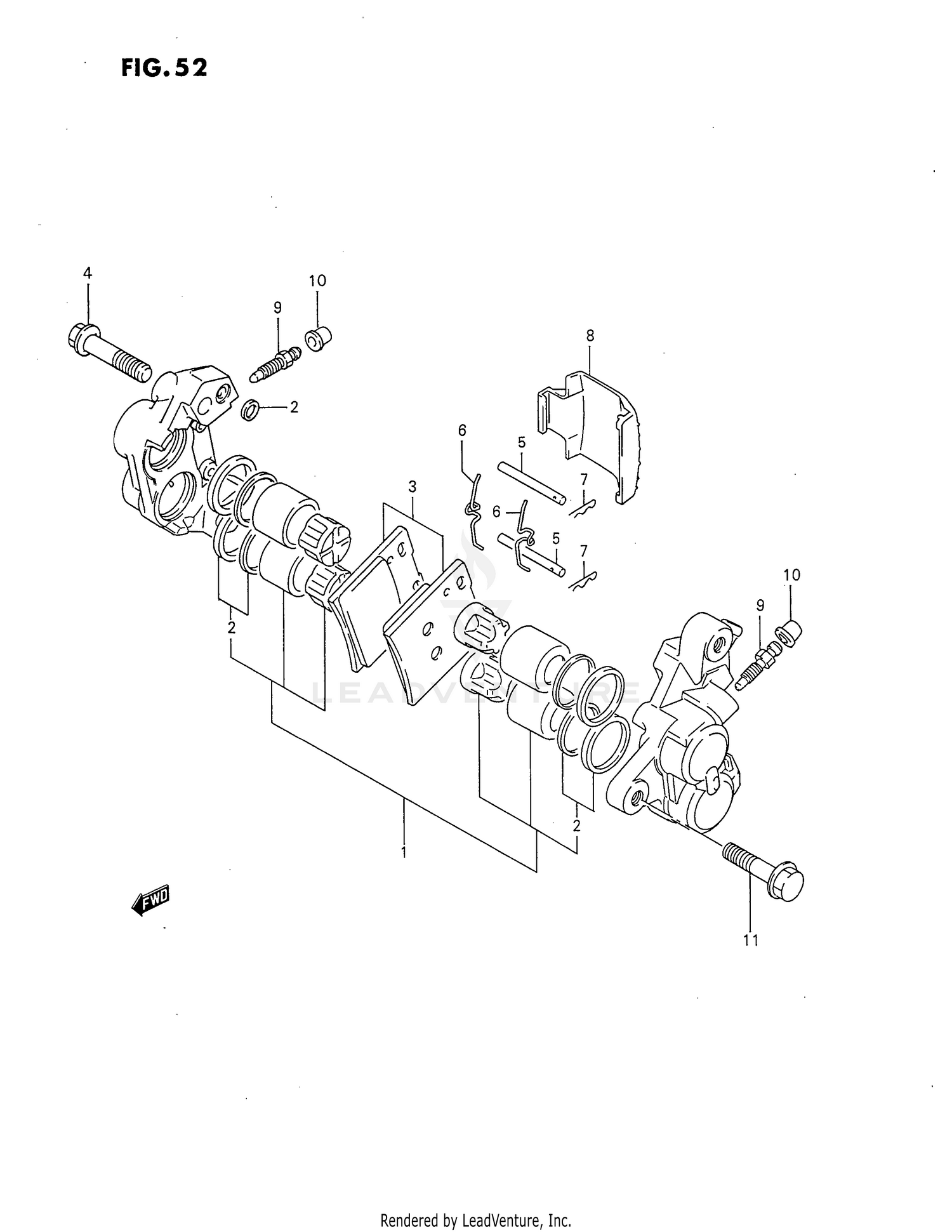

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CALIPER ASSY, FRONT RH
59100-20C02
|
$282.32 | ||
|
Unavailable |
|||
|
#
CALIPER ASSY, FRONT LH
59300-20C02
|
$231.41 | ||
|
Unavailable |
|||
|
#1
PISTON SET
59100-19841
Superseded by 59100-19842
|
$96.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL SET,PISTON
59100-19830
Superseded by 59100-19831
|
$24.62 | ||
|
Unavailable |
|||
|
#3
PAD SET
59100-20820
|
$40.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
59145-16700
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
69141-45000
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING
69143-45001
|
$8.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CLIP,PAD PIN
69142-45000
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER
59151-04A01
|
$43.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLEEDER
59121-18410
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
55156-66310
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01550-08353
Superseded by 01550-0835A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
