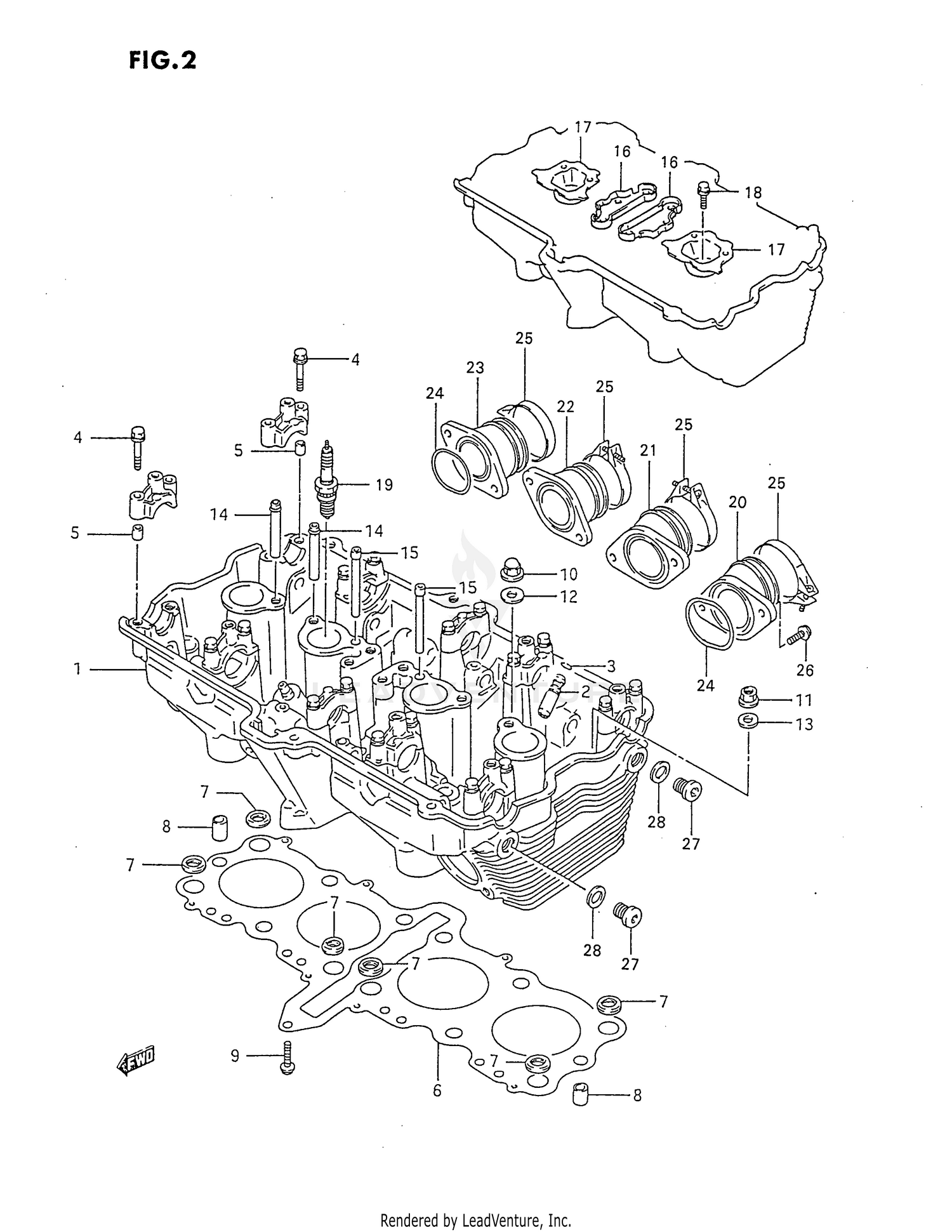

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-20C02
|
$965.87 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY, CYLINDER
11100-20C12
|
$1,006.00 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
11116-06B70
|
$45.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
.RING,SNAP (10X85)
09381-10004
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X39)
09103-06026
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET,CYLINDER
11141-17C02
Superseded by 11141-17C03
|
$88.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING
11143-06B00
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
04211-11189
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-06253
Superseded by 01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
09159-10054
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08316-10103
Superseded by 08316-1010B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET (10.2X20X2.3)
09168-10031
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (10.5X22X2.3)
09160-10060
Superseded by 09160-10039
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, OIL NO.1,2
11131-27A00
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, OIL NO.3
11133-27A00
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, OIL PIPE NO.1
11135-17C10
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, OIL PIPE,NO.2
11137-17C01
|
$4.72 | ||
|
Unavailable |
|||
|
#18
BOLT
01547-06123
Superseded by 01547-0612B
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SPARK PLUG (NGK,JR9C)
09482-00397
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPARK PLUG (NGK,JR8C)
09482-00401
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE, INTAKE, LH
13101-17C01
|
$34.54 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE ASSY,INTAK
13102-17C01
Superseded by 13102-17C02
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE ASSY,INTAK
13103-17C01
Superseded by 13103-17C02
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE, INTAKE, RH
13104-17C01
|
$36.61 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (D:2.4,ID:39.7)
09280-40010
Superseded by 09280-40020
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
.CLAMP
09402-52208
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
02112-16163
Superseded by 02112-1616A
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG, CYLINDER HEAD
09248-14010
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#28
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
