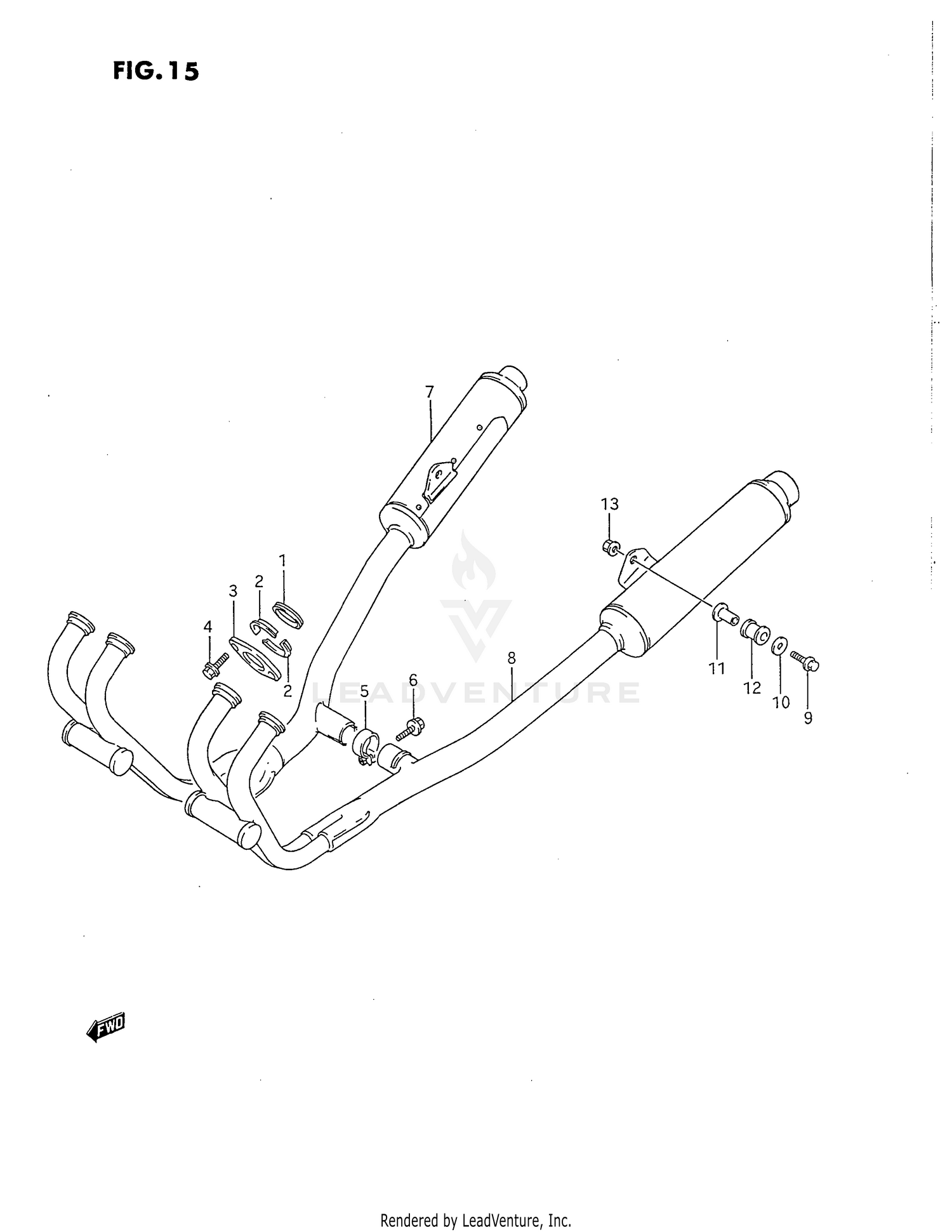

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
.GASKET,EXHAUST
14181-18C00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, EXHAUST PIPE
14155-27A00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, EXHAUST PIPE
14182-26D00
|
$42.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
07120-08253
Superseded by 07120-0825B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
14772-19C00
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01550-06253
Superseded by 01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
MUFFLER ASSY, RH
14305-20C11-H01
|
$348.01 | ||
|
Unavailable |
|||
|
#8
MUFFLER ASSY, LH
14306-20C11-H01
|
$492.16 | ||
|
Unavailable |
|||
|
#9
BOLT (8X55)
09103-08256
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (8.5X33X1.5)
09160-08106
Superseded by 09160-08146
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER
09180-08156
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09320-12049
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08316-20083
Superseded by 08316-2008A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
