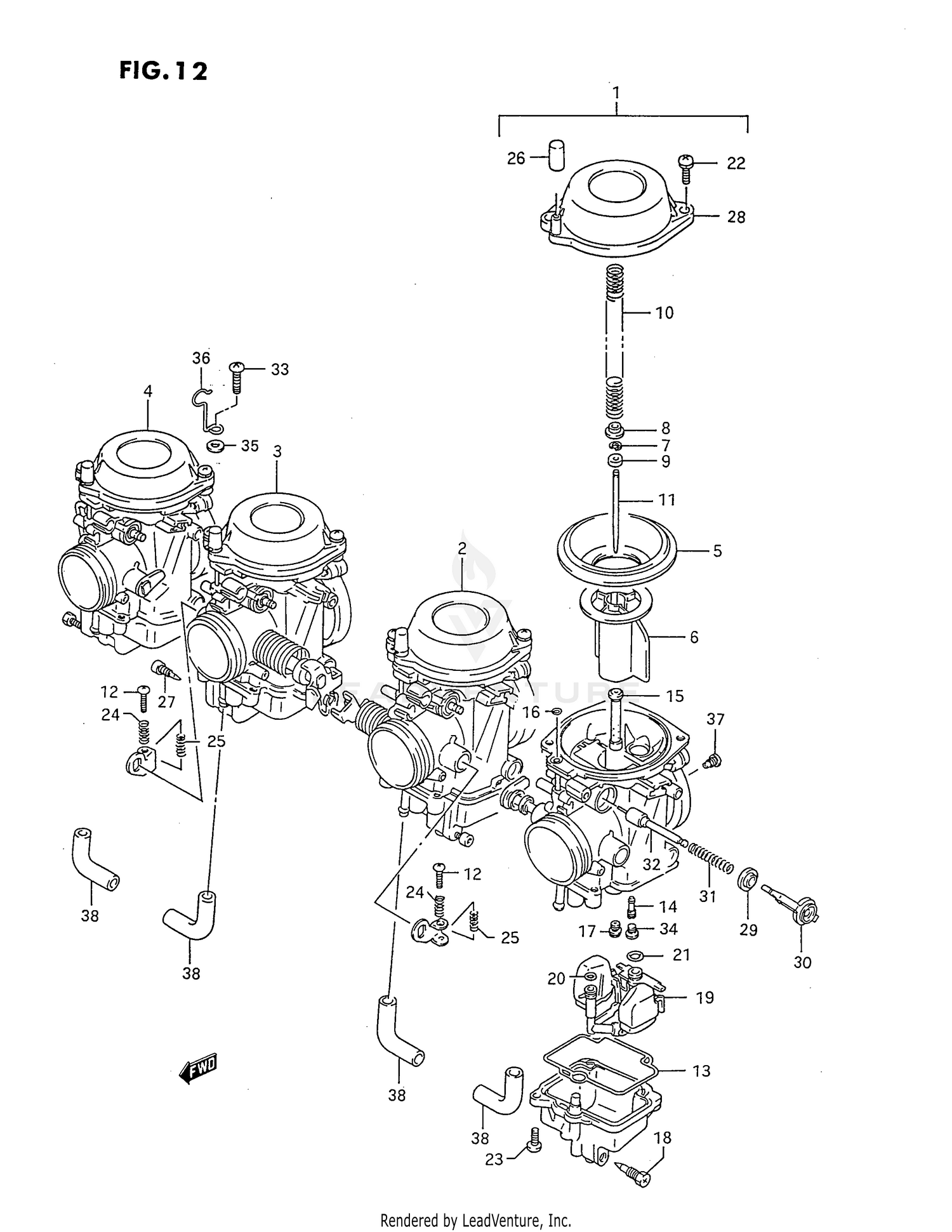

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY, LH
13201-20C31
|
$514.17 | ||
|
Unavailable |
|||
|
#1
CARBURETOR ASSY, LH
13201-20CH0
|
$329.20 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY, ML
13202-20C31
|
$329.20 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY, ML
13202-20CH0
|
$329.20 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSY, MR
13203-20C31
|
$514.17 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSY, MR
13203-20CH0
|
$329.20 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSY, RH
13204-20C31
|
$393.46 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSY, RH
13204-20CH0
|
$329.20 | ||
|
Unavailable |
|||
|
#5
.DIAPHRAGM
13507-17C01
Superseded by 13507-17C02
|
$38.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE, PISTON
13501-17C00
|
$84.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE, PISTON
13501-02D00
|
$105.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
E RING
13394-31210
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING
13382-42A00
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING
13387-44030
|
$7.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
13417-42A00
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
13417-12D00
|
$6.44 | ||
|
Unavailable |
|||
|
#11
NEEDLE, JET (5EZ62-1)
13383-20C10
|
$22.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE, JET (5EZ63-1)
13383-20C20
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
13267-44B00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, FLOAT CHAMBER
13258-44B00
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET, PILOT (32.5)
09492-32006
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
JET, NEEDLE (Y-1M)
09494-00875
|
$45.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING
13509-17C00
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET, MAIN (105)
09491-21016
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
JET, MAIN (110)
09491-22016
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, DRAIN
13247-24500
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
FLOAT/NEEDLE VA
13250-20C00
Superseded by 13250-20C10
|
$114.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
.O RING
13374-46710
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
.O RING,NEEDLE VALVE SEAT
13374-44080
Superseded by 13374-35C00
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
02112-75163
Superseded by 02112-7516A
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
02112-05127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING
13271-44B00
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING
13268-17C10
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP
13508-17C00
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, DRAIN
13247-13A00
Superseded by 13247-02340
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, DIAPHRAGM
13502-17C00
|
$43.44 | ||
|
Unavailable |
|||
|
#29
CAP,STARTER
13418-17C00
Superseded by 13418-17C01
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER
13418-17C10
|
$15.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING
13417-09110
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUNGER ASSY
13411-20C00
|
$18.50 | ||
|
Unavailable |
|||
|
#33
SCREW
02112-05164
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLUG
13357-34C00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
08322-01053
Superseded by 08322-0105A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CLIP
13671-20C20
|
$4.41 | ||
|
Unavailable |
|||
|
#37
JET, AIR (1.4)
09493-28007
Superseded by 09493-28006
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOSE
13684-48B10
Superseded by 13684-48B11
|
$20.61 | ||
|
Available to order. Add to View Price |
|||
