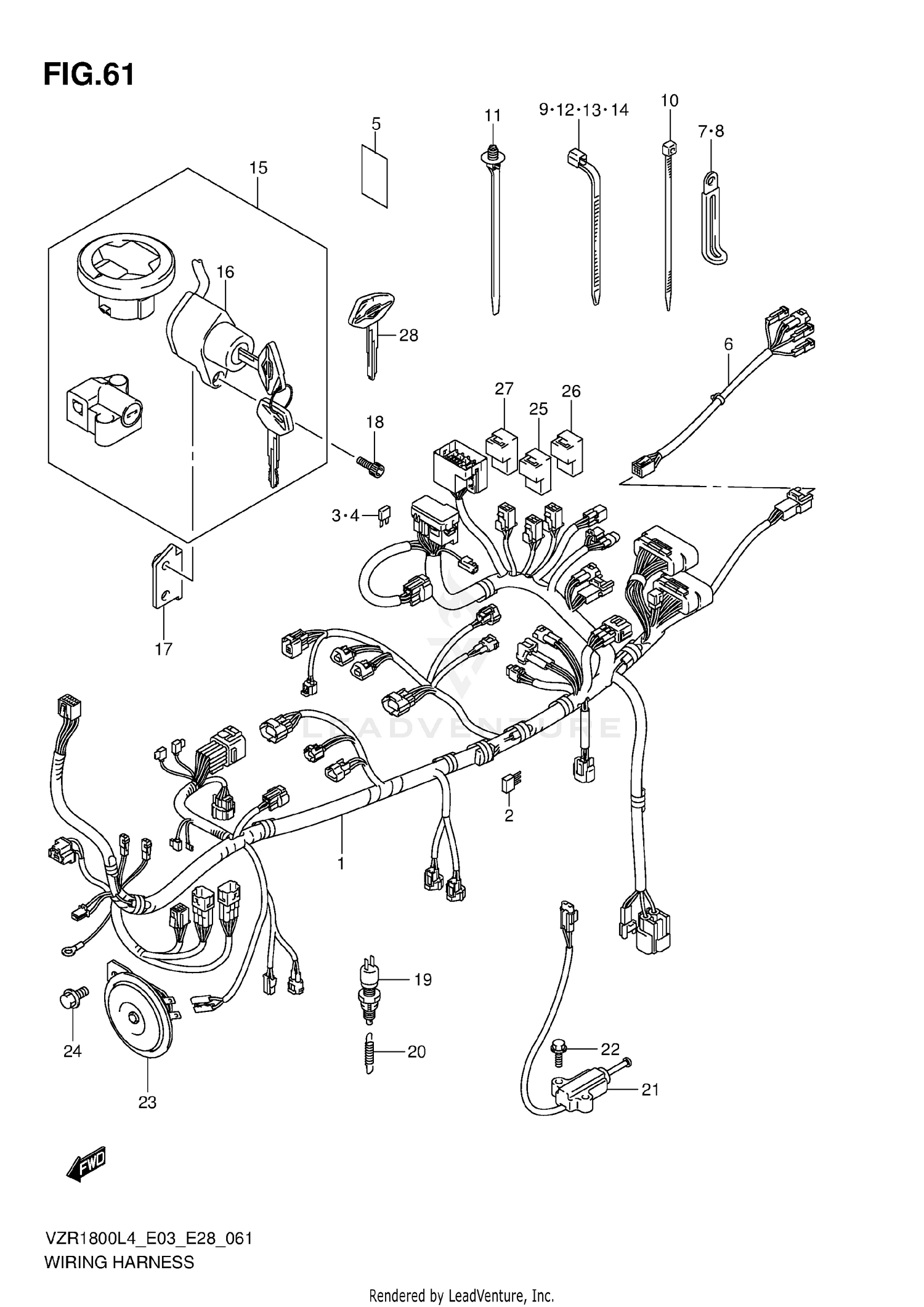

Wiring Harness (vzr1800l4 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-48GE0
|
$1,234.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (10A)
09481-10501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE (15A)
09481-15501
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
TAPE, FENDER
36611-16G00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE,RR COMB
36858-48G00
Superseded by 36858-48G01
|
$78.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#8
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#9
CLAMP (L:125)
09407-14403
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP (L:154)
09407-17403
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:165)
09407-18402
|
$2.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CLAMP (L:190)
09407-19401
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP (L:235)
09407-25401
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
LOCK SET
37000-48890
Superseded by 37000-48893
|
$362.02 | ||
|
Unavailable |
|||
|
#16
.LOCK ASSY,STEERING
37110-48G50
Superseded by 37110-48G51
|
$117.22 | ||
|
Unavailable |
|||
|
#17
BRACKET, IGNITION SWITCH
37119-48G00
|
$9.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
07130-0616A
Superseded by 07130-0616B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
SWITCH ASSY, STOP LAMP
37740-24A00
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09443-06077
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH ASSY,SIDE STAND
37840-25D00
Superseded by 37840-25D02
|
$65.20 | ||
|
Unavailable |
|||
|
#22
SCREW
01550-0625A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
HORN ASSY
38500-48G01
|
$94.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (8X12)
01550-0812A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
RELAY ASSY, FUEL PUMP
38740-24X50
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
RELAY ASSY, FAN MOTOR
38740-24X50
|
$55.84 | ||
|
Unavailable |
|||
|
#27
RELAY ASSY, HEADLAMP
38740-24A00
|
$68.37 | ||
|
Available to order. Add to View Price |
|||
|
#28
KEY, BLANK
37146-10F00
|
$53.17 | ||
|
Available to order. Add to View Price |
|||
