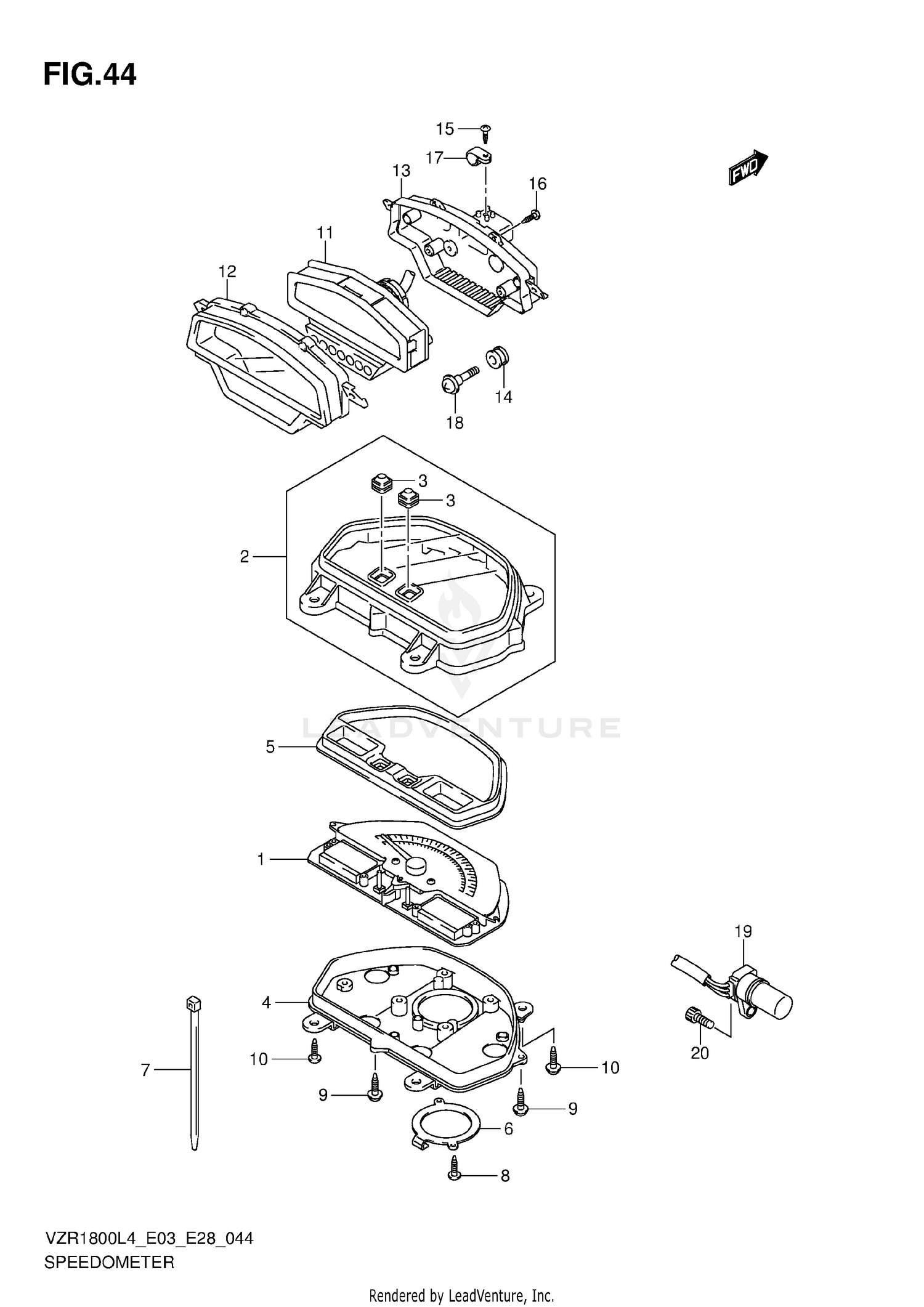

Speedometer (vzr1800zl4 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER
34120-48GD0
|
$524.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
UPPER CASE ASSY
34150-48G00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, SWITCH
34124-32F00
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOWER CASE
34111-48G40
|
$95.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
REFLECTOR ASSY
34125-48G00
|
$80.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET
34950-48G00
|
$23.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
34192-48G00
|
$15.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SCREW (3X12)
34183-09F00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW (3X14)
34149-03G00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
TACHOMETER ASSY
34220-48G30
|
$995.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE ASSY, UPPER
34250-48G30
|
$135.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE ASSY, LOWER
34211-48G30
|
$97.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION,SPEEDOMETER
34955-13E00
Superseded by 34955-13E01
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW (4X14)
34149-17E10
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SCREW
09132-03008
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
36385-24A30
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
03541-0516A
|
$1.70 | ||
|
Unavailable |
|||
|
#19
SENSOR,SPEED
34990-48G00
Superseded by 34990-48G01
|
$178.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
07130-0616A
Superseded by 07130-0616B
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
