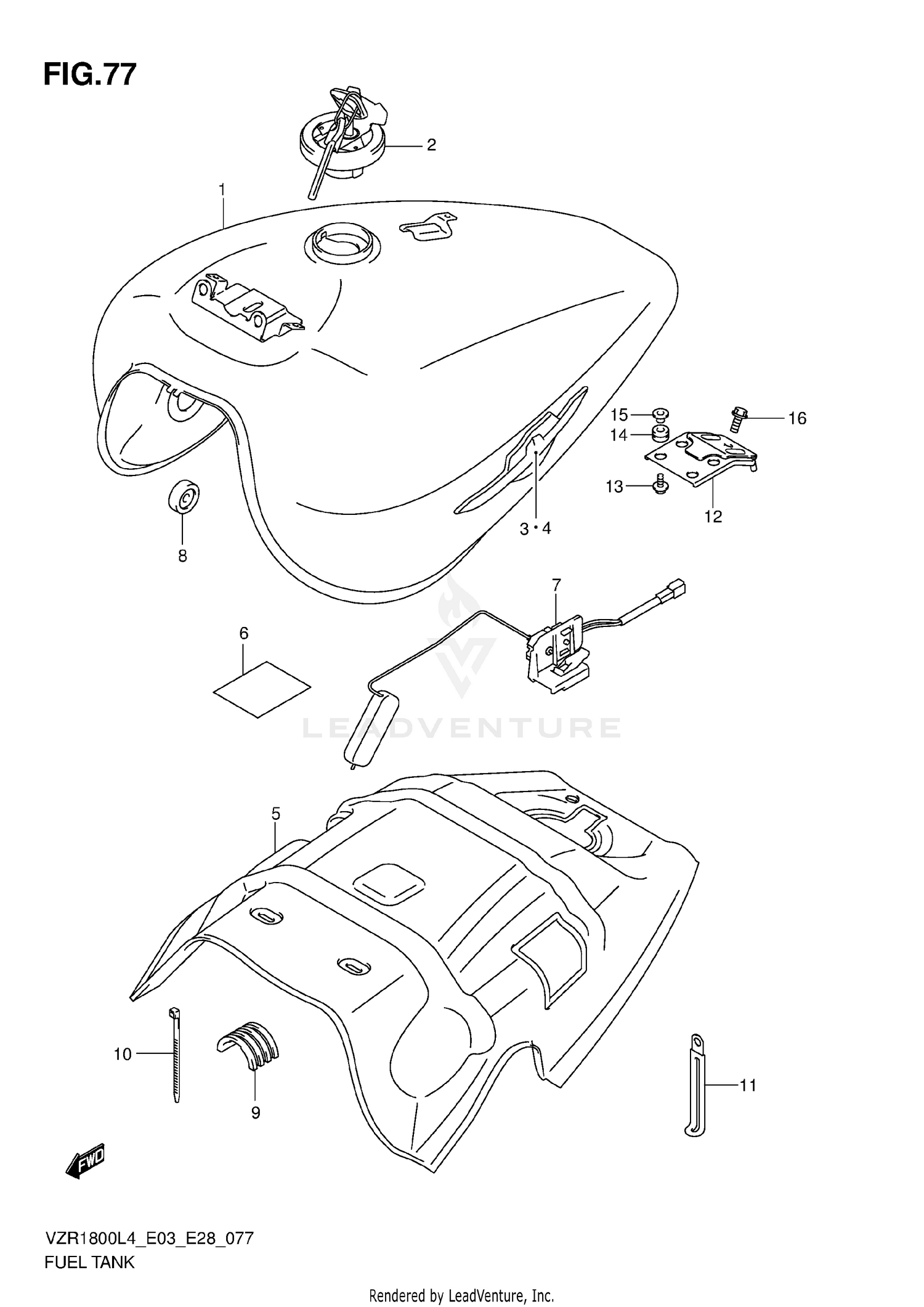

Fuel Tank (vzr1800l4 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (BLACK)
44100-48GD0-YVB
|
$1,919.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP SET,FUEL TA
44200-39830
Superseded by 44200-39832
|
$118.11 | ||
|
Unavailable |
|||
|
#3
EMBLEM, FUEL TANK RH
68111-48G01
|
$75.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM, FUEL TANK LH
68121-48G01
|
$77.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIELD, FUEL TANK HEAT
44191-48G10
|
$359.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
TAPE, HEAT SHIELD
44192-48G00
|
$16.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
GAUGE ASSY,FUEL
34810-48G00
Superseded by 34810-48G01
|
$76.26 | ||
|
Unavailable |
|||
|
#8
CUSHION
09329-10007
Superseded by 09329-10026
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CUSHION, FUEL TANK CENTER
44541-13E10
|
$28.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP (L:300)
09407-30402
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP(L:80)
09404-06434
Superseded by 09404-06036
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, FUEL TANK REAR
44530-48G10
|
$50.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X20)
09116-06192
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION (8X18X10)
09320-08001
Superseded by 09320-08527
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09169-06062
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (8X16)
01550-0816A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
