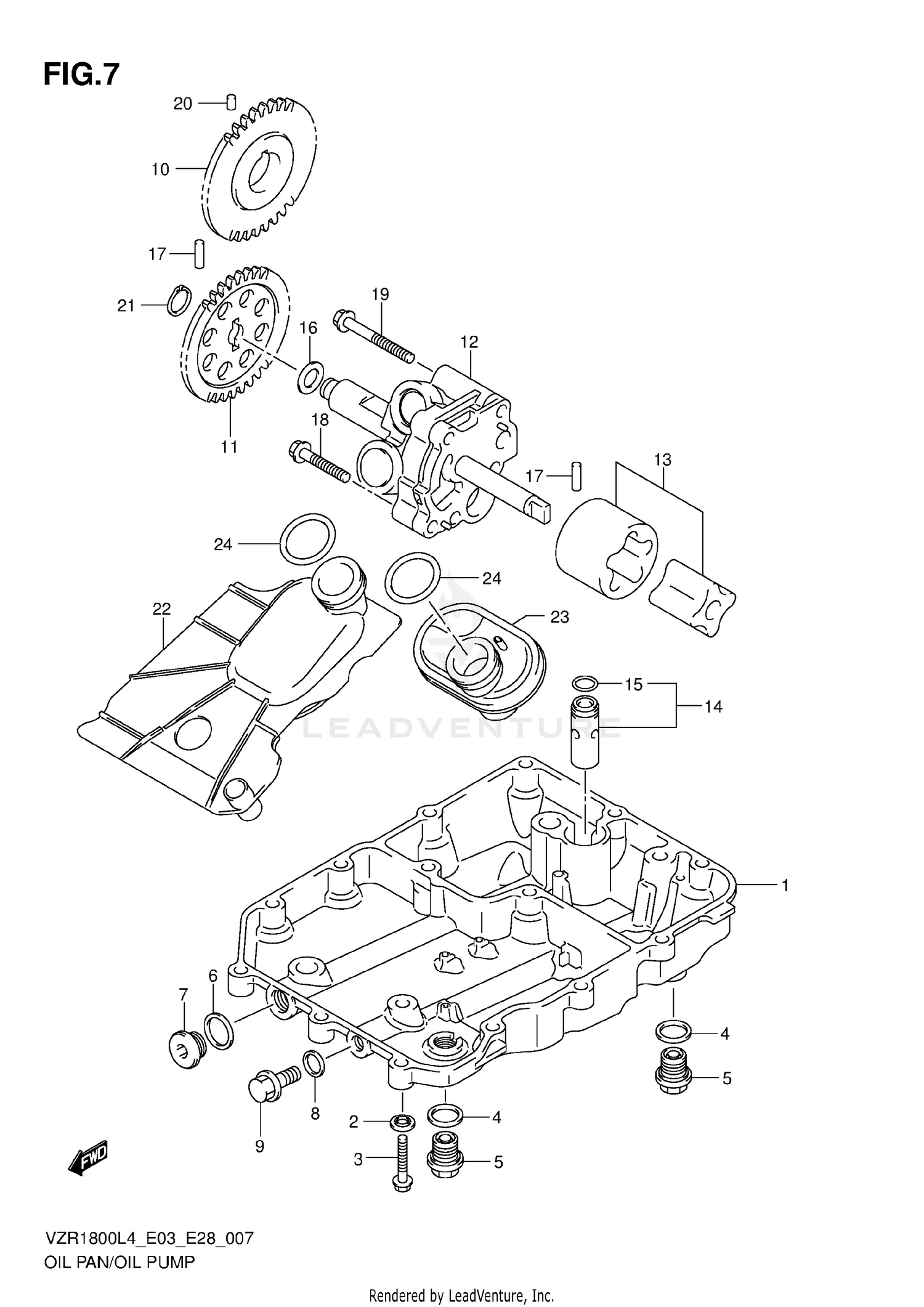

Oil Pan/oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN, OIL
11511-48G01
|
$341.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT
01547-0630A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#5
PLUG (14X20)
09247-14036
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET (16X22X2)
09168-16002
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PLUG (16X8)
09248-16012
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET (10X14X3.6)
09168-10002
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PLUG (10X12)
09247-10008
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, OIL PUMP DRIVE (NT:40)
16321-48G00
|
$57.36 | ||
|
Unavailable |
|||
|
#11
GEAR, OIL PUMP DRIVEN (NT:36)
16331-48G00
|
$86.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
PUMP ASSY,ENGINE OIL
16400-48G00
Superseded by 16400-48G01
|
$277.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROTOR SET, OIL PUMP
16410-48G00
|
$68.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE ASSY, OIL RELIEF
16440-24F00
|
$61.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
.O RING (D:1.9,ID:13)
09280-13004
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SHIM (10X18X0.5)
09181-10158
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN (4X15.8)
09261-04009
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-0635A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01547-0655A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN
04221-04069
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
08331-31109
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
STRAINER, ENG OIL FRONT
16530-48G00
Superseded by 16530-48G01
|
$45.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
STRAINER, ENG OIL REAR
16520-48G00
Superseded by 16520-48G01
|
$35.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
.O RING (D:3.7,ID:21.7)
09280-22016
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
