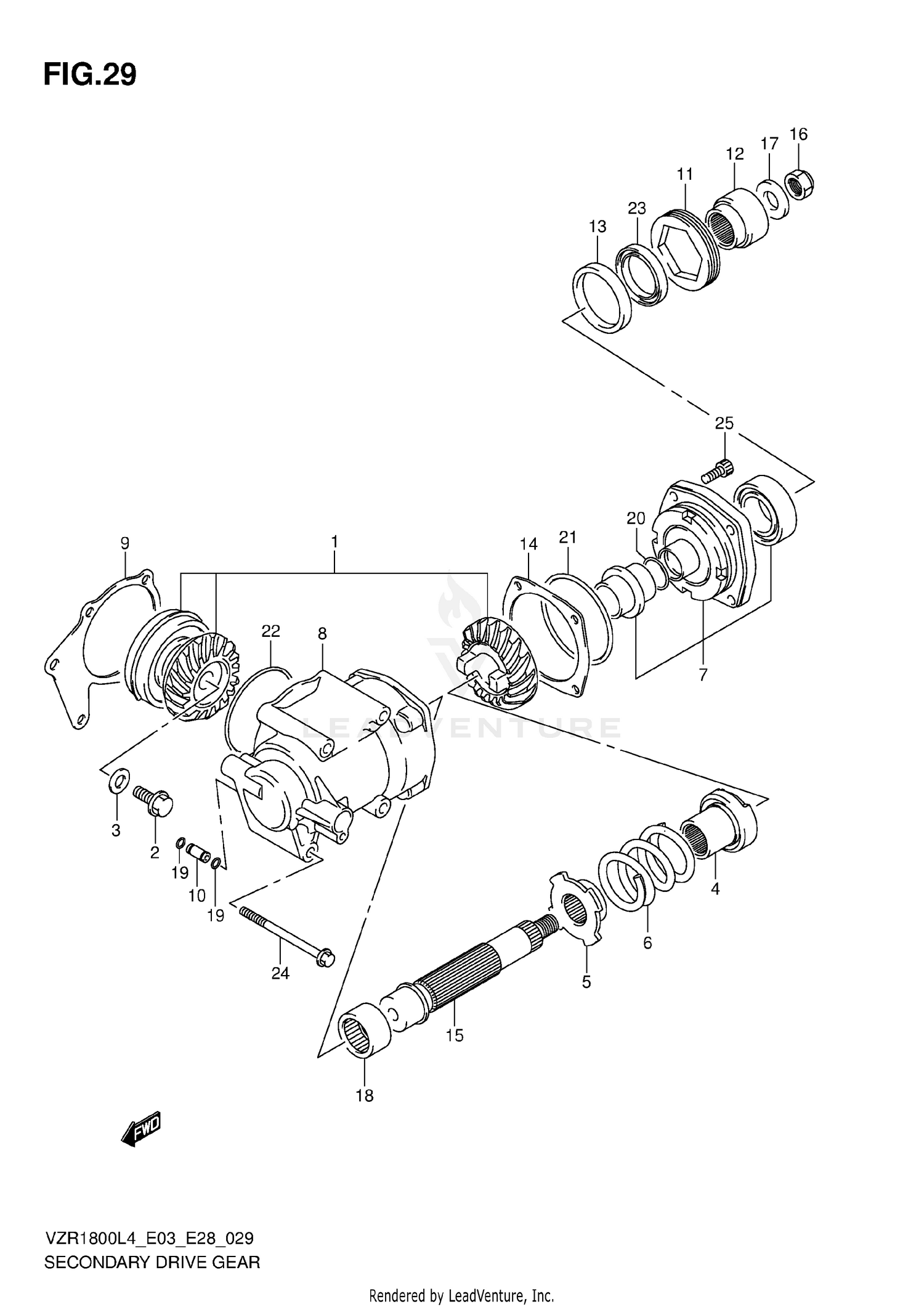

Secondary Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR SET, SECONDARY
24910-48830
|
$1,016.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (12X24)
09103-12084
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (12X35X2)
09160-12045
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
DOG, OUTPUT CAM
24923-48G10
|
$139.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
STOPPER, CAM SPRING
24924-48G10
|
$94.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, SECONDARY DAMPER
24925-48G00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER SECONDARY SET, DRIVEN
24926-48830
|
$351.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, SECONDARY GEAR
24931-48G30
|
$408.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM SET, DRIVE
24935-48810
|
$107.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, SECONDARY GEAR CASE OIL
24940-26D00
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPPER, SECONDARY DRIVEN
24942-26D00
|
$77.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
COUPLING, SECONDARY DRIVEN
24943-48G01
|
$114.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOUSING, OIL SEAL
24944-48G00
|
$56.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM SET, SECONDARY DRIVEN
24945-48810
|
$108.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, SECONDARY DRIVEN BEVEL
24961-48G00
|
$189.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09159-16003
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (16.5X36X4)
09160-16040
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING (32X48X22)
09263-32012
|
$118.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING (D:1.7,ID:6)
09280-06008
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING (D:2.4,ID:23.7)
09280-24010
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
O RING (D:3.7,ID:76.5)
09280-78003
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
O RING (D:2.4,ID:90.8)
09280-92003
|
$21.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (38X54X6)
09283-38011
|
$18.83 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01550-0895A
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (10X30)
09106-10087
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
