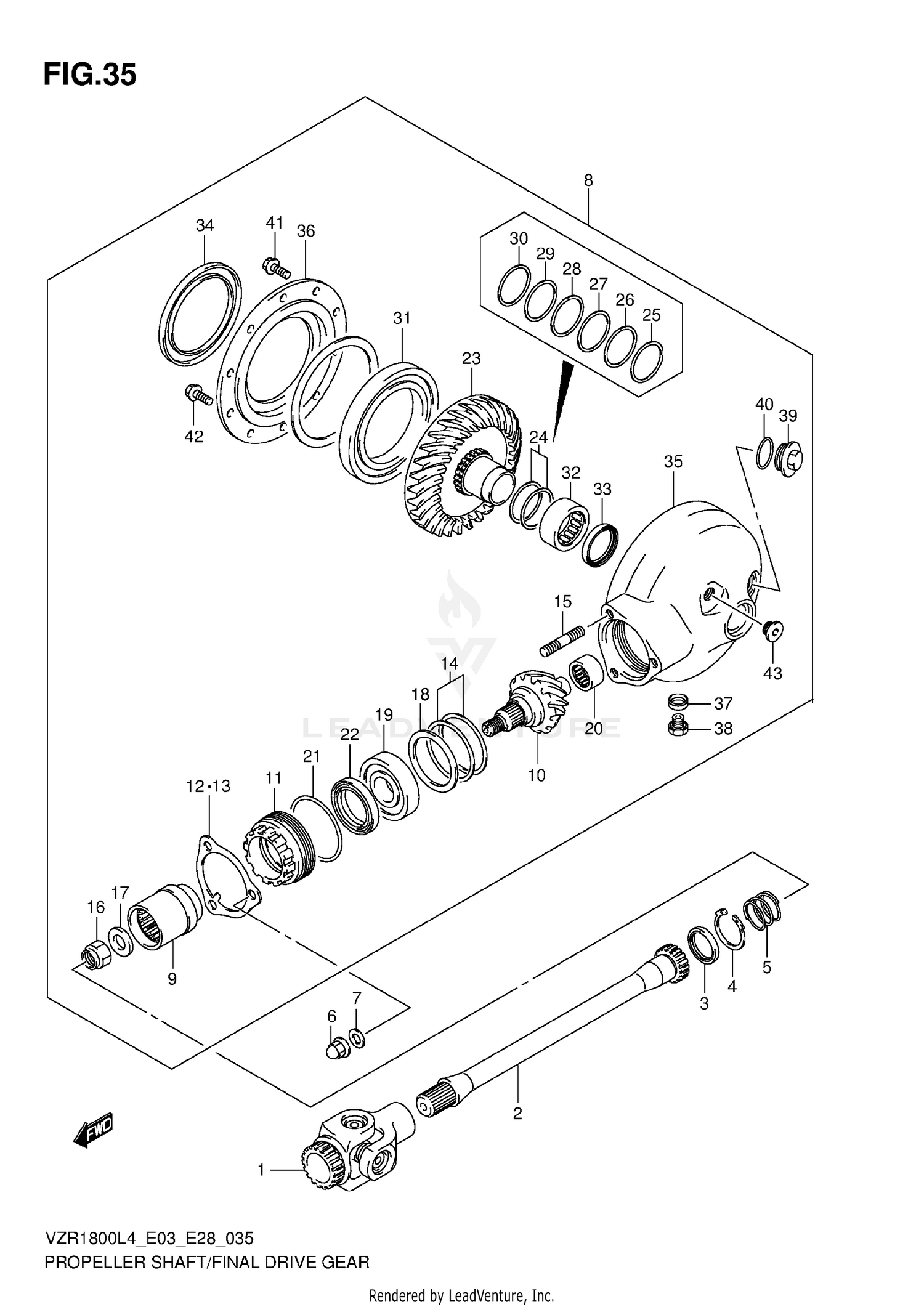

Propeller Shaft/final Drive Gear (vzr1800zl4 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YOKE, UNIVERSAL JOINT
27100-48G20
|
$375.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, PROPELLER (L:375)
27151-48G20
|
$297.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL (30X40.5X5.5)
09283-30026
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
09381-40003
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
09440-30008
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
09159-10026
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09164-10008
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR & CASE SET
27300-48850-019
Superseded by 27300-48851-019
|
$2,093.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
COUPLING, FINAL DRIVE GEAR
27172-24A00
|
$64.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, FINAL DRIVE BEVEL (NT:12)
27311-24A03
|
$217.41 | ||
|
Unavailable |
|||
|
#11
STOPPER, FINAL DRIVE
27312-24A02
|
$80.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, BEARING STOPPER
27313-38B00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, BEARING STOPPER
27313-38B10
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SHIM SET,FINAL DRIVE GEAR (T
27445-24810
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
STUD BOLT
09108-10106
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09159-16003
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (16X29X4)
09160-16029
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
.WASHER (54X68X1.5)
09160-54001
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING (28X68X18)
09262-28023
|
$134.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
.BEARING (20X34X18)
09263-20062
|
$49.34 | ||
|
Available to order. Add to View Price |
|||
|
#21
O RING (D:3.1,ID:63.9)
09280-64003
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
.OIL SEAL (45.5X58X7)
09283-47002
|
$18.06 | ||
|
Available to order. Add to View Price |
|||
|
#23
.GEAR,FINAL DRIVEN BEVEL (NT:
27320-48G00
|
$544.12 | ||
|
Available to order. Add to View Price |
|||
|
#24
.SHIM SET,FINAL DRIVEN GEAR R
27326-48811
|
$111.28 | ||
|
Available to order. Add to View Price |
|||
|
#25
..SHIM (40X46.8X0.95)
09181-40011
|
$3.27 | ||
|
Unavailable |
|||
|
#26
..SHIM (40X46.8X1.05)
09181-40013
|
$3.97 | ||
|
Unavailable |
|||
|
#27
..SHIM (40X46.8X1.1)
09181-40014
|
|||
|
Unavailable |
|||
|
#28
..SHIM (40X50X1.2)
09181-40176
|
$2.68 | ||
|
Unavailable |
|||
|
#29
..SHIM (40X50X1.4)
09181-40182
|
$3.09 | ||
|
Unavailable |
|||
|
#30
..SHIM (40X50X1.5)
09181-40212
|
$3.39 | ||
|
Unavailable |
|||
|
#31
.BEARING (85X130X14)
09262-85001
|
$212.39 | ||
|
Available to order. Add to View Price |
|||
|
#32
.BEARING (40X50X20)
09263-40016
|
$72.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
.OIL SEAL (38X46X6)
09283-38026
|
$20.18 | ||
|
Available to order. Add to View Price |
|||
|
#34
.OIL SEAL (85X110X11)
09289-85001
|
$51.65 | ||
|
Available to order. Add to View Price |
|||
|
#35
.CASE,FINAL GEAR (BLACK)
27450-48G70-019
|
$722.37 | ||
|
Available to order. Add to View Price |
|||
|
#36
.CASE,FINAL GEAR BEARING
27461-38B00
|
$256.73 | ||
|
Available to order. Add to View Price |
|||
|
#37
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#38
PLUG (MAGNETO)
09247-14002
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#39
.PLUG (30X9)
09259-30007
|
$22.72 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING (D:3.1,ID:26.4)
09280-26006
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#41
.BOLT
01550-0825A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
01550-1025A
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#43
PLUG (16X8)
09248-16012
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
