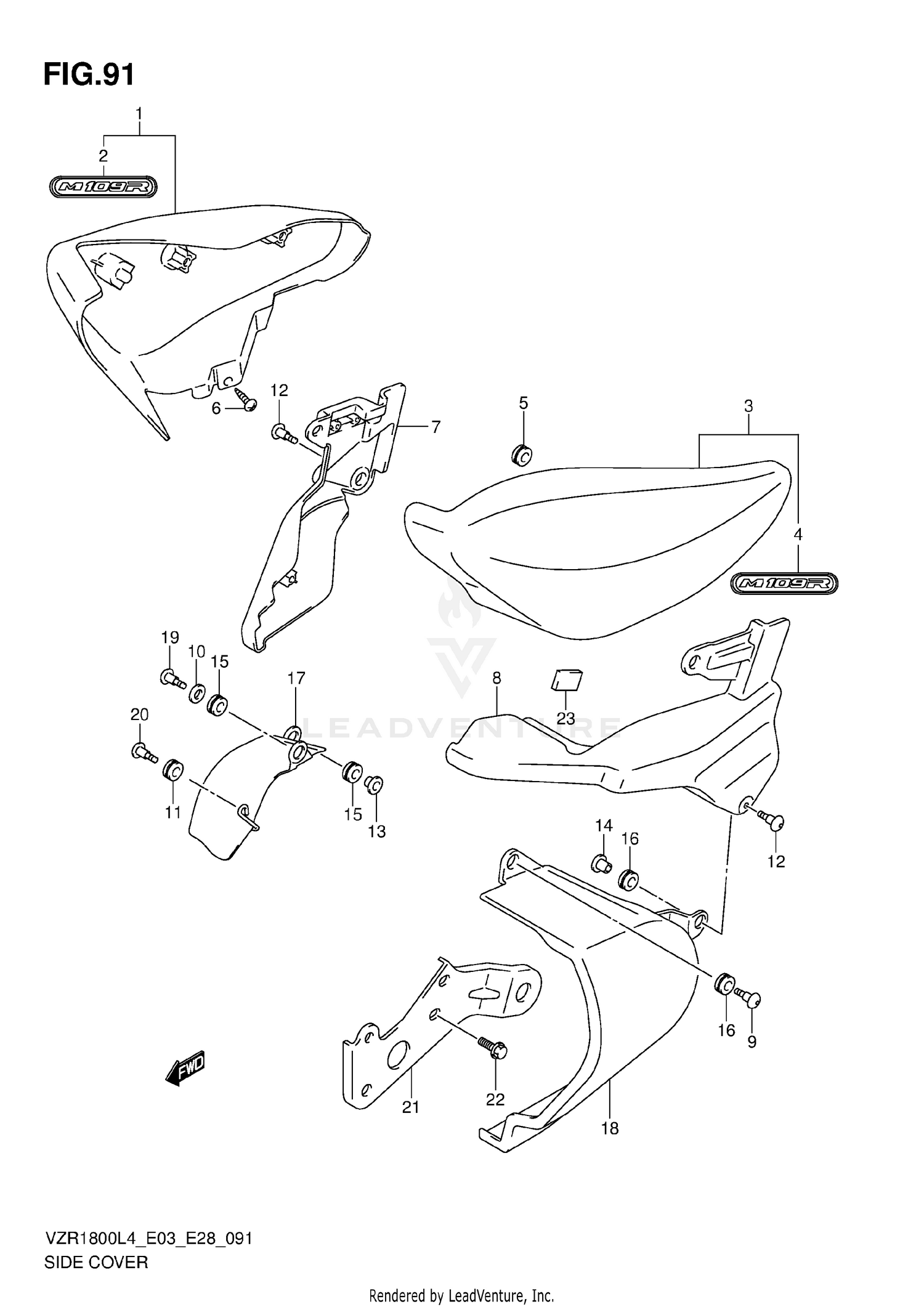

Side Cover (vzr1800zl4 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (SILVER)
47110-48G50-YMD
|
$373.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM "M1800R"
68131-48G00
Superseded by 68131-48G01
|
$43.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,SIDE,L(SI
47210-48G50-YMD
Superseded by 47210-48G51-YMD
|
$306.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM "M1800R"
68131-48G00
Superseded by 68131-48G01
|
$43.98 | ||
|
Unavailable |
|||
|
#5
CUSHION
09320-08018
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, SIDE LOWER RH
47121-48G00
|
$43.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, SIDE LOWER LH
47221-48G00
|
$43.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW (6X20)
09139-06126
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (10.5X20X2.3)
09160-10123
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09320-09501
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (6X25)
09139-06029
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SPACER (6.5X10X11.6)
09180-06319
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09169-06075
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION (8.5X20X8)
09320-08021
Superseded by 09320-08510
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION
09320-08070
|
$12.94 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, LOWER RH
47130-48G00
|
$357.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, LOWER LH
47231-48GB0
|
$631.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW (6X20)
09139-06126
|
$5.06 | ||
|
Unavailable |
|||
|
#20
SCREW (6X20)
09139-06126
|
$5.06 | ||
|
Unavailable |
|||
|
#21
BRACKET, LOWER COVER LH
47250-48G00
|
$18.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION,FRAME COVER
47161-19C00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
