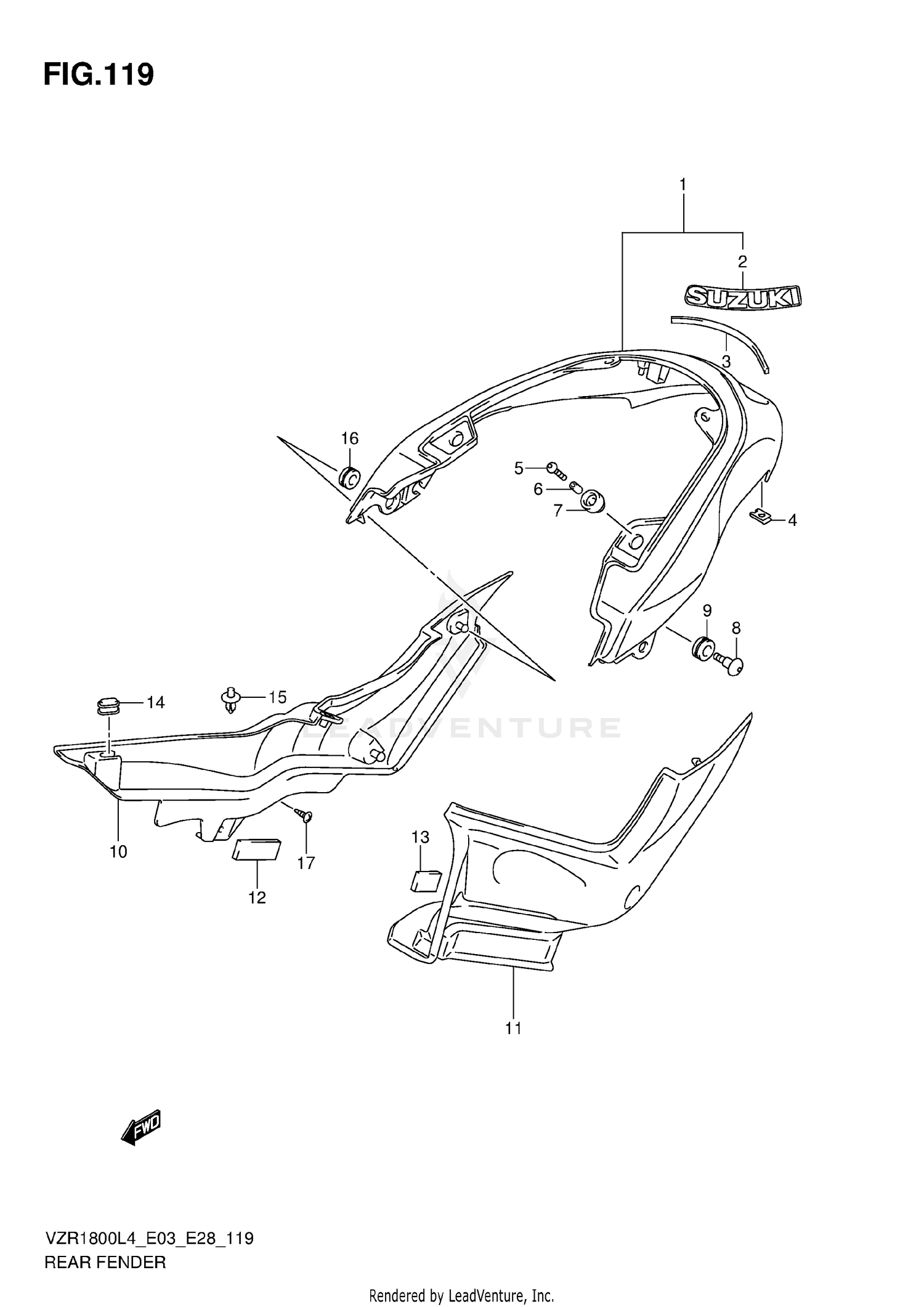

Rear Fender (vzr1800l4 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER,REAR
63110-48G00-YVB
Superseded by 63110-48G01-YVB
|
$379.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM,"SUZUKI"
68641-19F00-YD8
Superseded by 68641-19F01-YD8
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION, LAMP
63117-39G00
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,COWL
94484-24F00
|
$4.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW (6X16)
09139-06139
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER (6.5X10X9.4)
09180-06286
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-10045
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X20)
09139-06190
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-09016
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, FENDER RH (BLACK)
63171-48G01-YVB
|
$192.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, FENDER LH (BLACK)
63181-48G01-YVB
|
$192.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION,FUEL PIPE
15439-70G10
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION,FRAME COVER
47161-19C00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION,FUEL TANK COVER
44276-29G00
Superseded by 44276-29G01
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP (BLACK)
09409-06314-5PK
|
$3.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CUSHION
09320-08028
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW
03541-0516A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
