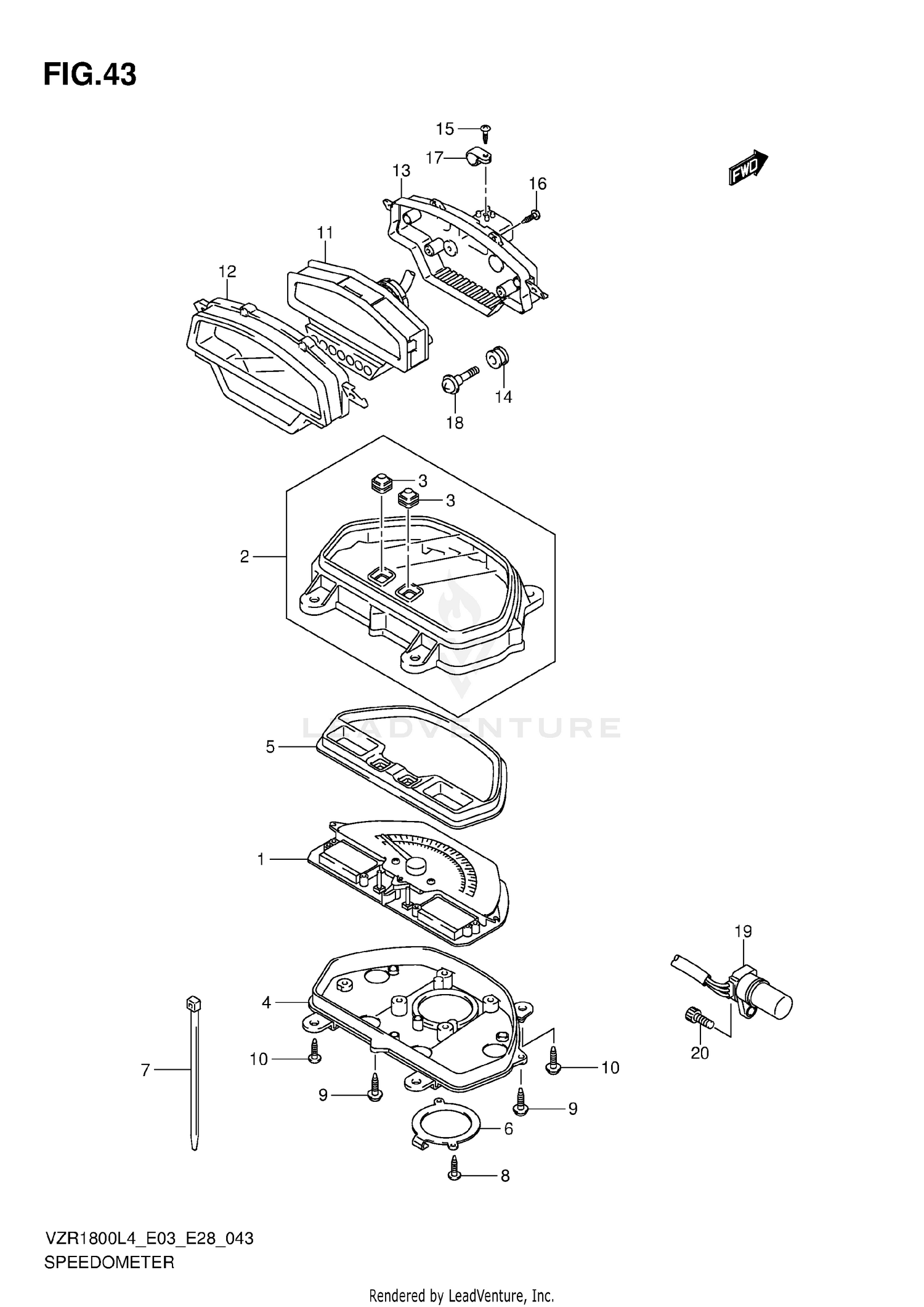

Speedometer (vzr1800l4 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER
34120-48GB0
|
$923.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
UPPER CASE ASSY
34150-48G00
|
$133.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, SWITCH
34124-32F00
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOWER CASE
34111-48G40
|
$91.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
REFLECTOR ASSY
34125-48G00
|
$77.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET
34950-48G00
|
$23.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
34192-48G00
|
$15.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SCREW (3X12)
34183-09F00
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW (3X14)
34149-03G00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
03541-0516A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
TACHOMETER ASSY
34220-48G30
|
$966.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE ASSY, UPPER
34250-48G30
|
$130.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE ASSY, LOWER
34211-48G30
|
$92.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION,SPEEDOMETER
34955-13E00
Superseded by 34955-13E01
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW (4X14)
34149-17E10
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#16
.SCREW
09132-03008
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
36385-24A30
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
03541-0516A
|
$1.65 | ||
|
Unavailable |
|||
|
#19
SENSOR,SPEED
34990-48G00
Superseded by 34990-48G01
|
$171.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
07130-0616A
Superseded by 07130-0616B
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
