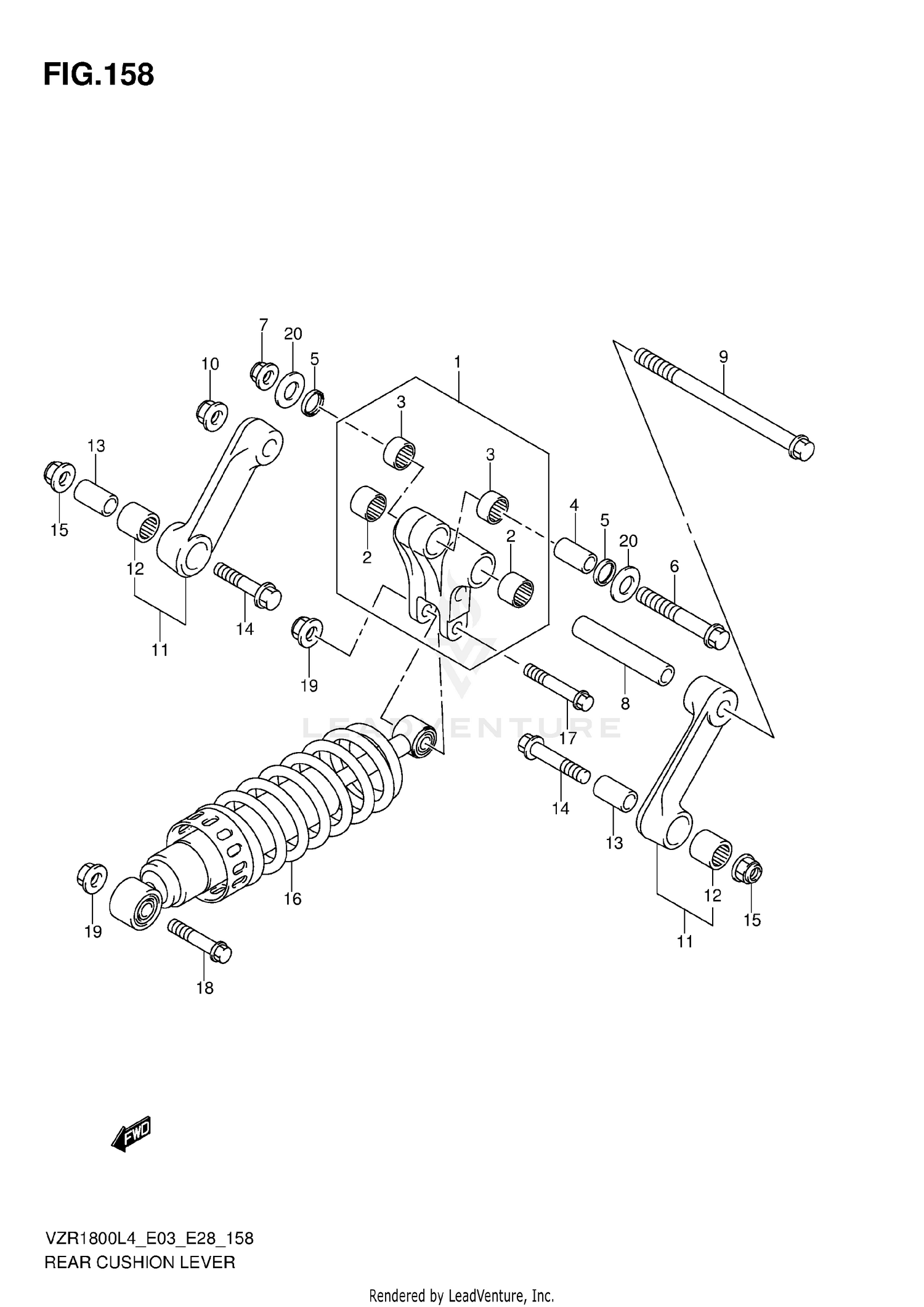

Rear Cushion Lever (vzr1800l4 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER SET,REAR CUSHION
62600-48870
|
$313.39 | ||
|
Unavailable |
|||
|
#2
.BEARING
09263-20074
Superseded by 09263-20116
|
$37.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (20X26X14)
09263-20090
|
$20.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, UPPER
62684-48G00
|
$19.54 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL (20X26X4)
09284-20003
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FRONT
62658-33D00
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08319-3114A
|
$11.94 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER (14X20X102)
09180-14018
|
$29.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, LOWER
62621-48G00
|
$29.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08319-3114A
|
$11.94 | ||
|
Unavailable |
|||
|
#11
ROD SET,RR CUSHION
62600-48880
Superseded by 62600-48881
|
$176.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BEARING
09263-20074
Superseded by 09263-20116
|
$37.93 | ||
|
Unavailable |
|||
|
#13
SPACER (14X20X34)
09180-14014
|
$18.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (14X66)
09103-14016
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08319-3114A
|
$11.94 | ||
|
Unavailable |
|||
|
#16
ABSORBER ASSY, REAR SHOCK
62100-48G40
|
|||
|
Unavailable |
|||
|
#17
BOLT, REAR CUSHION LEVER FRONT
62658-01C60
|
$14.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (12X57)
09103-12042
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
09159-12056
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
08211-14341
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
