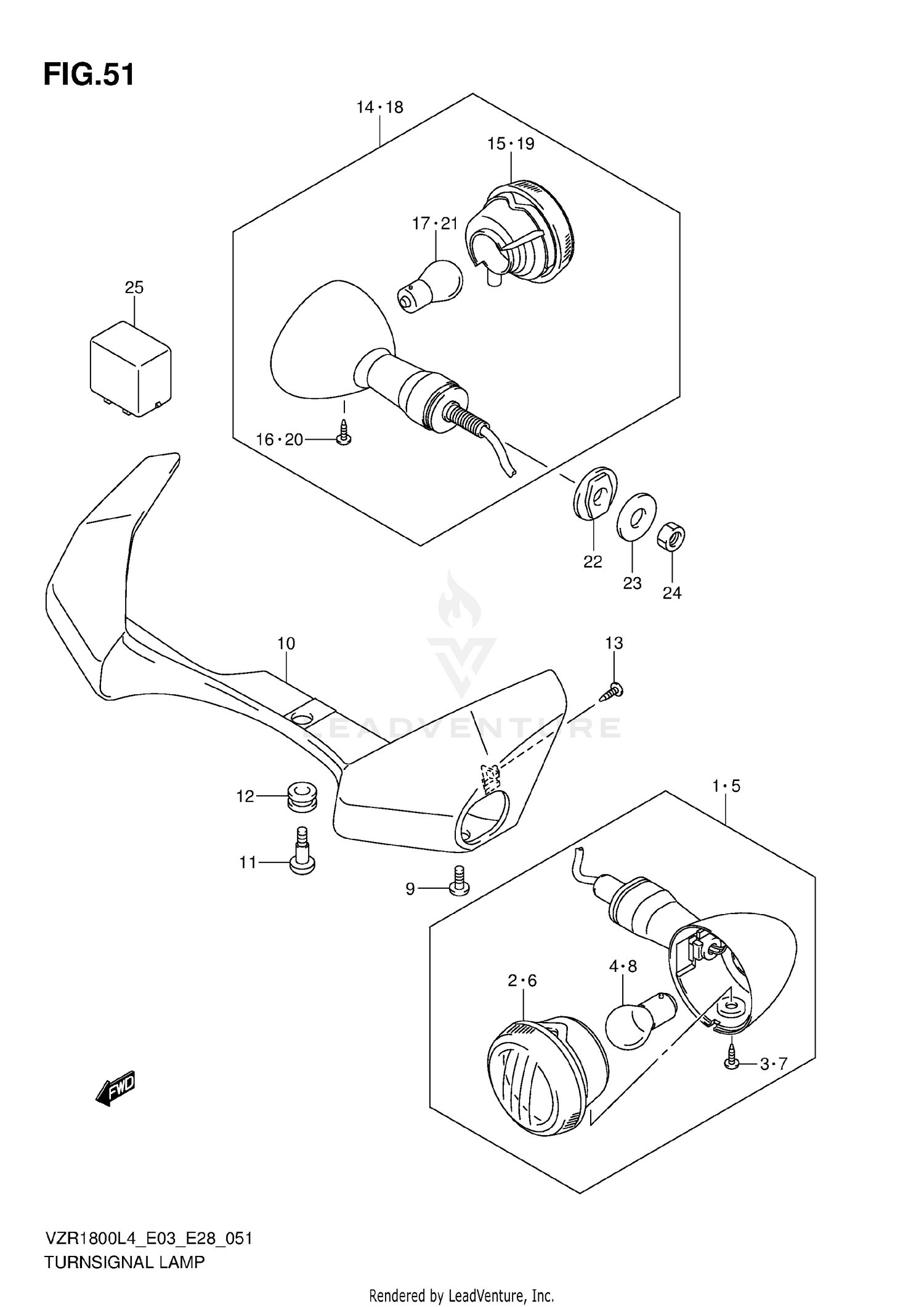

Turnsignal Lamp (vzr1800zl4 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURNSIGNAL RH
35601-38AH0
|
$196.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35610-48EB0
|
$54.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V23/8W)
09471-12224
|
$42.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
LAMP ASSY, FRONT TURNSIGNAL LH
35602-38AH0
|
$187.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS
35630-48EB0
|
$56.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Unavailable |
|||
|
#8
BULB (12V23/8W)
09471-12224
|
$42.18 | ||
|
Unavailable |
|||
|
#9
SCREW
02142-0612A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, FRONT TURNSIGNAL
35641-48G00
|
$203.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (6X16)
09139-06146
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09320-09016
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW
03541-0510A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
LAMP ASSY, REAR TURNSIGNAL RH
35603-48ED0
|
$166.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
LENS
35630-38AF0
|
$54.34 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Unavailable |
|||
|
#17
BULB (12V,21W)
09471-12186
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
LAMP ASSY,RR TURNSIGNAL LH
35604-38AF0
Superseded by 35604-38AF1
|
$115.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
LENS
35610-38AF0
|
$54.34 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Unavailable |
|||
|
#21
BULB (12V,21W)
09471-12186
|
$15.64 | ||
|
Unavailable |
|||
|
#22
SPACER, REAR TURNSIGNAL LAMP
35695-17C00
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (10.5X30X2.3)
09160-10501
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
08310-0010A
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$110.65 | ||
|
Available to order. Add to View Price |
|||
