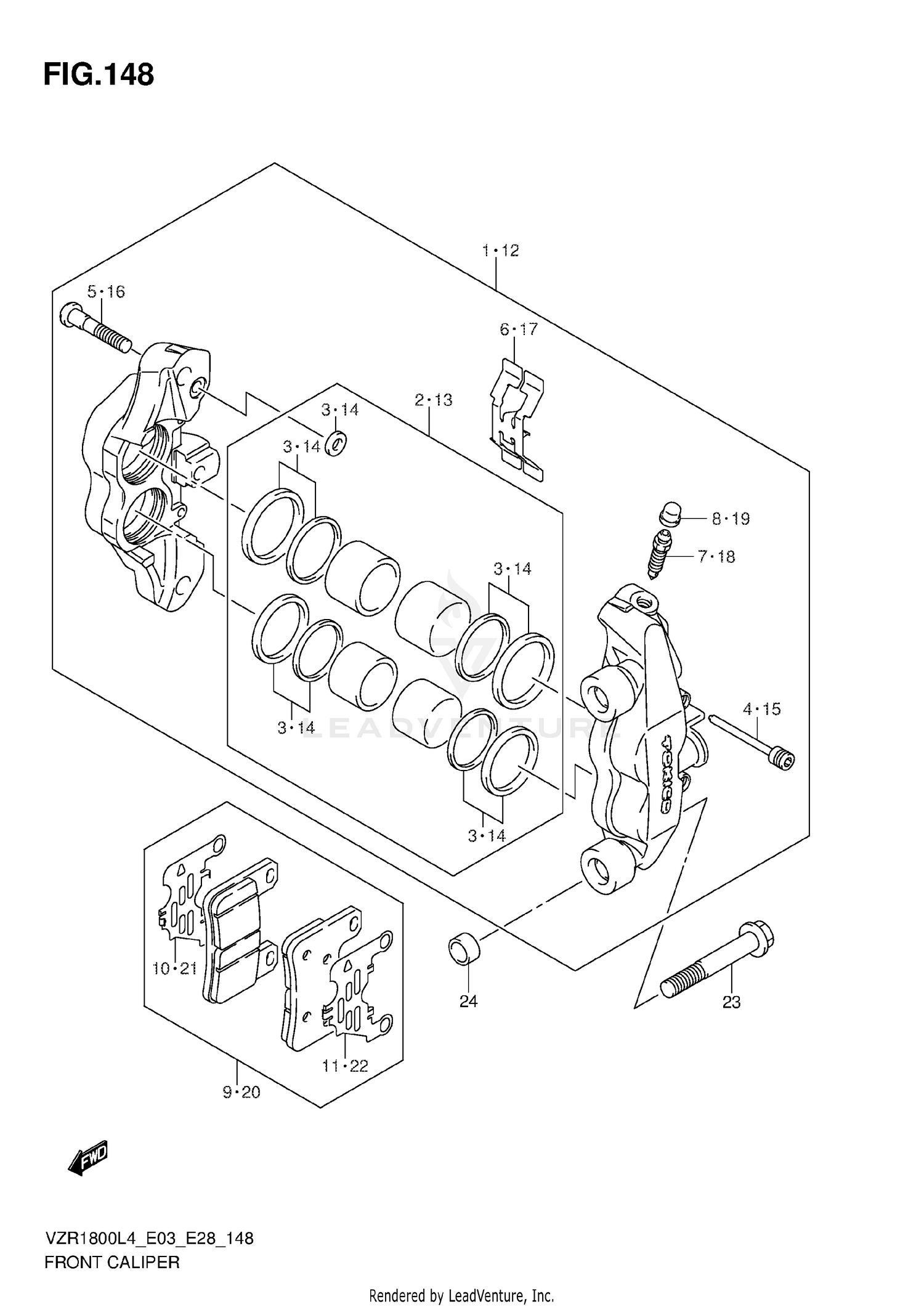

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT RH
59100-41G10-999
|
$399.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SET
59100-35870
|
$117.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
59100-35820
Superseded by 59100-29830
|
$52.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
59141-41G10
|
$33.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
59145-18G00
|
$10.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD
59151-29G00
|
$15.86 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEEDER
59121-18410
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, BLEEDER PLUG
55156-66310
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
PAD & SHIM SET
59100-29850
|
$56.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PAD A
59171-41G00
|
$16.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM, PAD B
59172-41G00
|
$16.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
CALIPER ASSY, FRONT LH
59300-41G10-999
|
$567.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON SET
59100-35870
|
$117.13 | ||
|
Unavailable |
|||
|
#14
SEAL SET, PISTON
59100-35820
Superseded by 59100-29830
|
$52.63 | ||
|
Unavailable |
|||
|
#15
PIN
59141-41G10
|
$33.34 | ||
|
Unavailable |
|||
|
#16
BOLT
59145-18G00
|
$10.73 | ||
|
Unavailable |
|||
|
#17
SPRING, PAD
59151-29G00
|
$15.86 | ||
|
Unavailable |
|||
|
#18
BLEEDER
59121-18410
|
$10.78 | ||
|
Unavailable |
|||
|
#19
CAP, BLEEDER PLUG
55156-66310
|
$6.38 | ||
|
Unavailable |
|||
|
#20
PAD & SHIM SET
59100-29850
|
$56.59 | ||
|
Unavailable |
|||
|
#21
SHIM, PAD A
59171-41G00
|
$16.66 | ||
|
Unavailable |
|||
|
#22
SHIM, PAD B
59172-41G00
|
$16.66 | ||
|
Unavailable |
|||
|
#23
BOLT (10X70)
09103-10392
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, CALIPER
59151-41G00
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
