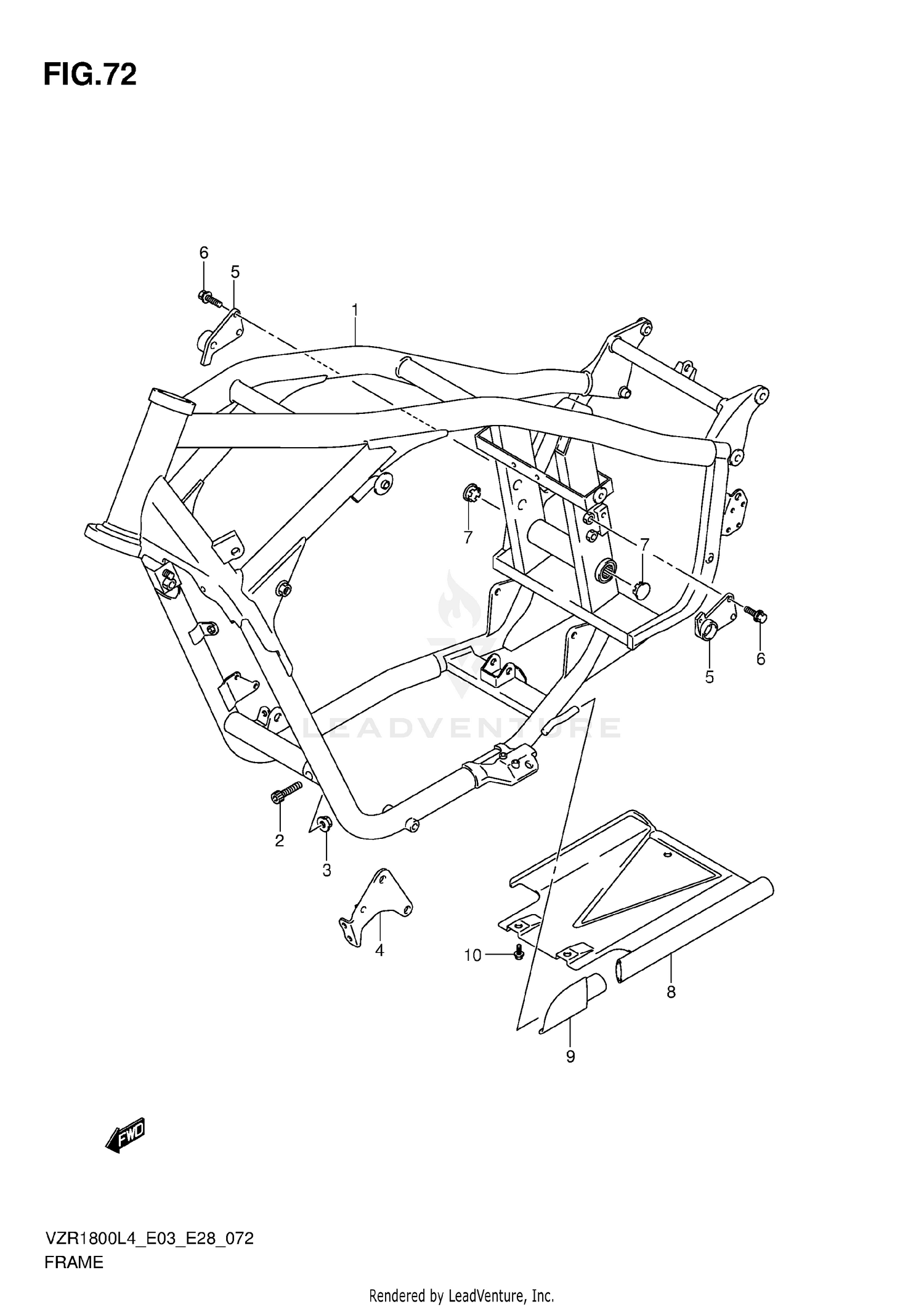

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-48G40-019
|
$5,312.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
07130-1035B
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
08319-3110A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, MOUONT FRONT LH
41920-48G10
|
$39.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, MOUNT REAR
41931-48G20
|
$119.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01580-0830A
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, ENG MTG BOLT
43585-48G10
|
$18.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, UNDER
42560-48G00
|
$172.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, UNDER COVER
42567-48G00
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01550-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
