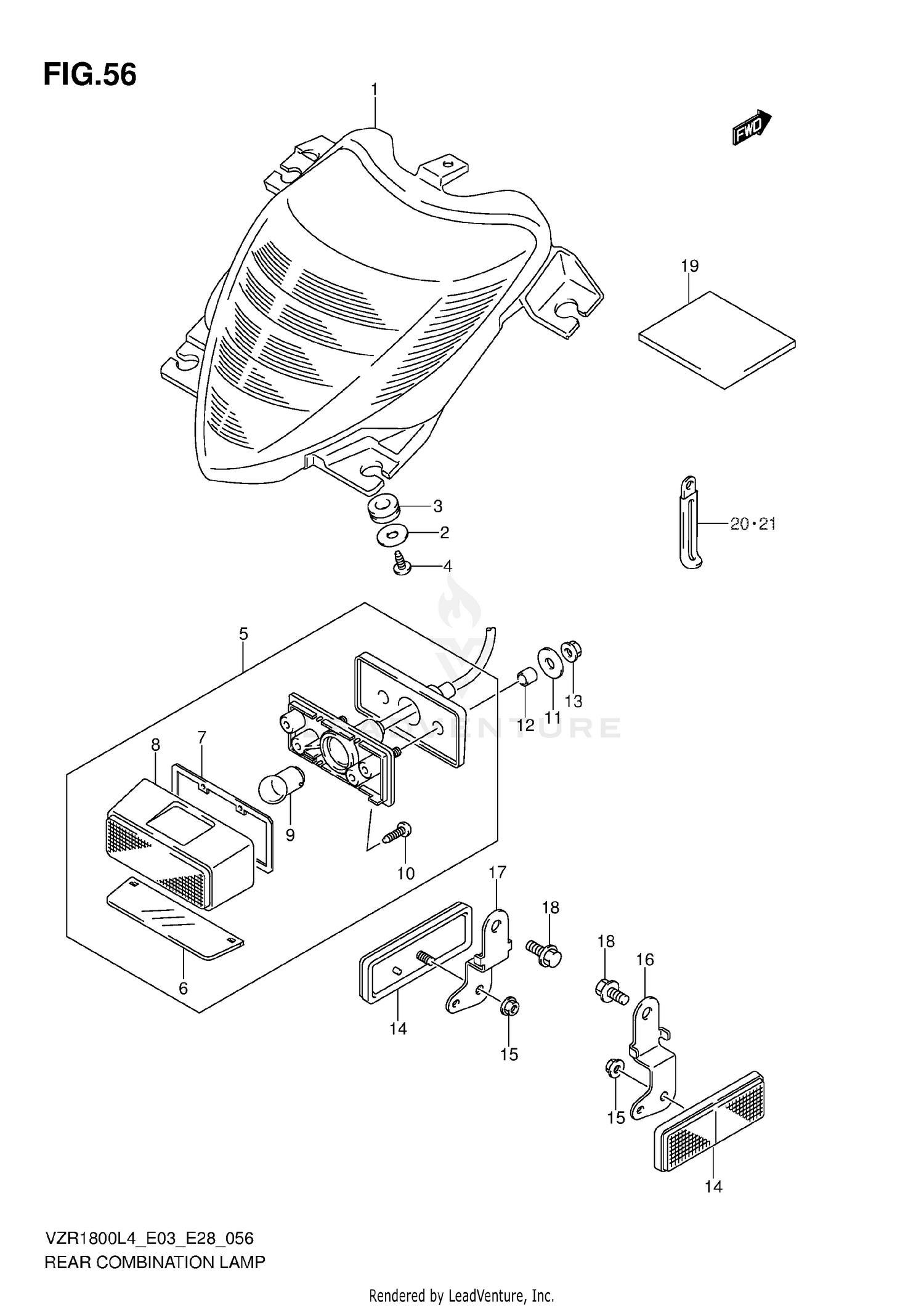

Rear Combination Lamp (vzr1800l4 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMB
35710-48G50
|
$443.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (5.5X20X1.2)
09160-05501
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION
09320-10054
Superseded by 09320-10073
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
03541-0512A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
LAMP ASSY, LICENSE
35910-41G01
Superseded by 35910-41G02
|
$79.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
.LENS,LICENSE
35912-41G01
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
35913-41G00
|
$15.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, LICENSE LAMP
35917-41G00
|
$38.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V5W)
09471-12140
Superseded by 09471-12058
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
03211-0416A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (6.5X20X1.2)
09160-06077
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER (6.5X9X8)
09180-06261
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08316-1006A
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
REFLECTOR ASSY, REAR SIDE
35970-07F01
|
$25.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08316-1005A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, REAR SIDE RR RH
35975-48G00
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, REAR SIDE RR LH
35976-48G00
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
02162-0612A
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION,HELMET BOX (60X60X3.0
92213-33G00
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#21
CLAMP (L:45)
09404-10415
|
|||
|
Unavailable |
|||
