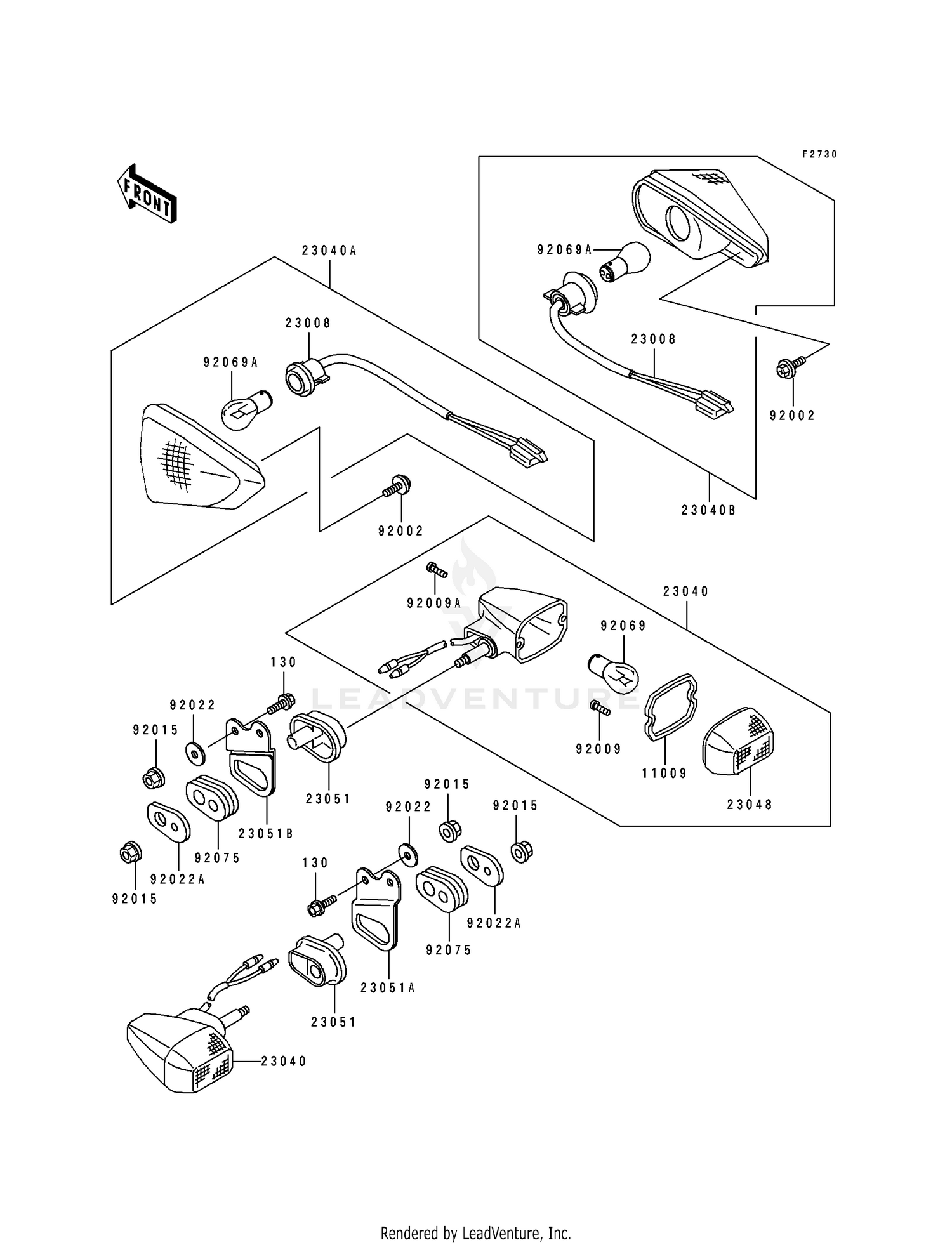

Turn Signal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,SIGNAL LAMP
11009-1402
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,SIGNAL LAMP,FR
23008-1464
Superseded by 23008-1262
|
$27.87 | ||
|
Available to order. Add to View Price |
|||
|
#23040
LAMP-SIGNAL-FR
23040-1116
|
$75.36 | ||
|
Available to order. Add to View Price |
|||
|
#23040A
LAMP-SIGNAL,FR,LH
23040-1213
|
$117.92 | ||
|
Available to order. Add to View Price |
|||
|
#23040B
LAMP-SIGNAL,FR,RH
23040-1214
|
$117.92 | ||
|
Available to order. Add to View Price |
|||
|
#23048
LENS-SIGNAL LAMP
23048-1054
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#23051
BRACKET-SIGNAL LAMP
23051-1168
Superseded by 23051-1251
|
$24.58 | ||
|
Available to order. Add to View Price |
|||
|
#23051A
BRACKET-SIGNAL LAMP,R
23051-1211
|
$11.88 | ||
|
Available to order. Add to View Price |
|||
|
#23051B
BRACKET-SIGNAL LAMP,R
23051-1212
|
$11.88 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,TAPPING,5X16
92002-1472
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,3X16
92009-1115
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,4X20
92009-1304
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1237
Superseded by 92015-1233
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6,BLACK
92022-1346
|
$0.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,SIGNAL LAMP
92022-1672
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 32CP(23W)
92069-055
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 32/3CP(23/8W)
92069-060
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SIGNAL LAMP
92075-1698
|
$9.84 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X16
130J0616
Superseded by 130BB0616
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
