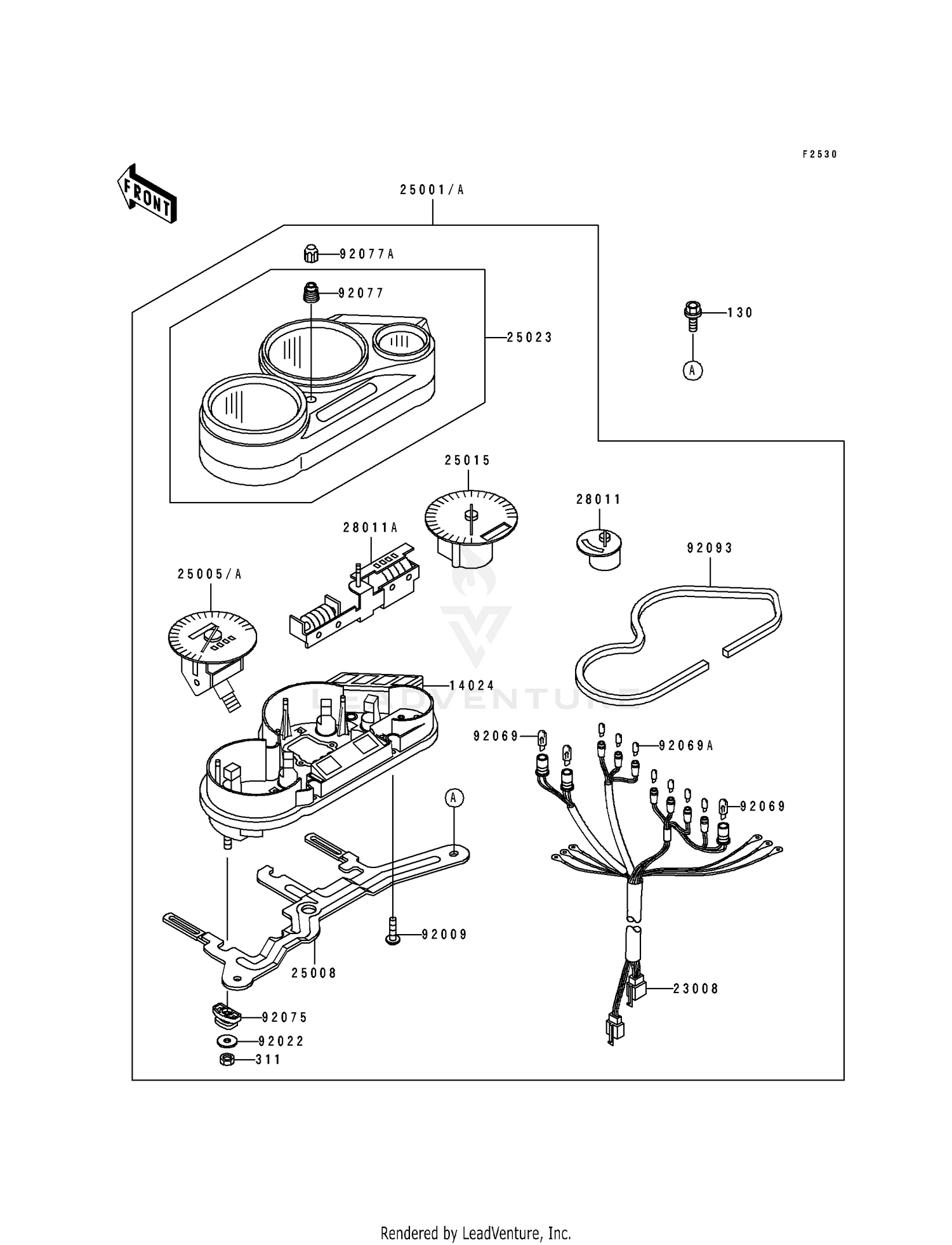

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14024
COVER,METER HOUSING
14024-1887
|
$108.06 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,METER
23008-1419
|
$137.17 | ||
|
Available to order. Add to View Price |
|||
|
#25001
METER-ASSY,MPH
25001-1792
|
$1,298.58 | ||
|
Available to order. Add to View Price |
|||
|
#25001A
METER-ASSY,KPH
25001-1793
|
|||
|
Unavailable |
|||
|
#25005
SPEEDOMETER,MPH
25005-1437
Superseded by 25005-1441
|
$295.08 | ||
|
Available to order. Add to View Price |
|||
|
#25005A
SPEEDOMETER,KPH
25005-1438
|
|||
|
Unavailable |
|||
|
#25008
BRACKET-METER
25008-1160
|
$71.96 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER,X1000R/MIN
25015-1289
|
$371.46 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER-METER CASE,UPP
25023-1167
|
$176.12 | ||
|
Available to order. Add to View Price |
|||
|
#28011
METER,TEMP
28011-1116
|
$115.08 | ||
|
Available to order. Add to View Price |
|||
|
#28011A
METER
28011-1118
|
$172.87 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X16
92009-1163
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X16X1.2
92022-263
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 1.7W,T10
92069-1059
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,14V 3W,T6.5
92069-1068
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,METER BRACKET
92075-1495
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB,TRIP RESET
92077-1087
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#92077A
KNOB,TRIP RESET KNOB
92077-1094
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,METER
92093-1316
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X14
130C0614
Superseded by 130BB0614
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.52 | ||
|
Available to order. Add to View Price |
|||
