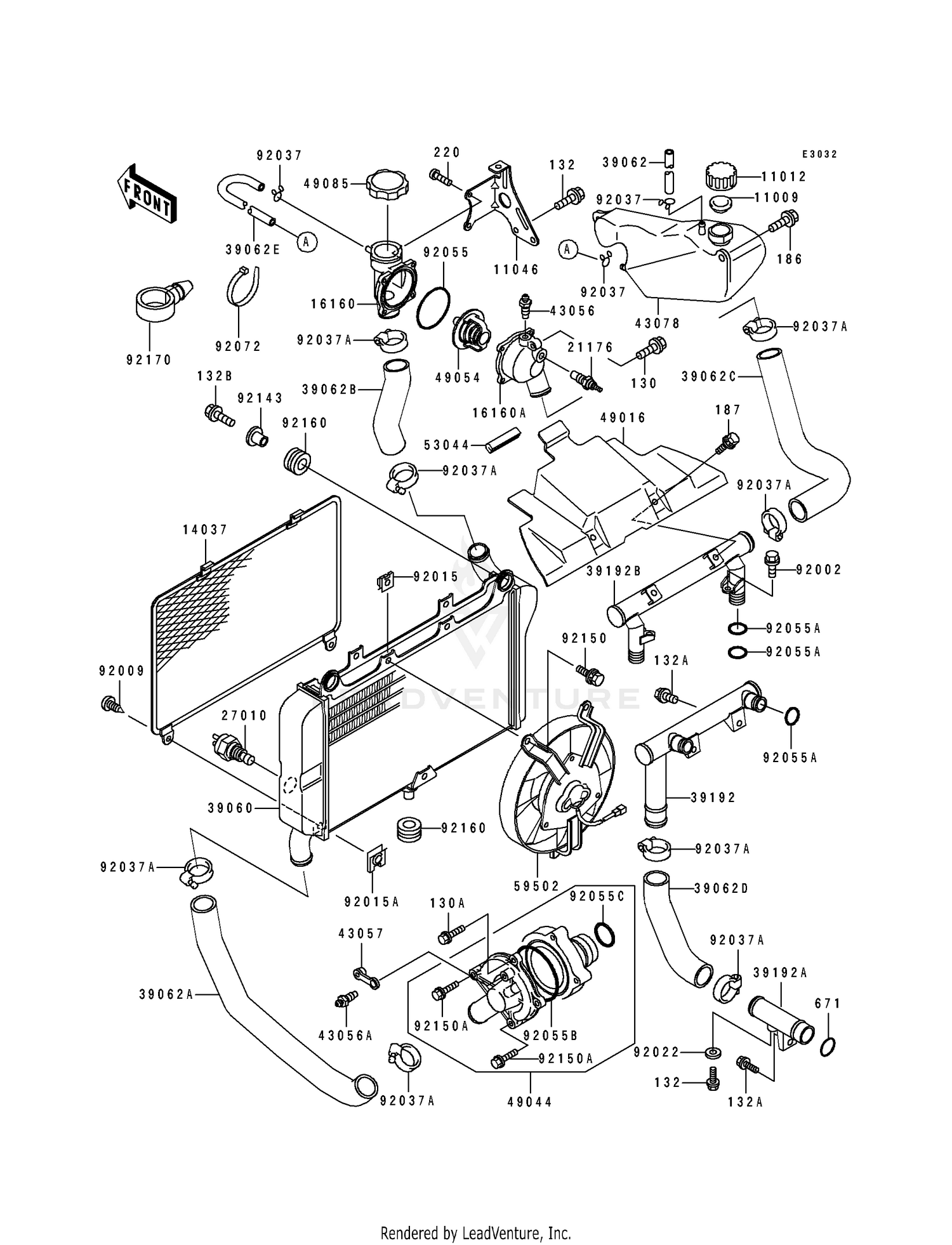

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,RESERVOIR TANK CAP
11009-1145
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1084
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11046
BRACKET,THERMO BODY
11046-1944
|
$12.72 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN
14037-1129
|
$88.72 | ||
|
Available to order. Add to View Price |
|||
|
#16160
BODY,THERMOSTAT,UPP
16160-1116
|
$106.95 | ||
|
Available to order. Add to View Price |
|||
|
#16160A
BODY,THERMOSTAT,LWR
16160-1117
|
$85.47 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,WATER
21176-1054
|
$75.00 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,FAN
27010-1202
|
$100.73 | ||
|
Available to order. Add to View Price |
|||
|
#39060
RADIATOR
39060-1095
|
$904.57 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,5.5X10.5
39062-1110
Superseded by 39062-0080
|
$38.54 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,RADIATOR
39062-1394
|
$64.14 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,RADIATOR
39062-1395
|
$28.08 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING,THERMO-H
39062-1396
|
$51.78 | ||
|
Available to order. Add to View Price |
|||
|
#39062D
HOSE-COOLING,PUMP-CYL
39062-1397
Superseded by 39062-1546
|
$42.93 | ||
|
Available to order. Add to View Price |
|||
|
#39062E
HOSE-COOLING,CAP-RESE
39062-1429
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#39192
PIPE-WATER
39192-1033
|
$141.34 | ||
|
Available to order. Add to View Price |
|||
|
#39192A
PIPE-WATER
39192-1034
|
$58.47 | ||
|
Available to order. Add to View Price |
|||
|
#39192B
PIPE-WATER
39192-1039
|
$135.58 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BLEEDER SET
43056-003
Superseded by 43085-001
|
$25.01 | ||
|
Available to order. Add to View Price |
|||
|
#43056A
BREATHER-BRAKE
43056-1051
|
$16.12 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-1109
|
$70.38 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL
49016-1154
|
$36.76 | ||
|
Available to order. Add to View Price |
|||
|
#49044
PUMP-WATER
49044-1067
Superseded by 49044-1087
|
$334.10 | ||
|
Available to order. Add to View Price |
|||
|
#49054
THERMOSTAT
49054-1051
|
$42.20 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-1054
Superseded by 49085-1067
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,L=40
53044-1174
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#59502
FAN-ASSY
59502-1094
|
$815.05 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,6X12
92002-1572
Superseded by 92150-1826
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X16
92009-1436
Superseded by 92172-0010
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,6MM
92015-1758
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1
92022-304
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1985
Superseded by 92171-0179
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,53.5X2.6
92055-112
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1282
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,WATER PUMP INSIDE
92055-1423
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O,33.2X2.4
92055-1424
|
$6.43 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=149
92072-031
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1450
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X12
92150-1186
|
$3.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92150A
BOLT
92150-1379
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1007
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1067
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X12
130G0612
Superseded by 130BA0612
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X40
130G0640
Superseded by 130BA0640
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X10
132J0610
Superseded by 132BB0610
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X12
132J0612
Superseded by 132BB0612
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL
132J0830
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#186
BOLT-UPSET-WP
186H0614
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#187
BOLT-UPSET-WSP
187G0612
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X14
220D0514
Superseded by 220AA0514
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,25MM
671B2525
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
