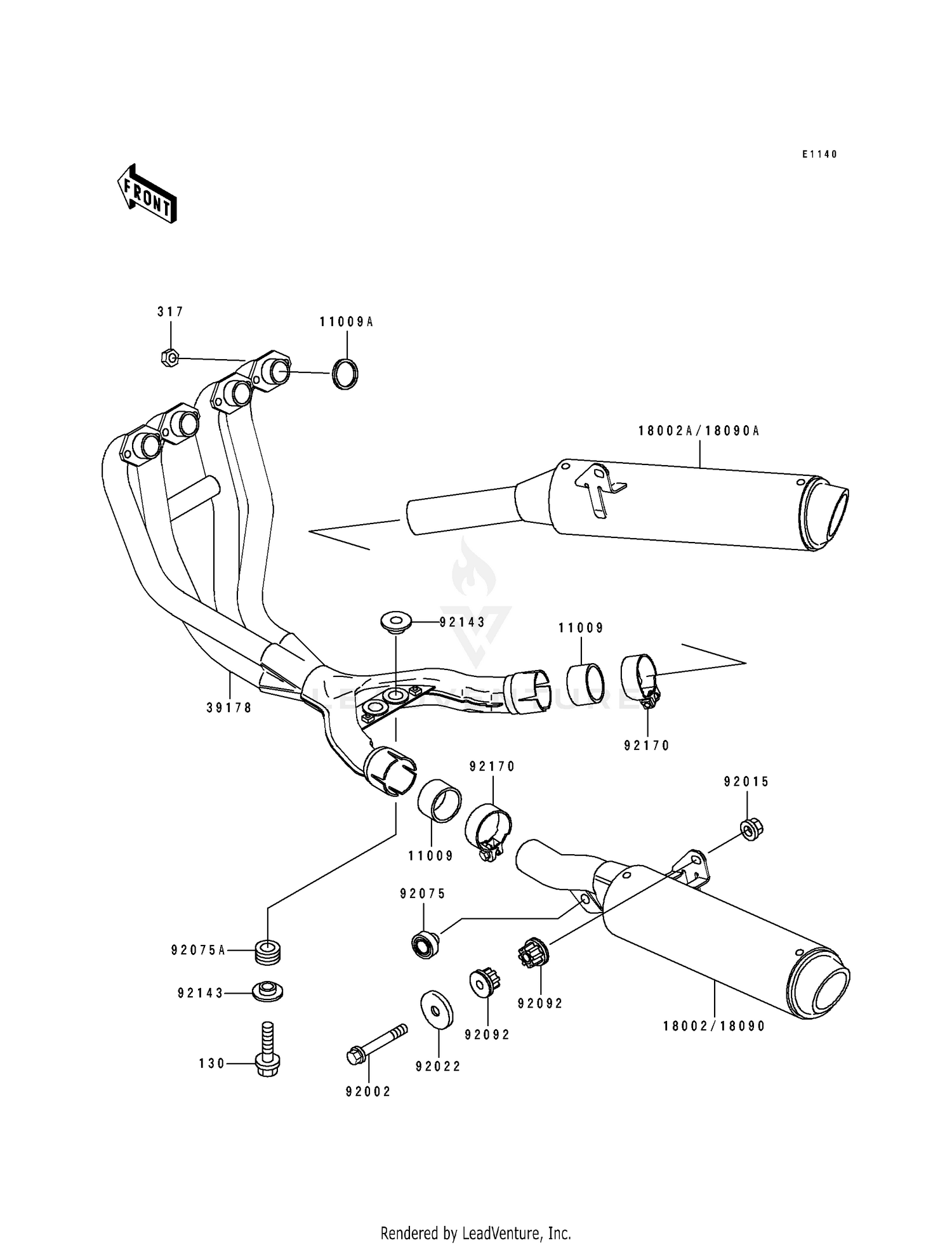

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,EXHAUST PIPE H
11009-1680
Superseded by 11060-1330
|
$27.73 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,EXHAUST PIPE HOLDER
11009-1856
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#18002
BODY-COMP-MUFFLER,LH
18002-1947
|
$591.05 | ||
|
Available to order. Add to View Price |
|||
|
#18002A
BODY-COMP-MUFFLER,RH
18002-1948
|
$591.05 | ||
|
Available to order. Add to View Price |
|||
|
#18090
BODY-COMP-MUFFLER,LH
18090-1083
|
|||
|
Unavailable |
|||
|
#18090A
BODY-COMP-MUFFLER,RH
18090-1084
|
|||
|
Unavailable |
|||
|
#39178
MANIFOLD-COMP-EXHAUST
39178-1158
|
$1,237.14 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,10X55
92002-1127
|
$9.84 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1387
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-289
|
$16.73 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-015
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,MUFFLER
92075-1621
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER,MUFFLER
92092-1013
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1395
Superseded by 92152-1272
|
$7.43 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1154
|
$34.32 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,10X35
130J1035
Superseded by 130BB1035
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM,BLA
317J0800
Superseded by 317BB0800
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
