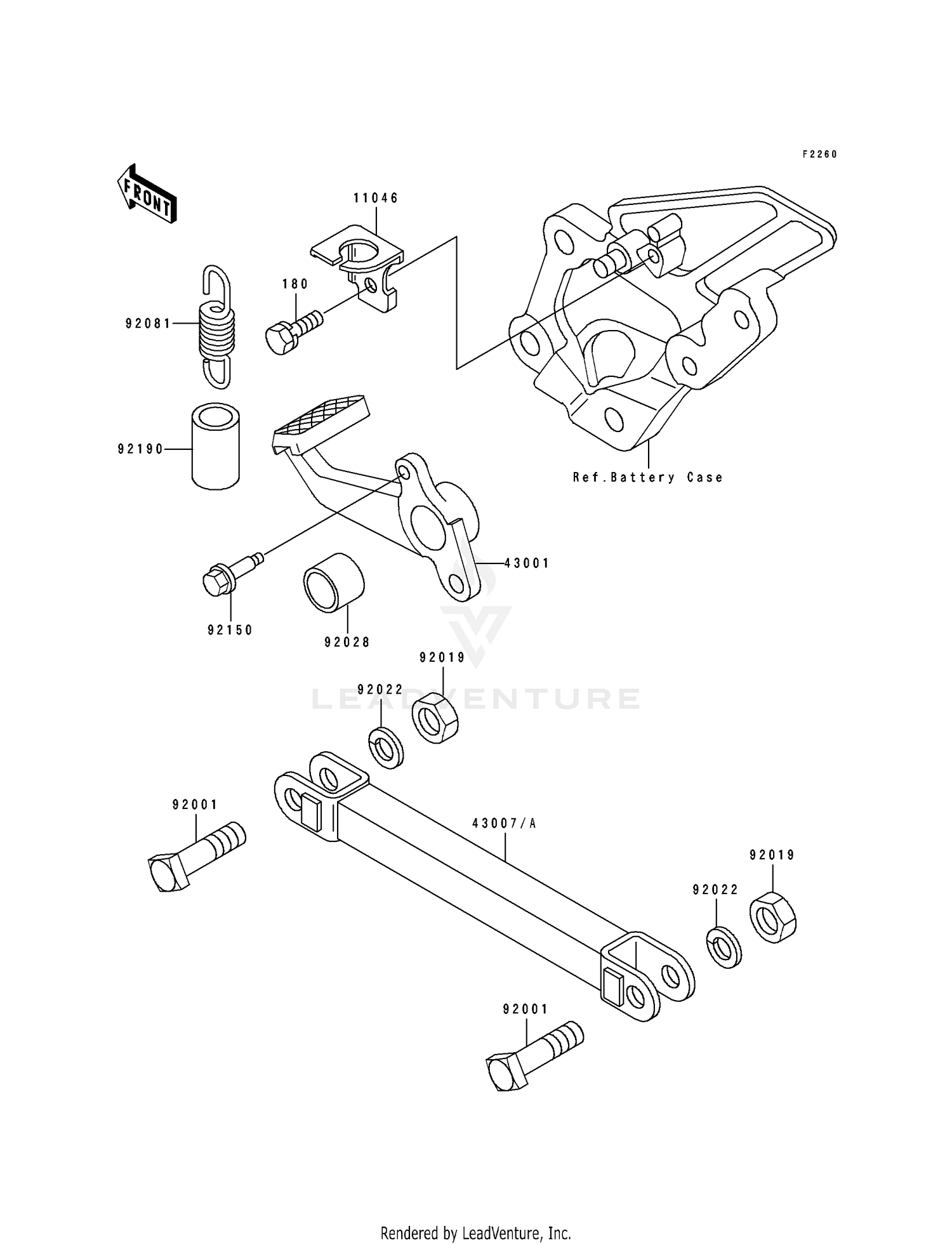

Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11046
BRACKET,REAR BRAKE SWITCH
11046-1252
|
$9.84 | ||
|
Available to order. Add to View Price |
|||
|
#43001
LEVER-BRAKE,PEDAL
43001-1283
|
$151.71 | ||
|
Available to order. Add to View Price |
|||
|
#43007
ROD-TORQUE,G.GRAY
43007-1152-GD
|
|||
|
Unavailable |
|||
|
#43007A
ROD-TORQUE.G.GRAY
43007-1152-HN
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,10X37
92001-1307
Superseded by 92150-1901
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#92019
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,SPRING,10MM
92022-1540
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1558
|
$9.57 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE PEDAL RETURN
92081-1147
Superseded by 92145-0100
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6MM
92150-1113
|
$7.92 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,16X19X30
92190-1185
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#180
BOLT-UPSET-WS,6X14
180H0614
Superseded by 180BA0614
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
