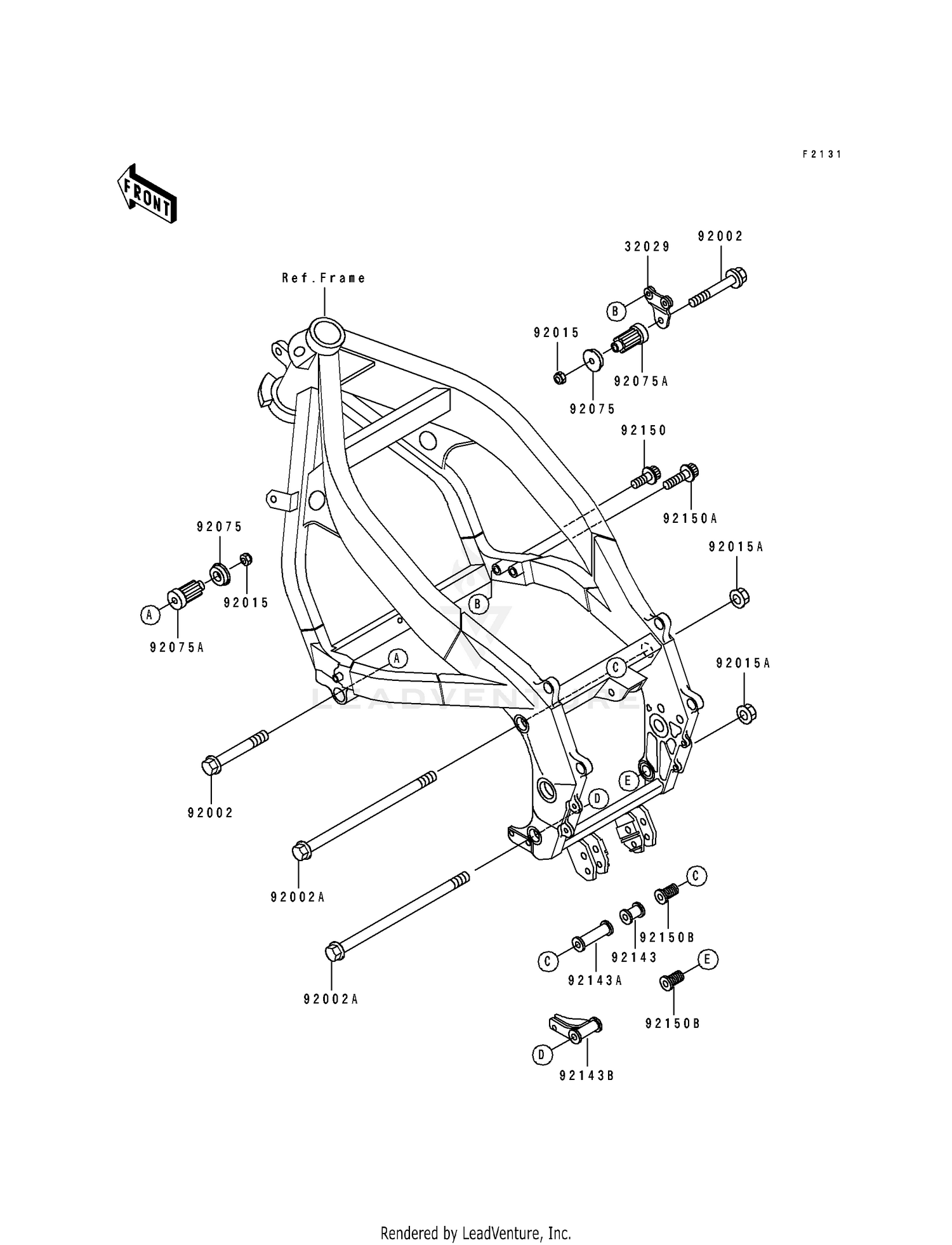

Frame Fitting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#32029
BRACKET-ENGINE,FR,RH
32029-1713
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,10X87
92002-1298
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT
92002-1530
Superseded by 92151-1916
|
$24.29 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,10MM,BLACK
92015-1189
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,10MM
92015-1428
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,ENGINE MOUNT,SIDE
92075-1274
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,ENGINE MOUNT,MAIN
92075-1739
|
$32.48 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,L=34
92143-1276
|
$17.39 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,L=72.5
92143-1421
|
$20.55 | ||
|
Available to order. Add to View Price |
|||
|
#92143B
COLLAR
92143-1439
|
$28.19 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X20
92150-1155
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,SOCKET,8X30
92150-1156
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,20X30
92150-1264
|
$20.43 | ||
|
Available to order. Add to View Price |
|||
