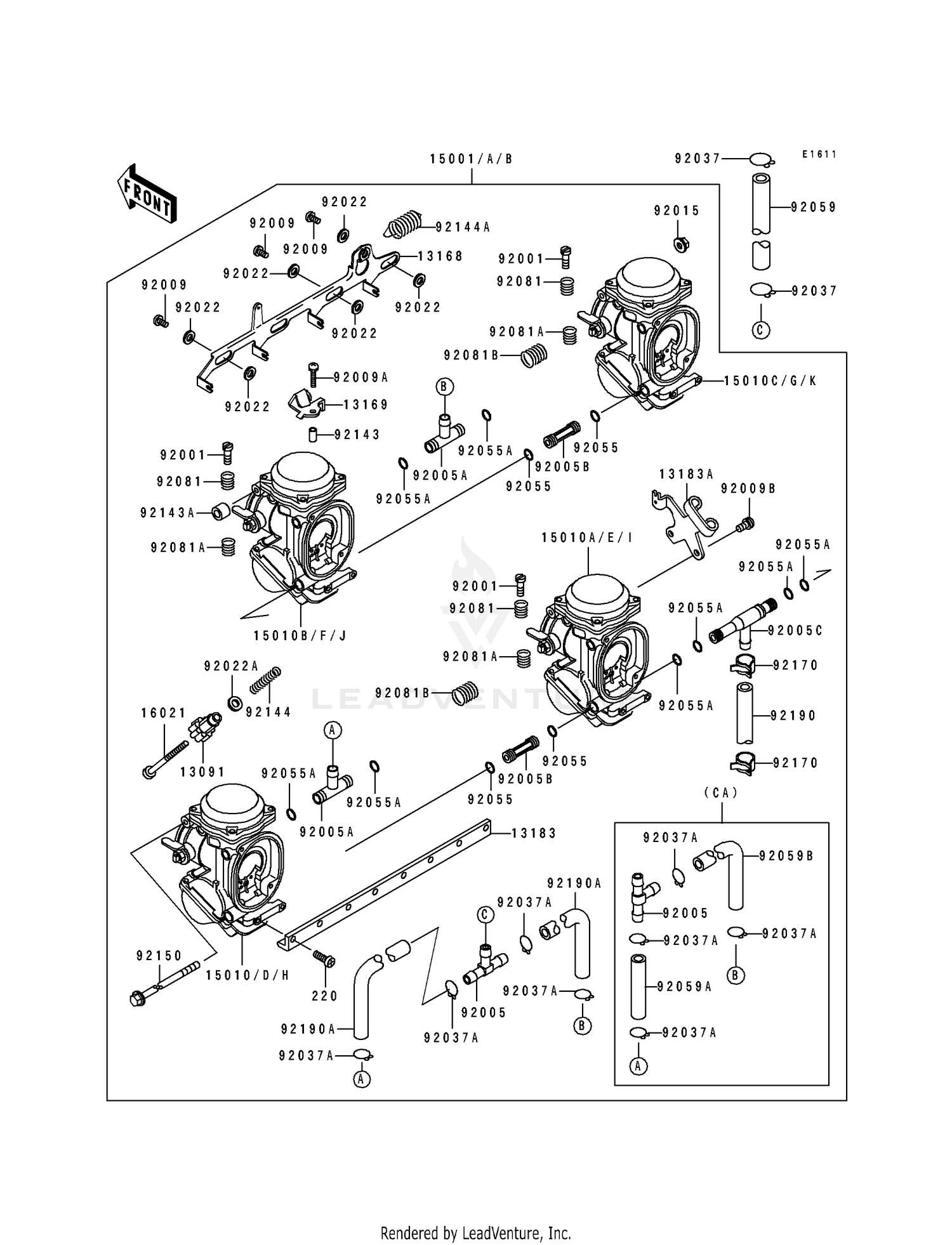

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER,THROTTLE STOP SCREW
13091-1382
|
$17.70 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,STARTER
13168-1405
|
$125.89 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE,STARTER CABLE
13169-1965
|
$40.89 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE,CARBURETOR
13183-1608
|
$89.46 | ||
|
Available to order. Add to View Price |
|||
|
#13183A
PLATE,THROTTLE CABLE
13183-1610
|
$85.46 | ||
|
Available to order. Add to View Price |
|||
|
#15001
CARBURETOR-ASSY
15001-1591
|
$1,974.85 | ||
|
Available to order. Add to View Price |
|||
|
#15001A
CARBURETOR-ASSY
15001-1593
|
$1,974.85 | ||
|
Available to order. Add to View Price |
|||
|
#15001B
CARBURETOR-ASSY
15001-1594
|
|||
|
Unavailable |
|||
|
#15010
CARBURETOR,LH,OUTSIDE
15010-1113
|
|||
|
Unavailable |
|||
|
#15010A
CARBURETOR,LH,INSIDE
15010-1114
|
|||
|
Unavailable |
|||
|
#15010B
CARBURETOR,RH,INSIDE
15010-1115
|
|||
|
Unavailable |
|||
|
#15010C
CARBURETOR,RH,OUTSIDE
15010-1116
|
|||
|
Unavailable |
|||
|
#15010D
CARBURETOR,LH,OUTSIDE
15010-1117
|
$368.02 | ||
|
Available to order. Add to View Price |
|||
|
#15010E
CARBURETOR,LH,INSIDE
15010-1118
|
$634.97 | ||
|
Available to order. Add to View Price |
|||
|
#15010F
CARBURETOR,RH,INSIDE
15010-1119
|
$634.97 | ||
|
Available to order. Add to View Price |
|||
|
#15010G
CARBURETOR,RH,OUTSIDE
15010-1120
|
$677.64 | ||
|
Available to order. Add to View Price |
|||
|
#15010H
CARBURETOR,LH,OUTSIDE
15010-1121
|
$634.97 | ||
|
Available to order. Add to View Price |
|||
|
#15010I
CARBURETOR,LH,INSIDE
15010-1122
|
$634.97 | ||
|
Available to order. Add to View Price |
|||
|
#15010J
CARBURETOR,RH,INSIDE
15010-1123
|
$634.97 | ||
|
Available to order. Add to View Price |
|||
|
#15010K
CARBURETOR,RH,OUTSIDE
15010-1124
|
$634.97 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1122
|
$7.87 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,THROTTLE ADJUST
92001-1998
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,T-TYPE
92005-1119
Superseded by 92005-1135
|
$25.05 | ||
|
Available to order. Add to View Price |
|||
|
#92005A
FITTING,T-TYPE
92005-1125
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#92005B
FITTING
92005-1157
Superseded by 92005-1310
|
$35.30 | ||
|
Available to order. Add to View Price |
|||
|
#92005C
FITTING,T-TYPE
92005-1214
|
$27.58 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1262
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1446
Superseded by 92009-1632
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW
92009-1597
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
92015-1259
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X11X0.8,POLYACETAL
92022-1199
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,PLAIN,STOP SPRING
92022-1480
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HOSE
92037-1104
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1194
Superseded by 92037-1682
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1004
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1223
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,7X12X1250,GREEN
92059-1406
Superseded by 92190-1443
|
$41.92 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,7X11X300
92059-1612
Superseded by 92059-1493
|
$27.56 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,7X11X220
92059-1863
|
$21.72 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING
92081-1620
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,THROTTLE ADJUST LWR
92081-1621
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,THROTTLE ADJUST CNT
92081-1622
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,4X5.2X9.6
92143-1265
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR
92143-1438
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,THROTTLE ADJUS
92144-1539
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,STATER LEVER
92144-1540
|
$24.77 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1416
|
$34.31 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,TUBE
92170-1054
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,7.3X12.5X400
92190-1063
|
$38.57 | ||
|
Available to order. Add to View Price |
|||
|
#92190A
TUBE,7X11X127
92190-1069
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X14
220D0514
Superseded by 220AA0514
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
