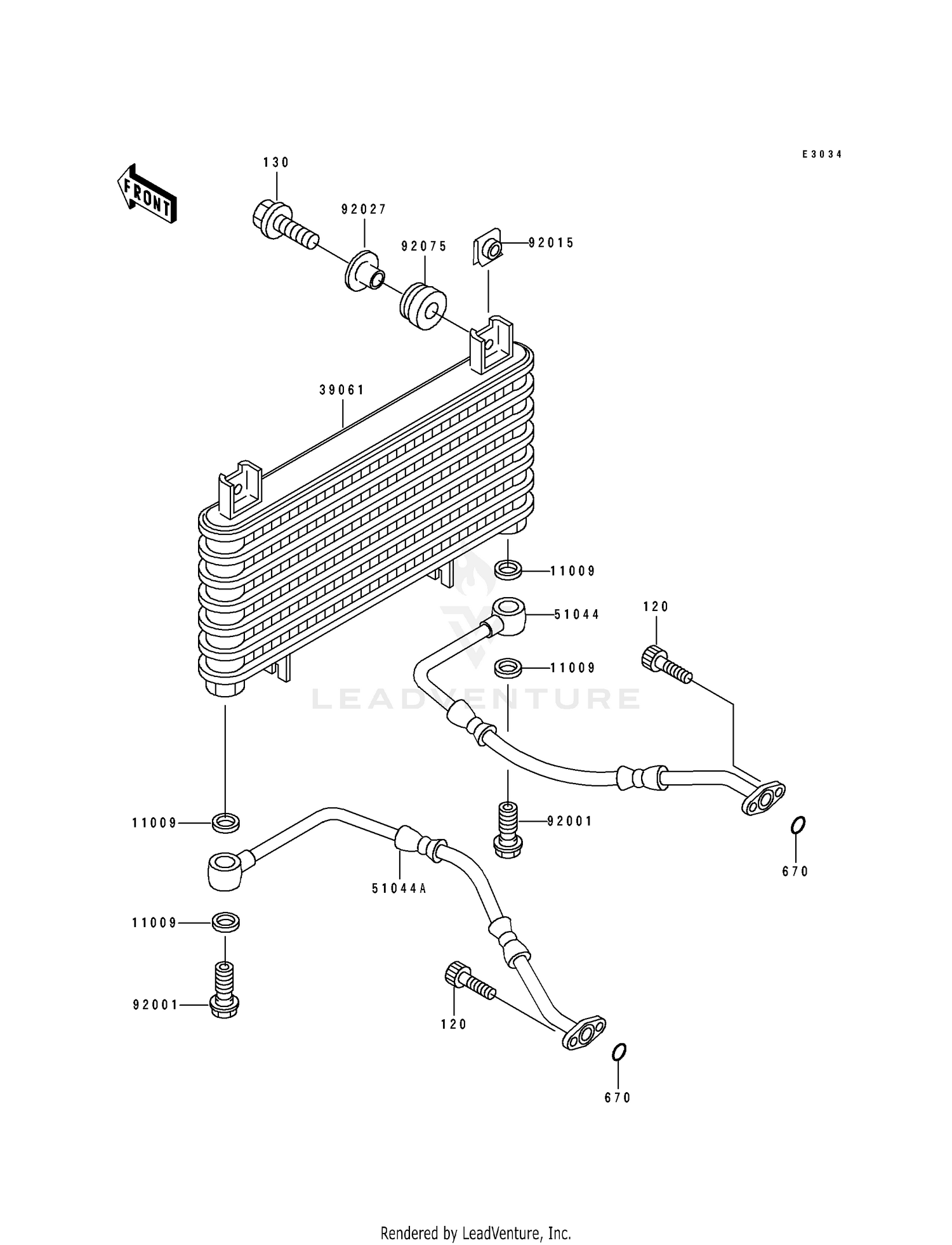

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,14X19.5X1.4
11009-1461
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#39061
OIL COOLER
39061-1095
|
$643.19 | ||
|
Available to order. Add to View Price |
|||
|
#51044
TUBE-ASSY
51044-1131
|
$150.31 | ||
|
Available to order. Add to View Price |
|||
|
#51044A
TUBE-ASSY
51044-1132
|
$150.31 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,14X28.5
92001-1930
|
$10.22 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-277
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X16
120S0616
Superseded by 120CB0616
|
$1.34 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130J0625
Superseded by 130BB0625
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,10MM
670B2010
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
