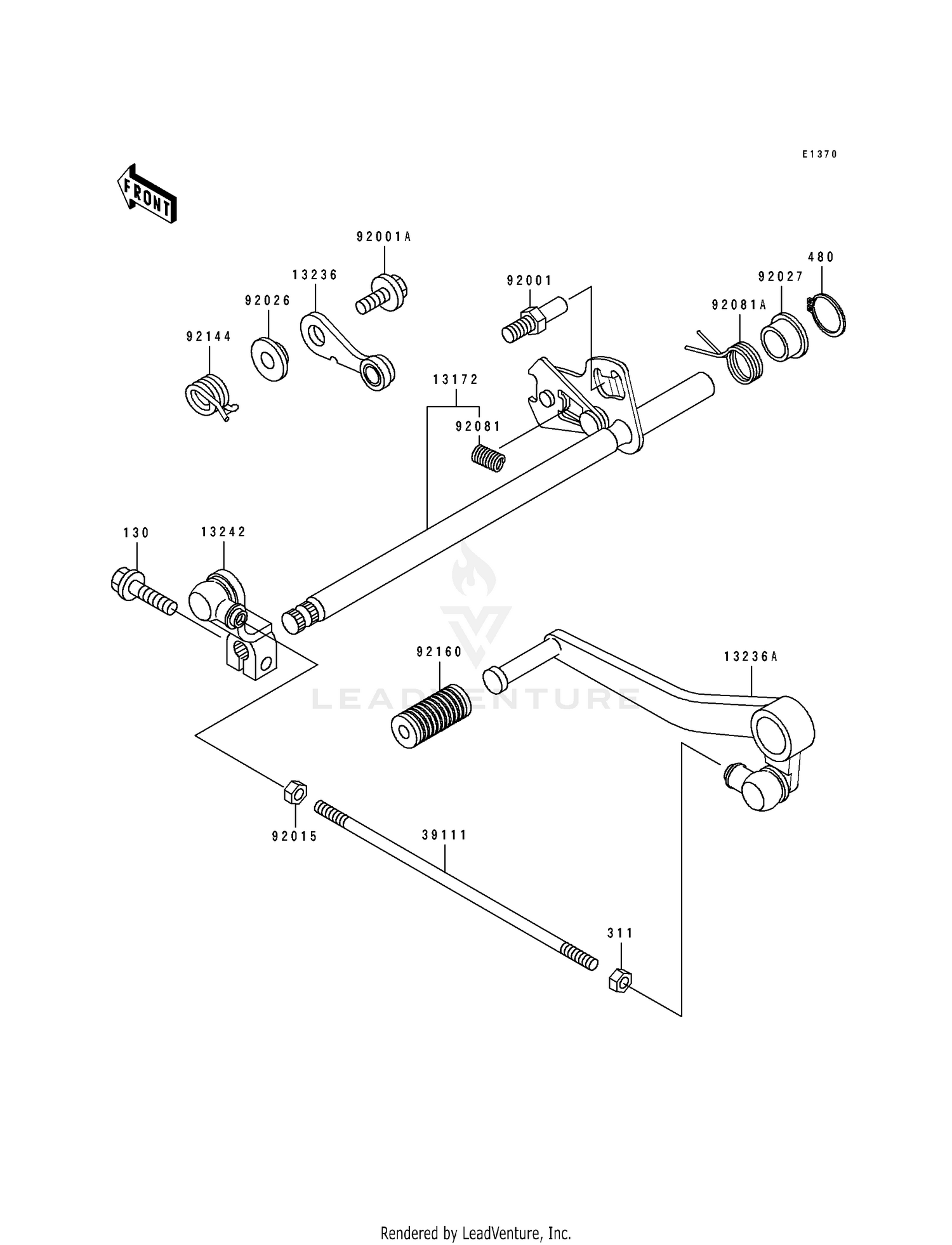

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13172
SHAFT-ASSY-CHANGE
13172-1072
Superseded by 13172-1092
|
$128.55 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,NEUTRAL POSITION
13236-1209
|
$20.01 | ||
|
Available to order. Add to View Price |
|||
|
#13236A
LEVER-COMP,PEDAL
13236-1211
|
$146.17 | ||
|
Available to order. Add to View Price |
|||
|
#13242
LEVER-ASSY-CHANGE,BOS
13242-1285
|
$64.90 | ||
|
Available to order. Add to View Price |
|||
|
#39111
ROD-TIE
39111-1057
Superseded by 39111-1071
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,RETURN SPRING
92001-1455
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,W/WASHER,6X12
92001-1516
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LEFT HANDED,6MM
92015-1178
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1217
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,13X18X9
92027-1801
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CHANGE LEVER
92081-1275
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,CHANGE LEVER R
92081-1279
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,NEUTRAL POSITI
92144-1478
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,CHANGE PEDAL
92160-1036
Superseded by 92161-2382
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X20
130S0620
Superseded by 130CB0620
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311J0600
Superseded by 311BB0600
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,13MM
480J1300
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
