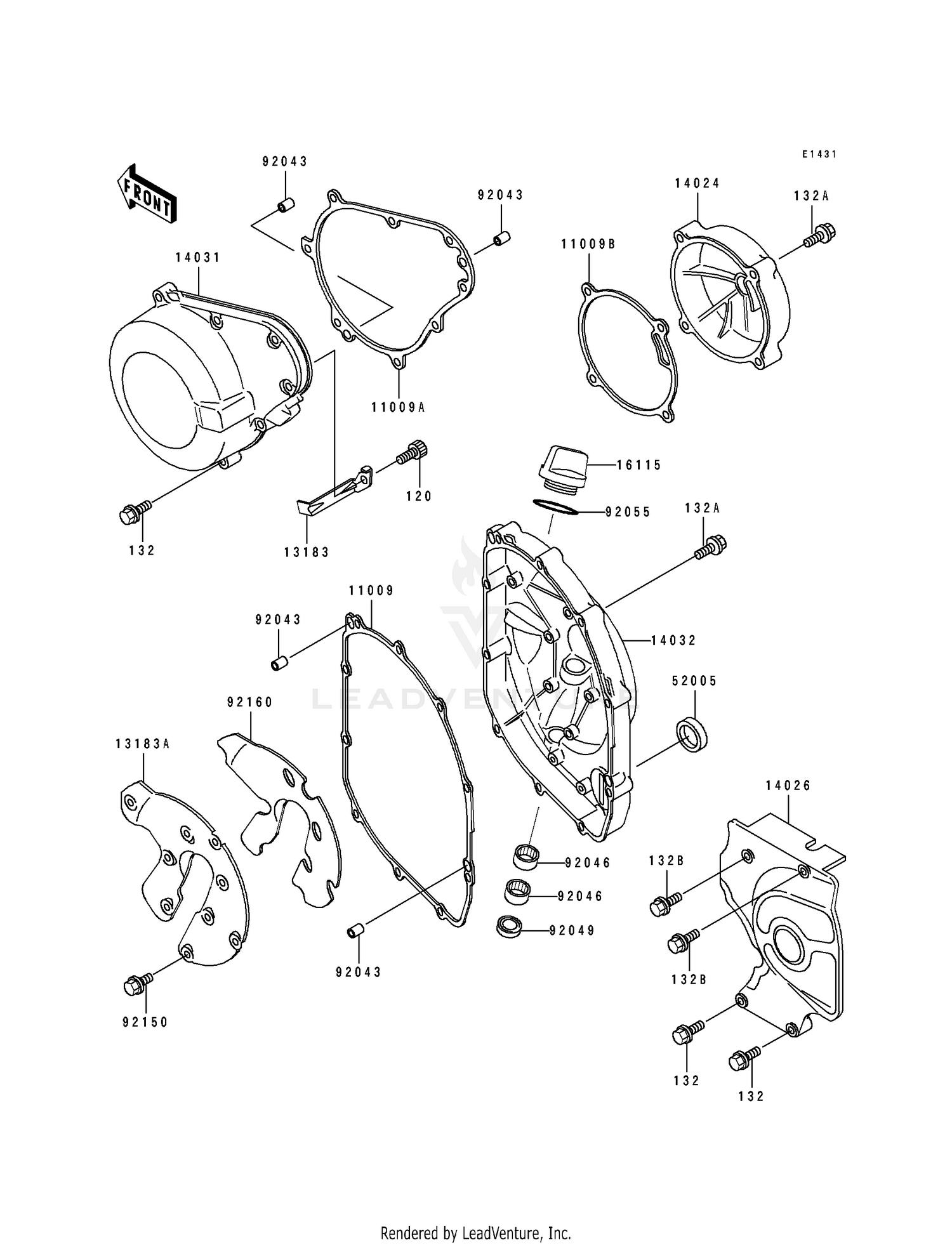

Engine Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,CLUTCH COVER
11009-1867
Superseded by 11060-1645
|
$27.58 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,GENERATOR COVE
11009-1868
|
$11.26 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET,PULSING COVER
11009-1869
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE,LEAD WIRE
13183-1529
Superseded by 13270-1475
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#13183A
PLATE
13183-1532
|
$13.66 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,PULSING
14024-1881
|
$74.19 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER-CHAIN
14026-1160
Superseded by 14026-1188
|
$167.45 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-1247
|
$151.66 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH
14032-1286
|
$299.50 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-1009
|
$14.65 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1057
Superseded by 52005-0071
|
$25.68 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HK1210FM
92046-1010
Superseded by 92046-0034
|
$16.01 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TB12205.5
92049-1271
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,31.5X2.6
92055-049
|
$4.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92150
BOLT,5X8
92150-1406
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1195
|
$36.93 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X10
120P0610
Superseded by 120CA0610
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X30
132G0630
Superseded by 132BA0630
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X35
132G0635
Superseded by 132BA0635
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,6X45
132G0645
Superseded by 132BA0645
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
