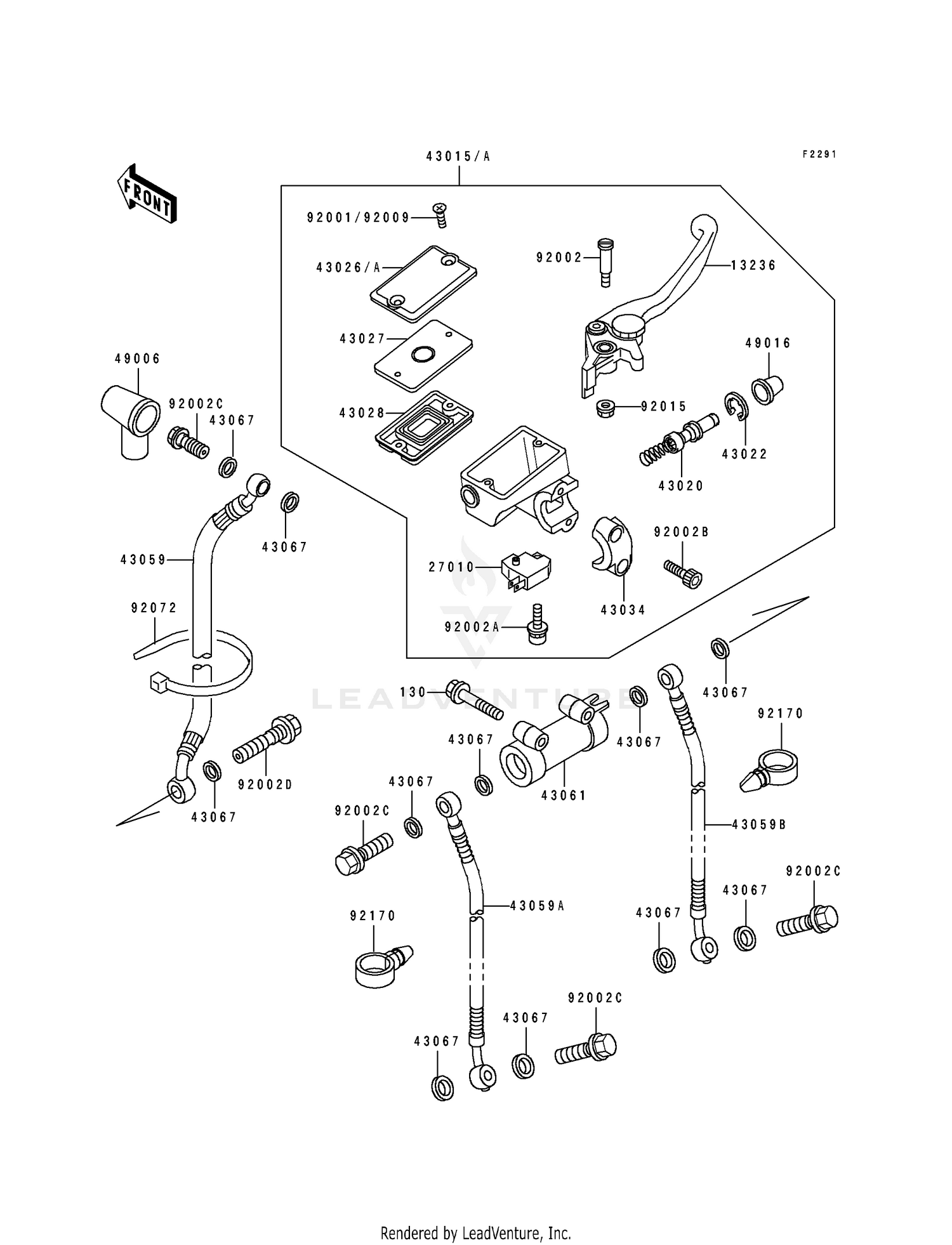

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13236
LEVER-COMP,FRONT BRAKE
13236-1185
|
$64.87 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-1170
|
$29.84 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-1421
|
$424.38 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE,FR
43020-1054
|
$66.46 | ||
|
Available to order. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1010
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE,FR
43026-1055
|
$51.13 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYLINDER
43028-1058
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1053
|
$36.55 | ||
|
Available to order. Add to View Price |
|||
|
#43059
HOSE-BRAKE,FR
43059-1572
|
$85.66 | ||
|
Available to order. Add to View Price |
|||
|
#43059A
HOSE-BRAKE,FR
43059-1573
Superseded by 43095-0120
|
$85.70 | ||
|
Available to order. Add to View Price |
|||
|
#43059B
HOSE-BRAKE,FR
43059-1591
Superseded by 43095-1380
|
$100.44 | ||
|
Available to order. Add to View Price |
|||
|
#43061
JOINT,FR BRAKE HOSE
43061-1002
|
$73.52 | ||
|
Available to order. Add to View Price |
|||
|
#43067
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,DUST
49006-1040
Superseded by 49006-1041
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#92001
SCREW,5MM
92001-1727
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,LEVER SET,BLACK
92002-1322
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,SCREW,4X12
92002-1323
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,SOCKET,6X20
92002-1324
Superseded by 92153-0417
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#92002C
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#92002D
BOLT,OIL,L=37
92002-1909
Superseded by 92153-0628
|
$12.14 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92072
BAND,L=250
92072-1237
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1067
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X35
130G0635
Superseded by 130BA0635
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
