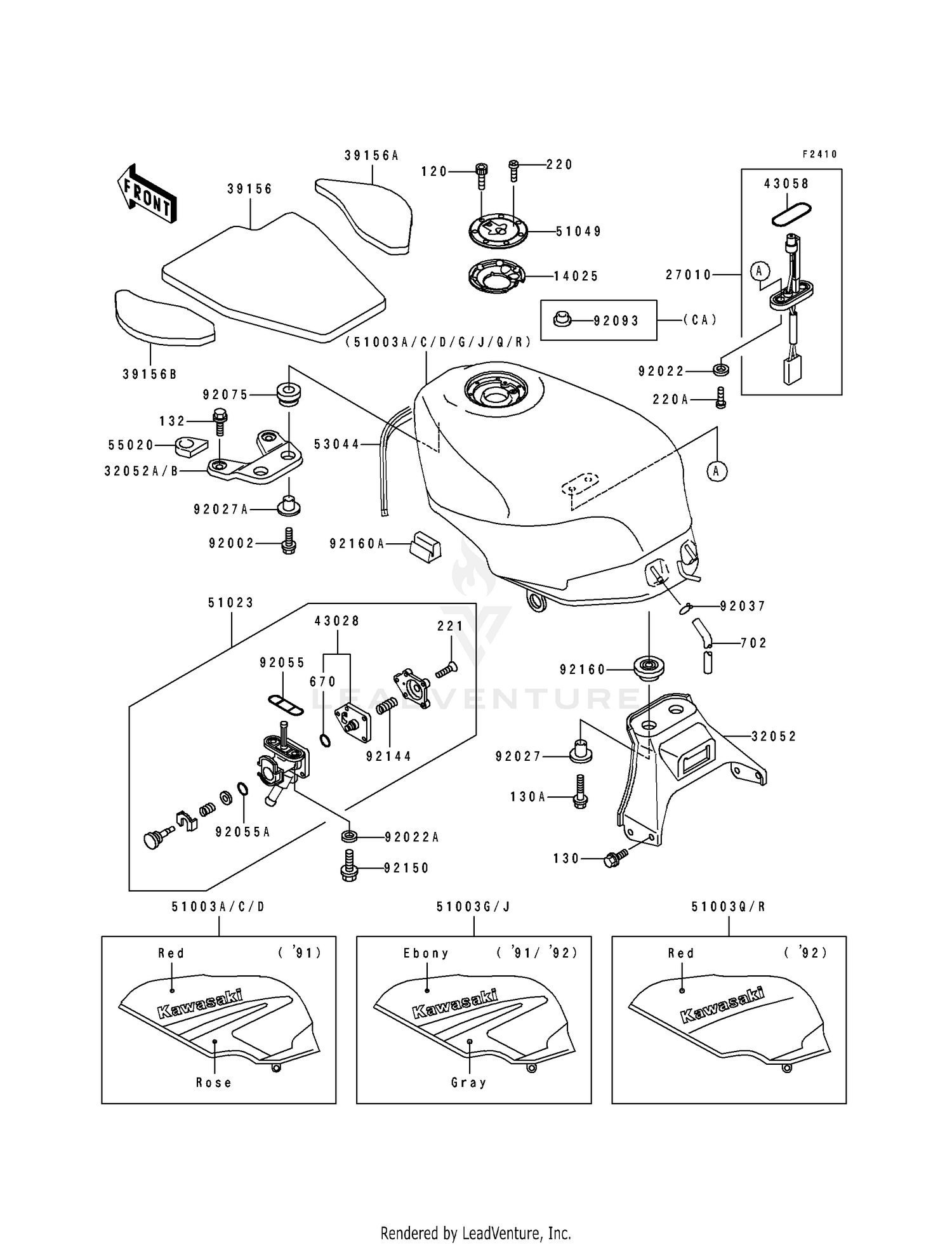

Fuel Tank (zx600-d2/d3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14025
COVER,TANK CAP
14025-1913
|
$21.93 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,FUEL LEVEL
27010-1096
Superseded by 27010-1529
|
$115.65 | ||
|
Unavailable |
|||
|
#32052
BRACKET-TANK,RR
32052-1302
|
$40.92 | ||
|
Available to order. Add to View Price |
|||
|
#32052A
BRACKET-TNK,FR
32052-1303-GD
|
$18.05 | ||
|
Available to order. Add to View Price |
|||
|
#32052B
BRACKET-TNK,FR
32052-1303-HN
Superseded by 32052-1303-GD
|
$18.05 | ||
|
Unavailable |
|||
|
#39156
PAD,FUEL TANK,CNT
39156-1204
|
$33.25 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,FUEL TANK,RH
39156-1205
|
$15.57 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,FUEL TANK,LH
39156-1206
|
$15.57 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,TAP
43028-1068
|
$48.32 | ||
|
Available to order. Add to View Price |
|||
|
#43058
RING,FUEL LEVEL SWITCH
43058-1004
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#51003A
TANK-COMP-FUELC.C.RED
51003-5168-HR
|
$545.37 | ||
|
Available to order. Add to View Price |
|||
|
#51003C
TANK-COMP-FUELC.C.RED
51003-5170-HR
|
$545.37 | ||
|
Available to order. Add to View Price |
|||
|
#51003D
TANK-COMP-FUEL,C.C.RED
51003-5170-L1
|
|||
|
Unavailable |
|||
|
#51003G
TANK-COMP-FUEL,EBONY
51003-5188-H8
|
$1,214.32 | ||
|
Available to order. Add to View Price |
|||
|
#51003J
TANK-COMP-FUEL,EBONY
51003-5226-H8
|
$545.37 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1171
Superseded by 51023-1304
|
$125.84 | ||
|
Unavailable |
|||
|
#51049
CAP-TANK,FUEL
51049-1079
Superseded by 51049-0022
|
$142.19 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,L=720
53044-1203
|
$38.93 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FUEL TANK BRACK
55020-1402
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
92002-1237
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X10X1.5
92022-1023
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.2X11X1.5
92022-183
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=16.1
92027-1847
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR
92027-251
Superseded by 92152-0365
|
$1.41 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FUEL TAP PACKING
92055-1112
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1377
Superseded by 92055-3723
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,10X24X12
92075-1690
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,TAP DIAPHRAGM
92144-1119
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,6X16
92150-1358
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1046
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER,FUEL TANK
92160-1197
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,5X12
120S0512
Superseded by 120CB0512
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X10
130J0610
Superseded by 130BB0610
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X25
130J0625
Superseded by 130BB0625
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X8
220C0508
Superseded by 220AB0508
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220X0514
Superseded by 220AD0514
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,4X14
221B0414
Superseded by 221AA0414
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,4MM
670B1504
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,7X10X800
702A07400
Superseded by 702A07800
|
$10.23 | ||
|
Available to order. Add to View Price |
|||
