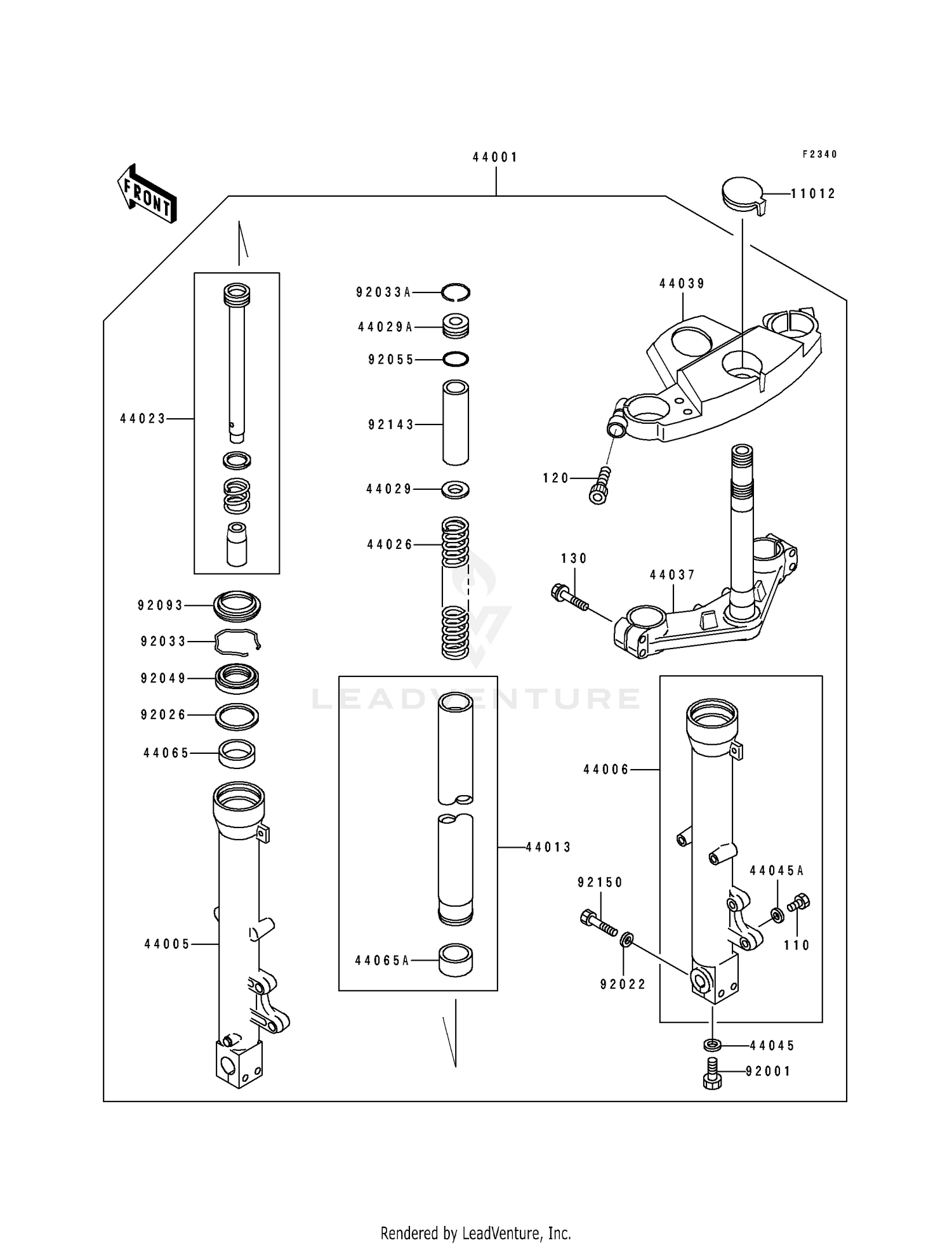

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,FORK,G.GRAY
11012-1733-GD
|
$10.92 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT,BLACK
44001-1757-10
|
$1,722.69 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER,
44005-1303-10
|
$439.27 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1299-10
|
$439.27 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1323
|
$343.19 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-COMP-FORK
44023-1072
|
$166.91 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1468
|
$71.26 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1131
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#44029A
SEAT-FORK SPRING
44029-1143
|
$39.50 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1264
|
$350.93 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,G.G
44039-1197-GD
|
$254.14 | ||
|
Available to order. Add to View Price |
|||
|
#44045
GASKET,FORK CYLINDER BOLT
44045-051
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#44045A
GASKET,DRAIN PLUG
44045-052
|
$6.23 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK
44065-1079
|
$25.45 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1087
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FORK CYLINDER
92001-1464
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1969
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK OUTER
92026-1276
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1222
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP
92033-1273
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1363
|
$27.16 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FORK TOP
92055-1420
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK
92093-1268
|
$26.11 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1434
|
$16.35 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X40
92150-1183
Superseded by 92002-1285
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT HEX HEAD 6X8
110B0608
|
$0.39 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,8X40
120P0840
Superseded by 120CA0840
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X40
130J0840
Superseded by 130BB0840
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
