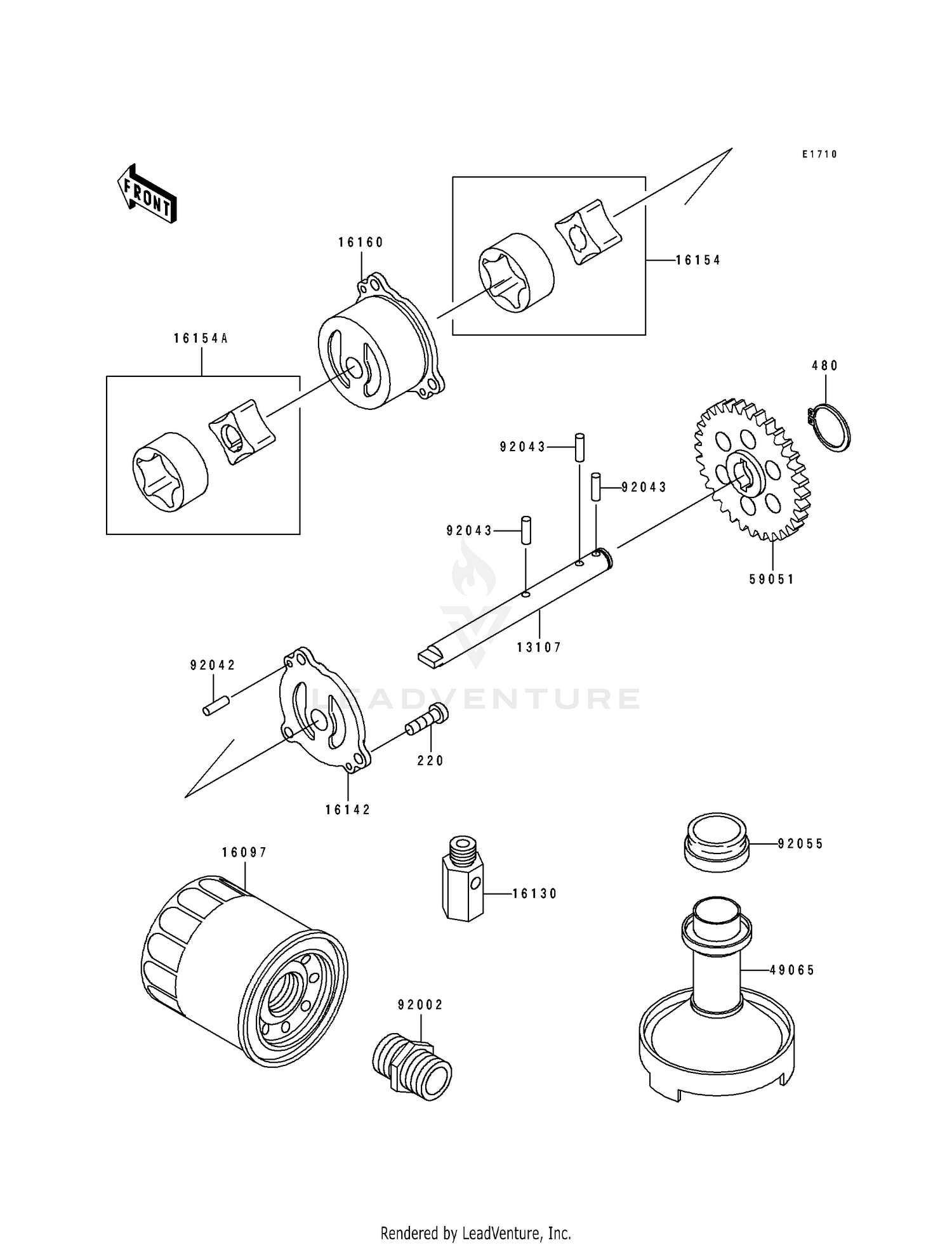

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13107
SHAFT,OIL PUMP
13107-1265
|
$57.77 | ||
|
Available to order. Add to View Price |
|||
|
#16097
FILTER-ASSY-OIL
16097-1063
Superseded by 16097-0008
|
$14.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16130
VALVE-ASSY-RELIEF
16130-1001
|
$41.95 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP
16142-1100
|
$49.75 | ||
|
Available to order. Add to View Price |
|||
|
#16154
ROTOR-PUMP,ENGINE
16154-1085
|
$77.08 | ||
|
Available to order. Add to View Price |
|||
|
#16154A
ROTOR-PUMP,OIL COOLER
16154-1086
|
$77.08 | ||
|
Available to order. Add to View Price |
|||
|
#16160
BODY,OIL PUMP
16160-1159
|
$147.06 | ||
|
Available to order. Add to View Price |
|||
|
#49065
FILTER-OIL
49065-1056
|
$27.79 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,OIL PUMP
59051-1231
Superseded by 59051-1308
|
$70.07 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,OIL FILTER
92002-1899
|
$25.42 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,4X15.8
92042-014
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,17.9X5.0
92043-1444
|
$4.43 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92055
RING-O,OIL FILTER
92055-1354
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,13MM
480J1300
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
