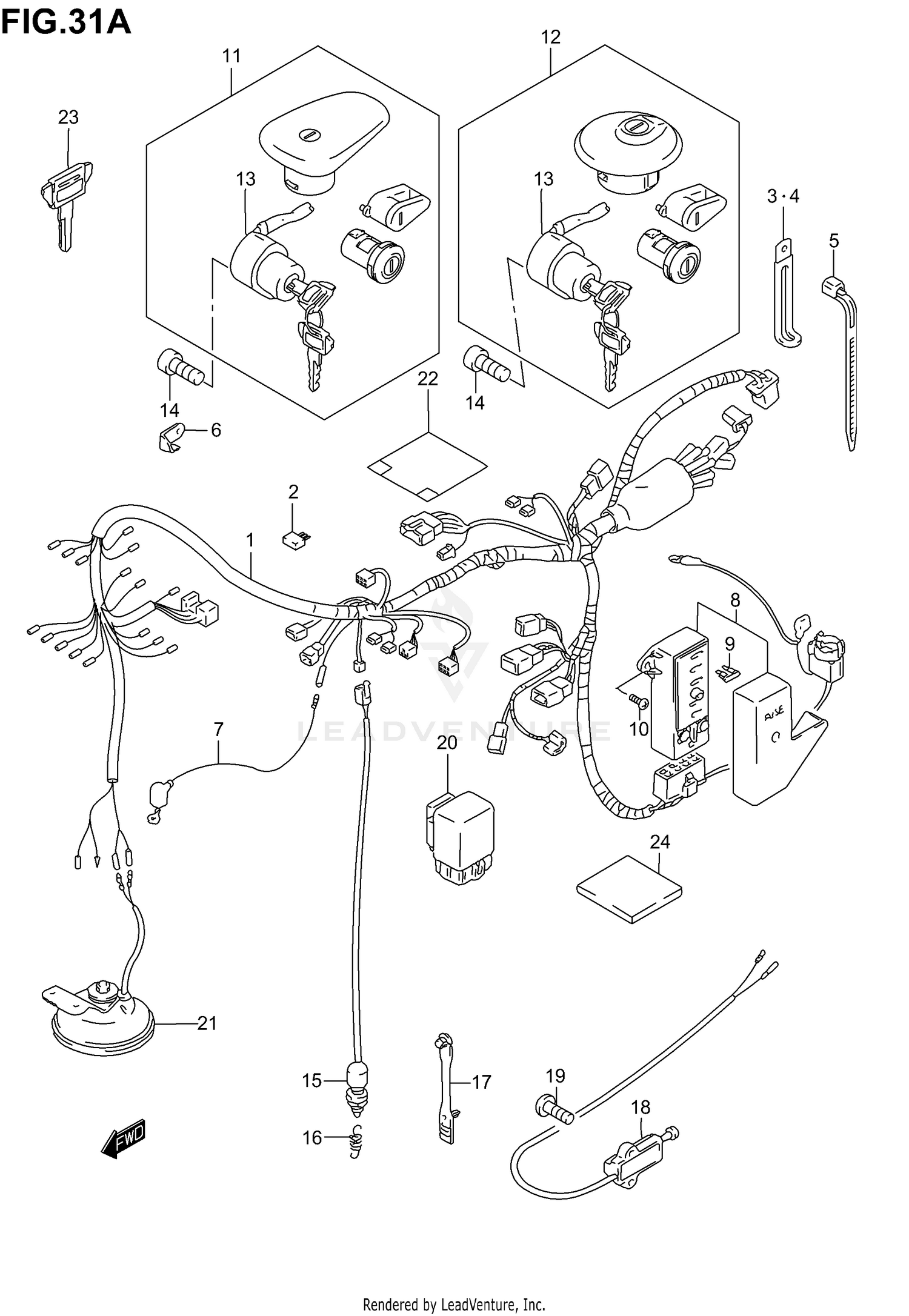

Wiring Harness (model K4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-39AJ0
|
$347.78 | ||
|
Unavailable |
|||
|
#2
.DIODE
36611-38A00
Superseded by 36611-38A10
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
09404-06431
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#5
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, COUPLER HOLDER
36687-38A00
|
$1.57 | ||
|
Unavailable |
|||
|
#7
WIRE, WATER TEMP GAUGE
36851-17E00
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE BOX ASSY
36740-39A00
|
$113.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE (10A)
09481-10101
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE (25A)
09481-25103
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK SET
37100-38835
Superseded by 37100-38836
|
$269.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK SET
37000-38840
|
$221.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH ASSY, IGNITION
37110-38A04
|
$112.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
07130-05163
Superseded by 07130-0516A
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH ASSY,STOP LAMP
37740-31D00
|
$37.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
09443-06046
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP, SIDE STAND
09407-05403
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH ASSY,SD
37840-39A22
Superseded by 37840-39A23
|
$122.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02112-76203
Superseded by 02112-7620B
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
RELAY ASSY, SIDE STAND
38740-24X50
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
HORN ASSY
38500-39A00
|
$152.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER WIRING HARNESS
36618-15D20
Superseded by 36618-15D21
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY,BLANK TYPE,C (A51)
37146-03A00
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY,BLANK TYPE,D (A52)
37146-03A10
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY,BRANK TYPE,E (A53)
37146-03A20
|
$13.66 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY,BLANK TYPE,F (A54)
37146-03A30
|
$13.66 | ||
|
Available to order. Add to View Price |
|||
|
#24
PROTECTOR
36920-02200
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
