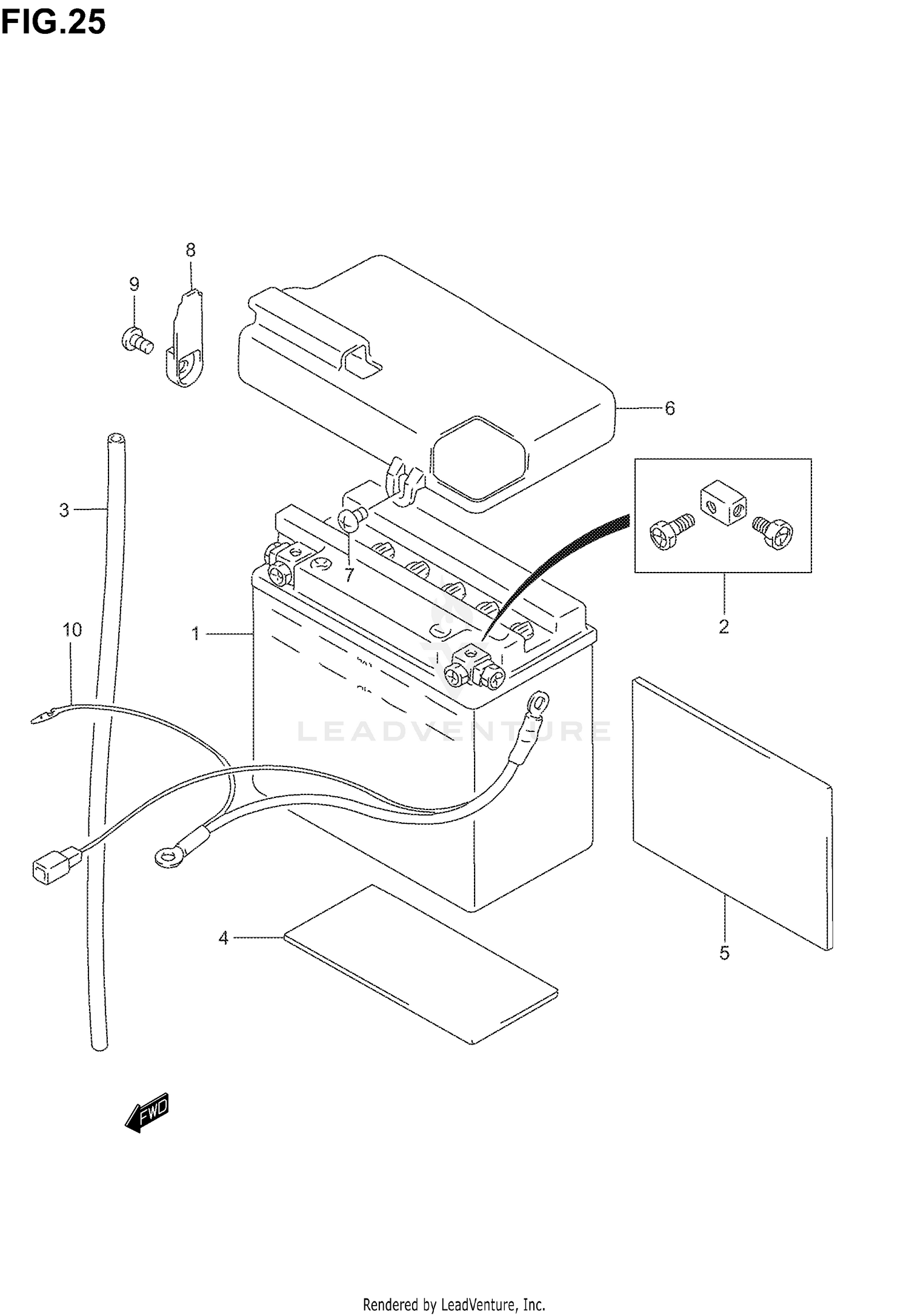

Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY (12V,16AH)
33610-38A01
|
$193.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT SET, TERMINAL
33626-38A01
|
$25.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE,BATTERY EX
33680-16A10
Superseded by 33680-16A11
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR (170X95X3.0)
33651-37000
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR (80X80X2)
33652-07D00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, BATTERY UPPER
33658-38A30
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02142-05083
Superseded by 02142-0508A
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, BATTERY TERMINAL
33658-38A40
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02142-05083
Superseded by 02142-0508A
|
$1.74 | ||
|
Unavailable |
|||
|
#10
LEAD WIRE, BATTERY (-)
33860-38A00
|
$27.03 | ||
|
Available to order. Add to View Price |
|||
