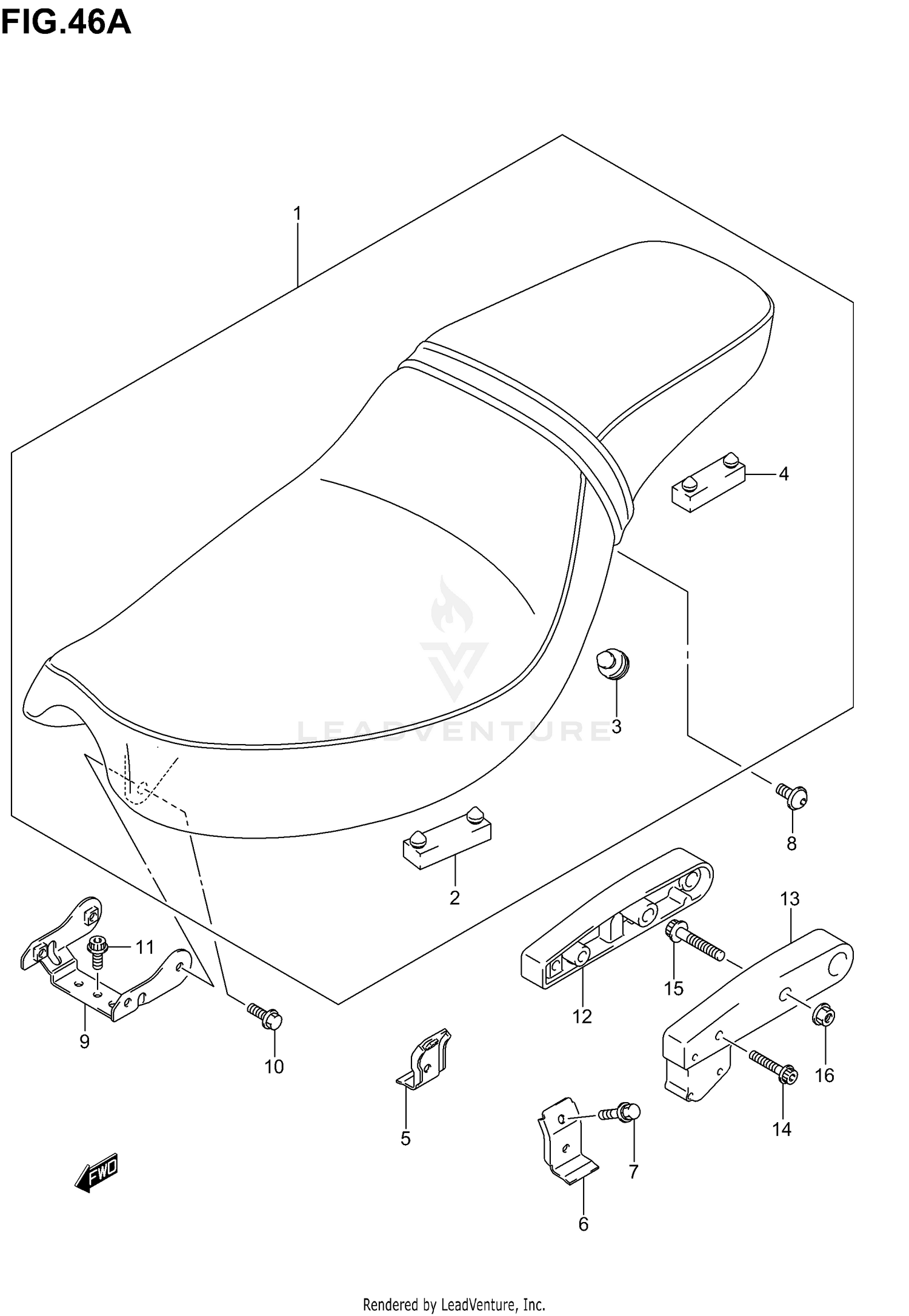

Seat (model K5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-38AA0-HW9
|
$713.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION
45149-43500
|
$7.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION (11.5X22X20)
09321-10002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
CUSHION
09321-08009
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT CTR R
45116-38AA0
|
$13.85 | ||
|
Unavailable |
|||
|
#6
BRACKET, SEAT CTR L
45117-38AA0
|
$20.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SEAT CTR BRACKET
01580-06167
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, SEAT CTR
09136-06154
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, SEAT FRONT
45210-38A03
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X16)
09113-06001
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07120-06163
Superseded by 07120-0616B
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
HANDLE, PILLION RIDER RH
46212-38A41
|
$119.84 | ||
|
Unavailable |
|||
|
#13
HANDLE, PILLION RIDER LH
46213-38A41
|
$119.84 | ||
|
Unavailable |
|||
|
#14
BOLT (6X35)
01580-06353
Superseded by 01580-0635B
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CENTER
01580-08453
Superseded by 01580-0845B
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
