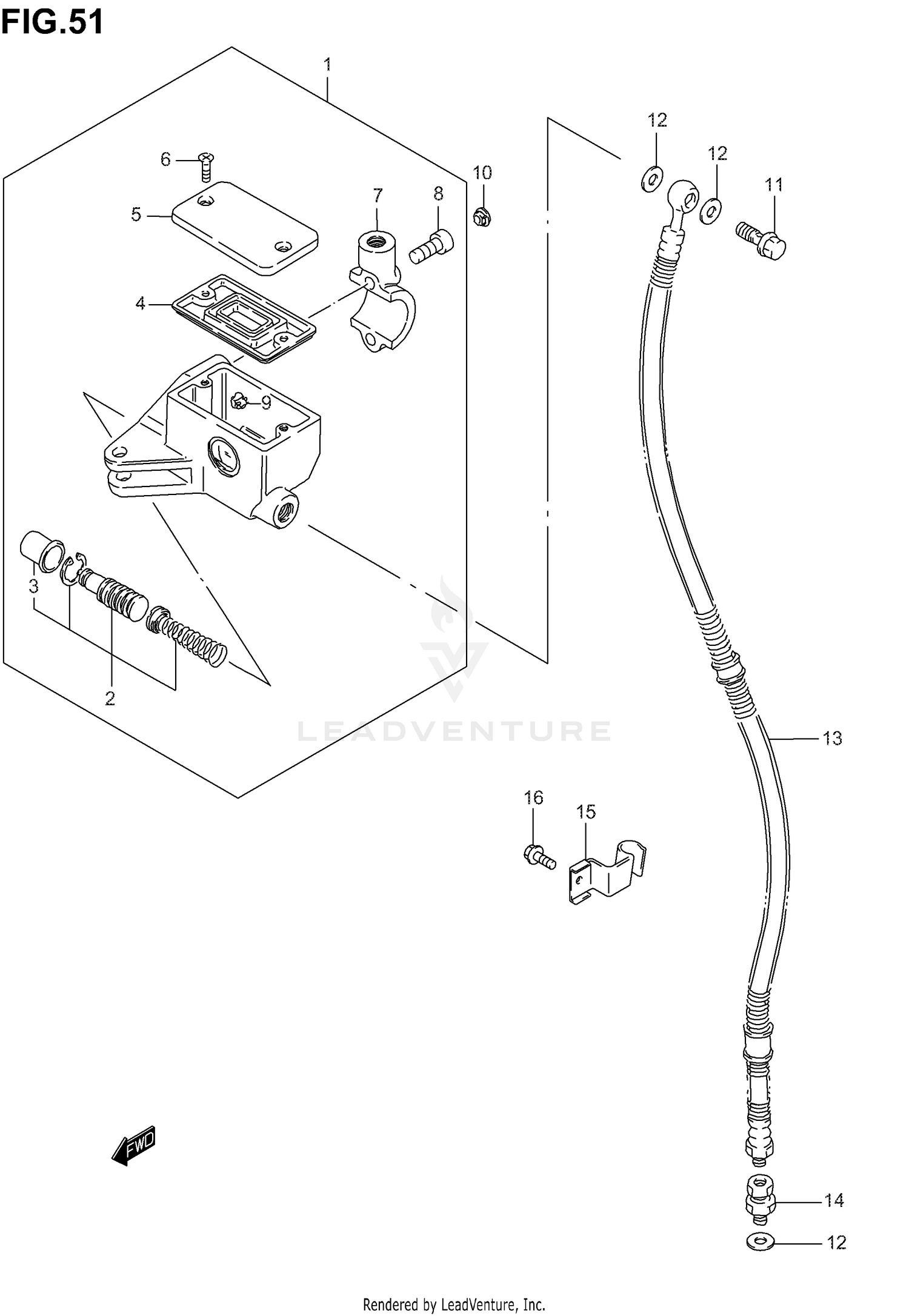

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, FRONT MASTER
59600-24B50
|
$459.52 | ||
|
Available to order. Add to View Price |
|||
|
#1
CYLINDER ASSY, FRONT MASTER
59600-38AA0
|
$353.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON & CUP SET
59600-04810
|
$55.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
59666-44300
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM
59667-49460
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
59669-24B00
|
$66.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
59669-10F00
|
$77.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02122-04127
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER
59671-38A00
|
$45.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07130-06207
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR
59664-48B00
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
09250-05008
|
$4.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
UNION (10X1.00X22)
09360-10039
Superseded by 09360-10061
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (10X15X1.5)
09161-10009
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HOSE, FRONT BRAKE
59480-38A63
|
$161.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, FRONT BRAKE
59480-38A70
|
$151.79 | ||
|
Unavailable |
|||
|
#14
ADAPTER, BRAKE HOSE
59290-43500
|
$39.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, BRAKE HOSE
59268-38A30
|
$14.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-06107
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
