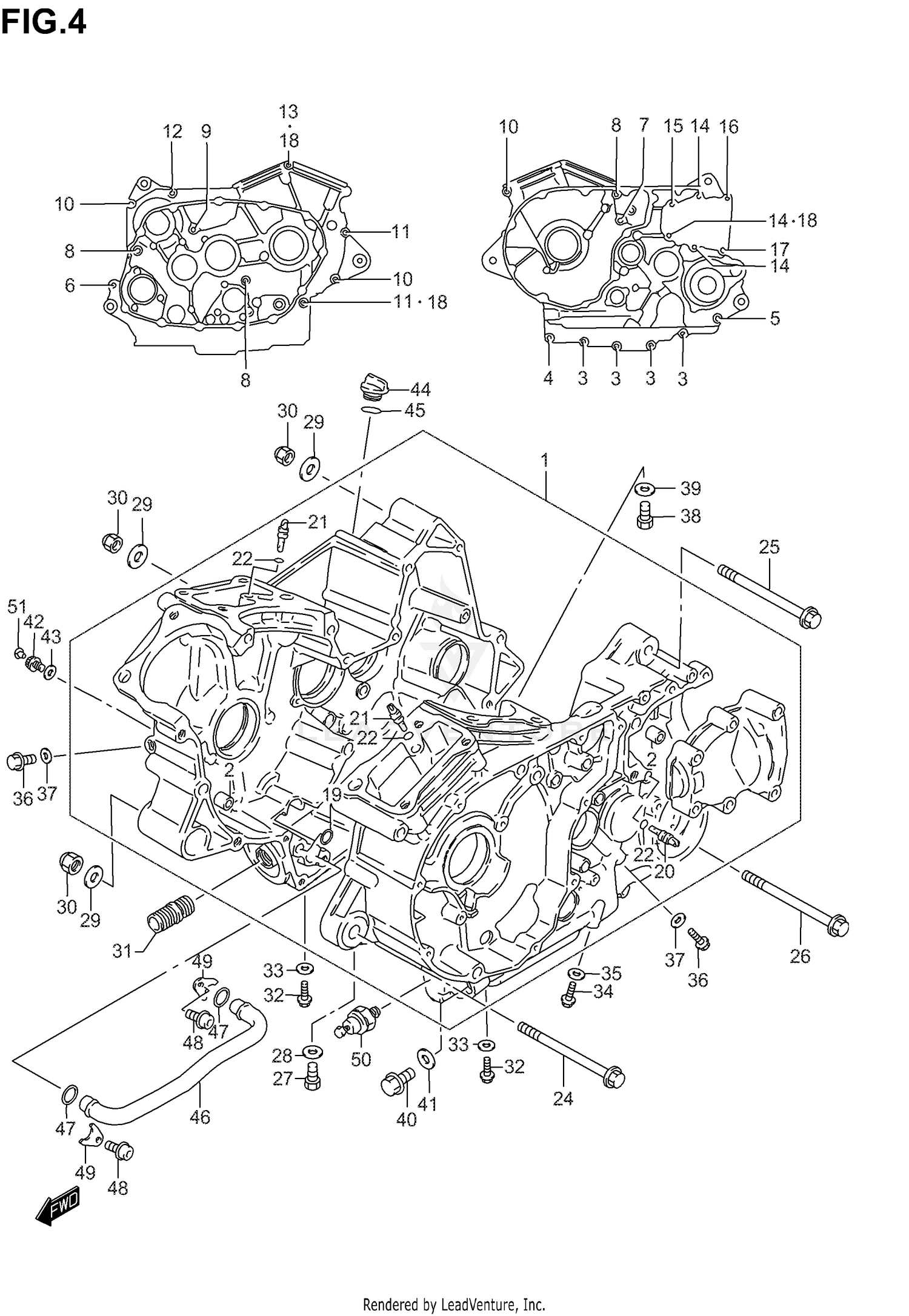

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
11301-38850
Superseded by 11301-38853
|
$2,136.64 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
11301-38851
Superseded by 11301-38853
|
$2,136.64 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
11301-38852
Superseded by 11301-38853
|
$2,136.64 | ||
|
Unavailable |
|||
|
#2
PIN
09206-11007
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01550-06407
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-08357
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01550-08557
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT
01550-08607
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT
01550-08753
Superseded by 01550-0875A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01550-08953
Superseded by 01550-0895A
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (8X120)
09103-08109
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (8X95)
09103-08164
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (8X105)
09103-08165
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (8X120)
09103-08166
|
$5.70 | ||
|
Unavailable |
|||
|
#13
BOLT (8X160)
09103-08167
|
$6.59 | ||
|
Unavailable |
|||
|
#14
BOLT
01550-08407
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01550-08507
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (8X55)
09103-08162
|
$2.61 | ||
|
Unavailable |
|||
|
#17
BOLT (8X65)
09103-08163
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
O RING, CRANKCASE (D:1.9,ID:12.6)
09280-12009
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, OIL GALLERY
09493-20014
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET AIR (#14)
09493-28010
|
$18.01 | ||
|
Available to order. Add to View Price |
|||
|
#22
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
.WASHER (T:1.94)
09160-48001
|
$29.92 | ||
|
Available to order. Add to View Price |
|||
|
#23
.WASHER (T:1.96)
09160-48002
|
$19.70 | ||
|
Unavailable |
|||
|
#23
.WASHER (T:1.99)
09160-48003
|
$26.92 | ||
|
Available to order. Add to View Price |
|||
|
#23
.WASHER (T:2.01)
09160-48004
|
$20.10 | ||
|
Unavailable |
|||
|
#23
.WASHER (T:2.04)
09160-48005
|
$19.70 | ||
|
Unavailable |
|||
|
#23
.WASHER (T:2.06)
09160-48006
|
$33.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
.WASHER (T:2.09)
09160-48007
|
$26.26 | ||
|
Available to order. Add to View Price |
|||
|
#23
.WASHER (T:2.11)
09160-48008
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
.WASHER (T:2.14)
09160-48009
|
$20.10 | ||
|
Unavailable |
|||
|
#23
.WASHER (T:2.16)
09160-48010
|
$33.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,10X125 (L:125)
09103-10141
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (10X130)
09103-10122
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (10X150)
09103-10078
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG, OIL DRAIN
09247-12106
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
09168-12002
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER
08322-01103
Superseded by 08322-0110A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
NUT
09159-10052
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
UNION,OIL STAND
16591-06B00
Superseded by 16591-06B01
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG, OIL GALLERY
01550-08127
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT (8X12)
01550-08123
Superseded by 01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Unavailable |
|||
|
#34
PLUG, OIL GALLERY
09247-10008
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET
09168-10002
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
PLUG, OIL GALLERY
01550-06107
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
PLUG, OIL GALLERY
09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET
09168-16002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
.PLUG (14X12)
09247-14026
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#41
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#42
PLUG, OIL GALLERY
07120-08127
|
$1.09 | ||
|
Unavailable |
|||
|
#43
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Unavailable |
|||
|
#44
.PLUG
09259-20008
Superseded by 09259-20008-XC0
|
$9.41 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLUG,ENGINE OIL FILLER
11971-25D00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#45
O RING (D:3.1,ID:16.8)
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
PIPE, OIL GALLERY
11451-38A00
|
$21.23 | ||
|
Available to order. Add to View Price |
|||
|
#47
O RING (D:3.1,ID:14.8)
09280-15008
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, OIL GALLERY
07120-06123
Superseded by 07120-0612B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT
09106-06075
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
11461-38A00
|
$1.50 | ||
|
Unavailable |
|||
|
#50
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$27.59 | ||
|
Unavailable |
|||
|
#51
CAP
09250-06011
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
